Allen-Bradley Guardmaster MSR124RT Safety Relay 440R-G23110 Series A | 24V AC/DC | 5 NO Safety Outputs | Industrial Machine Safety Relay
Specification Details
Brand: Allen-Bradley
Product Family: Guardmaster / Minotaur
Product Type: Safety Monitoring Relay
Model: MSR124RT
Catalog Number: 440R-G23110
Series: A
Supply Voltage: 24V AC/DC
Frequency: 50/60 Hz
Power Consumption: 3 W
Safety Outputs: 5 NO
Auxiliary Output: 1 NC
Input Type : 1 NC / 2 NC / Light Curtain
Reset Mode: Automatic/Manual or Manual Monitored
Terminal Type: Fixed Screw Terminals
Contact Rating: AC-15 250V 4A; DC-13 24V 2A
UL Rating: B300, 6A
Ambient Temperature on Label: 55°C
Certifications/Markings: CE, cULus, TÜV
Application: Machine & Industrial Safety
Country Of Origin: Made In Germany
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | ALLEN BRADLEY |
|---|---|
| Category | RELAY |
The Allen-Bradley Guardmaster MSR124RT 440R-G23110 Series A Safety Relay is an industrial machine-safety monitoring relay designed for monitoring safety devices such as emergency-stop circuits, safety gates and light curtains.
The MSR124RT provides five electromechanical safety outputs along with an auxiliary output and supports single- or dual-channel safety inputs. Its configurable reset functionality allows automatic/manual or monitored manual reset configurations depending on the application and wiring arrangement.
This 24V AC/DC Allen-Bradley safety relay is suitable for industrial automation, machinery protection, production equipment, control panels and safety interlock applications where reliable safety circuit monitoring is required.

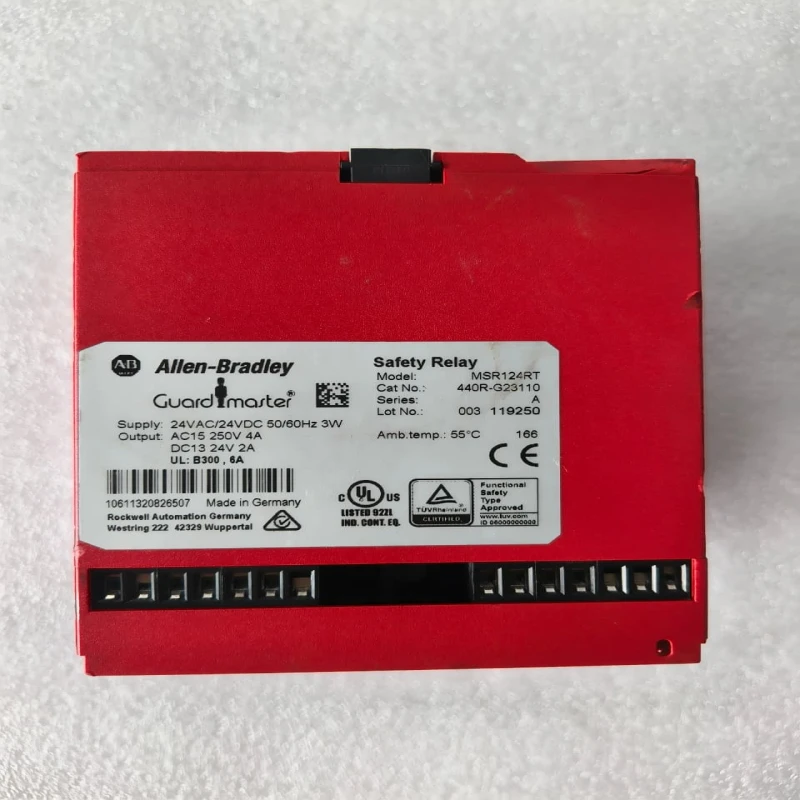

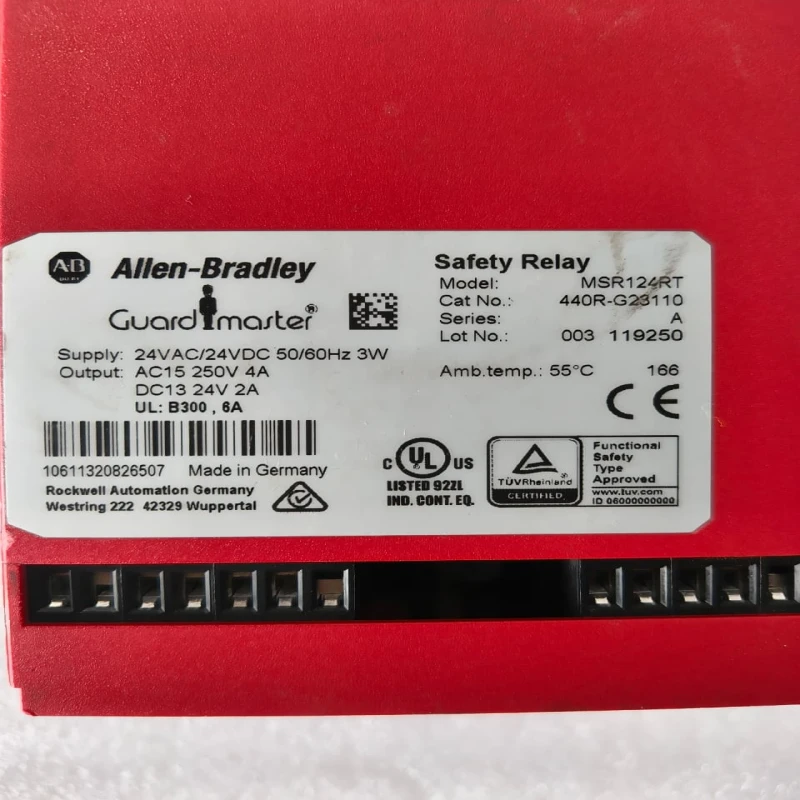

The product shown is marked MSR124RT, Cat. No. 440R-G23110, Series A, with 24VAC/24VDC 50/60Hz, 3W supply specifications. The label also shows AC-15 250V 4A, DC-13 24V 2A and UL B300, 6A contact ratings.
- Brand: Allen-Bradley / Rockwell Automation
- Product Family: Guardmaster / Minotaur Safety Relay
- Model: MSR124RT
- Catalog Number: 440R-G23110
- Series: A
- Supply Voltage: 24V AC/DC
- Safety Outputs: 5 Normally Open (5 NO)
- Auxiliary Output: 1 Normally Closed (1 NC)
- Input Configuration: 1 NC, 2 NC, or light curtain input
- Reset: Configurable automatic/manual or manual monitored reset
- Terminal Type: Fixed screw terminals
- Rated Supply: 24V AC/DC, 50/60 Hz, 3 W
- Country of Origin: Germany
- Applications: Emergency stop, safety gates, light curtains, machine safety circuits and industrial automation
- Certifications/Markings: CE, cULus and TÜV markings visible on the product label
