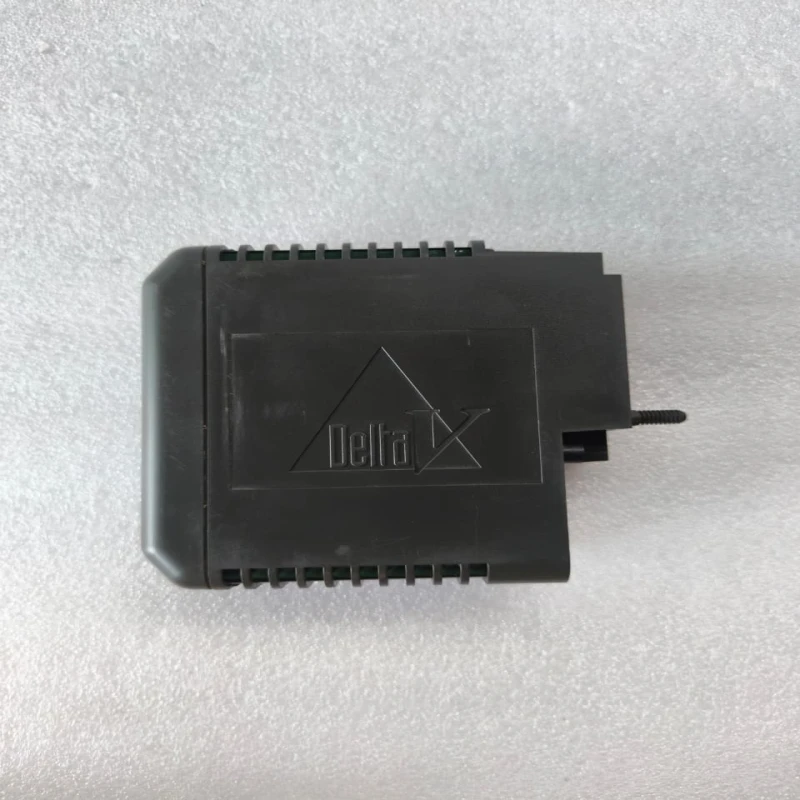

EMERSON KJ3202X1-BA1 Series 2 Discrete Output Module
Specification Details
Brand: Emerson / Fisher-Rosemount
Product Series: DeltaV M-Series
Part Number: KJ3202X1-BA1
Module Type: Discrete Output / Digital Output
Number of Channels: 8
Output Type: High-Side Discrete Output
Output Voltage: 24 VDC
Local Bus Power: 12 VDC at 150 mA
Bussed Field Power: 30 VDC at 3 A
Field Circuit Rating: 30 VDC, 1 A/channel, 3 A/card
Terminal Block Key: B6
Environmental Rating: IP20
Operating Temperature: Approx. -40°C to +70°C
Application: Industrial Process Control & Automation
System Compatibility: Emerson DeltaV
Mounting/Application: DeltaV I/O System
Typical Loads: Solenoids, alarms, actuators, discrete field devices
Country Of Origin: Made In Malaysia
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | EMERSON |
|---|---|
| Category | MODULE |
The Emerson KJ3202X1-BA1 is a DeltaV Series 2 Discrete Output Card designed for industrial process control and automation applications. It provides 8 channels of 24 VDC high-side discrete outputs, allowing DeltaV controllers to operate and control field devices such as solenoid valves, alarms, actuators and other discrete loads.
The KJ3202X1-BA1 is associated with Emerson DeltaV M-Series I/O architecture and is identified by alternate part numbers including 12P2536X032 and 12P2536X042 depending on the associated configuration/ordering variant.
The module is designed for dependable operation in industrial environments and provides a practical solution for upgrading, maintaining or replacing existing Emerson DeltaV control system hardware. Published specifications indicate a 12 VDC local bus supply of 150 mA, 30 VDC bussed field power up to 3 A, and field-circuit capability of 30 VDC, 1 A per channel / 3 A per card
- Brand: Emerson / Fisher-Rosemount
- Model: KJ3202X1-BA1
- System: Emerson DeltaV M-Series
- Module Type: Discrete / Digital Output Card
- Channels: 8 Digital Output Channels
- Output Type: 24 VDC High-Side
- Series: Series 2
- Designed for reliable control of discrete field devices in industrial process automation systems.
- Suitable for applications involving solenoids, alarms, actuators, motor starters and other DC field loads.
- Supports Simplex and Redundant DeltaV configurations.
