EMERSON KJ3221X1-BK1 DeltaV AO 8-Channel 4-20mA HART Card, 12P7043X082 Rev J, Fisher-Rosemount Analog Output Module
Specification Details
Brand: Emerson / Fisher-Rosemount
Manufacturer: Fisher-Rosemount Systems / Emerson Process Management
Part Number: KJ3221X1-BK1
Module Type: Analog Output (AO) HART Card
Number of Channels: 8
Output Signal: 4-20 mA
Communication Protocol: HART
System: Emerson DeltaV
LocalBus Power: 12 VDC, 150 mA
Bussed Field Power: 24 VDC, 200 mA
Field Circuit Rating: 24 VDC, 23 mA
Operating/Ambient Temperature: -40°C to +70°C
Revision: Rev J
Installation: Industrial Process Control / Automation

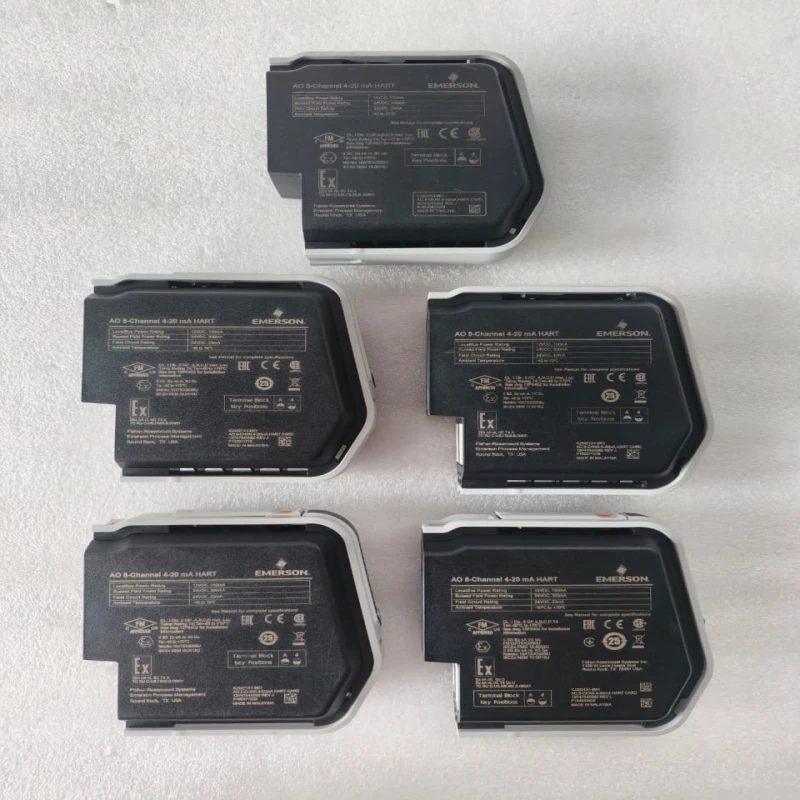

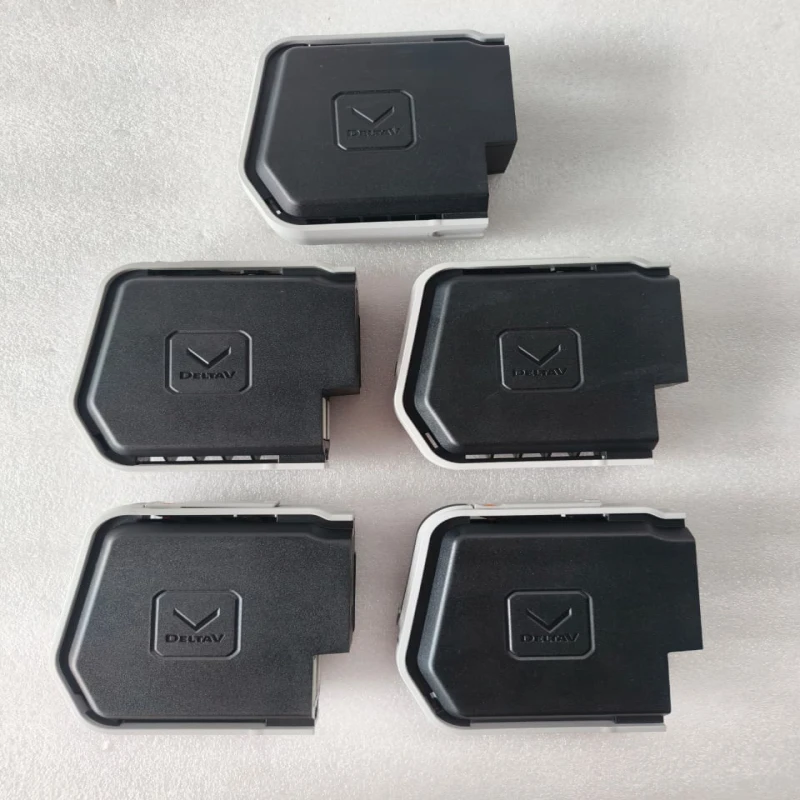

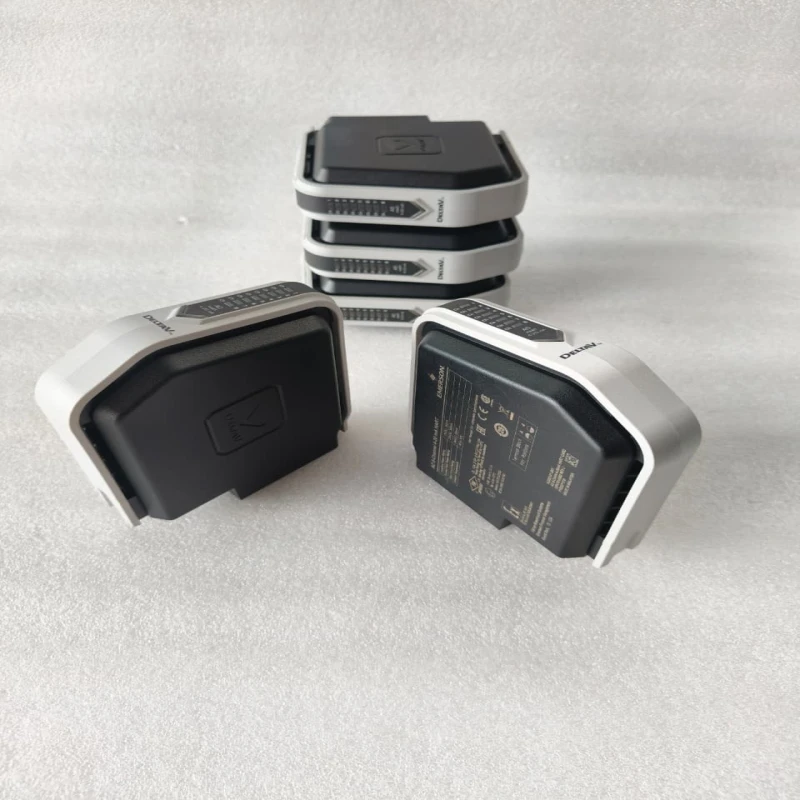

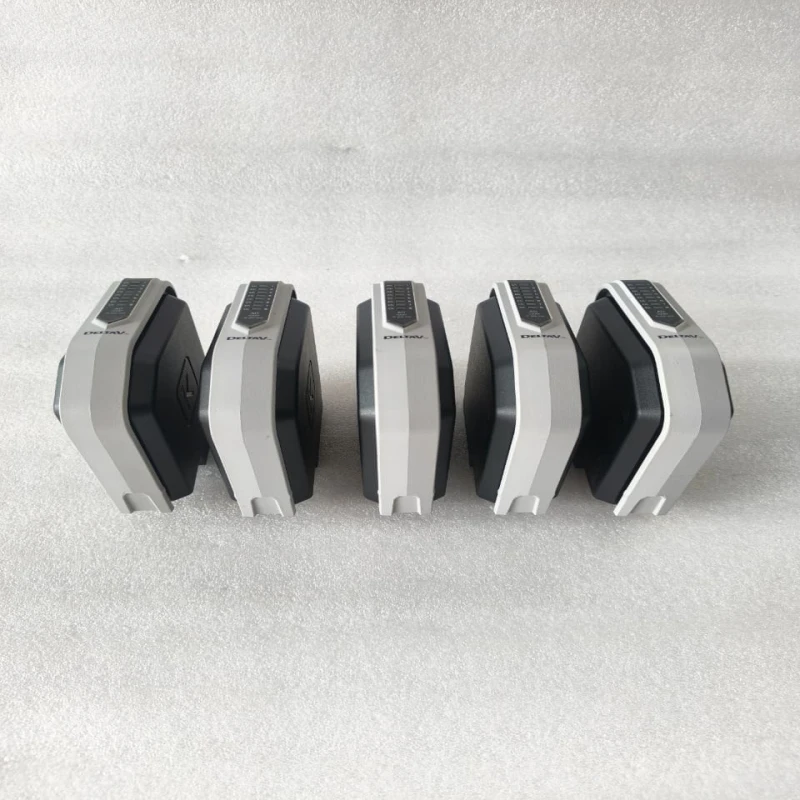

Condition Please refer to actual product photos for physical condition
Country Of Origin: Made In Malaysia
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | OTHER BRAND |
|---|---|
| Category | MODULE |
The Emerson KJ3221X1-BK1 AO 8-Channel 4-20mA HART Card is an industrial analog output module designed for use with Emerson DeltaV process automation and control systems. This Fisher-Rosemount analog output card provides 8 channels of 4-20 mA output with HART communication, making it suitable for transmitting reliable analog control signals to field devices such as control valves, actuators, positioners and other process instrumentation.
The KJ3221X1-BK1 is designed for demanding industrial process control, instrumentation and automation applications where dependable analog signal transmission and HART-enabled device communication are required.

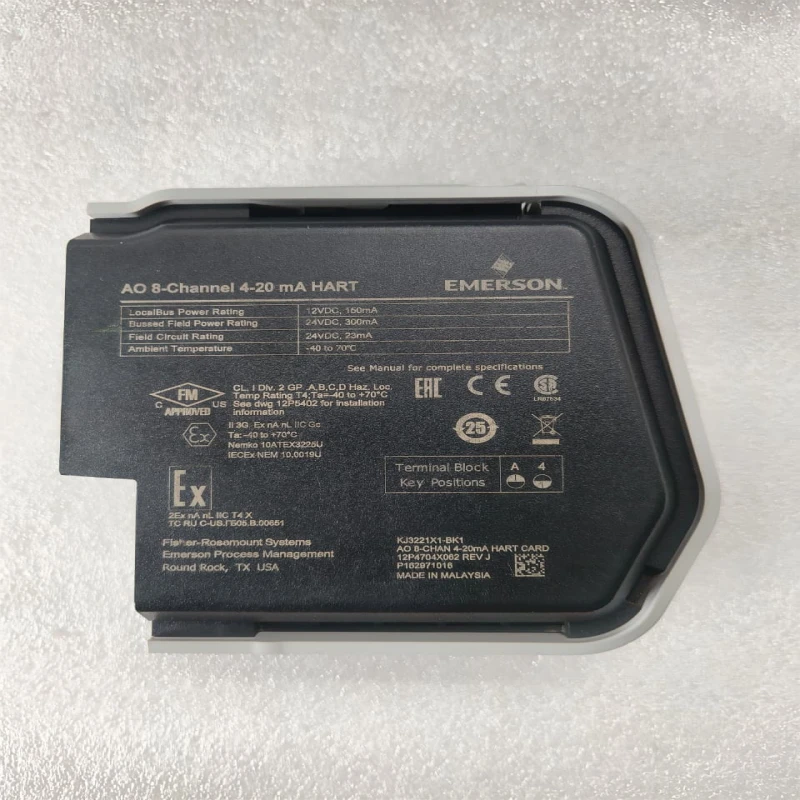

The module marking identifies it as “AO 8-Channel 4-20mA HART Card”, with 12P7043X082 Rev J and P162971016 shown on the product label. The unit is manufactured by Fisher-Rosemount Systems / Emerson Process Management and marked Made in Malaysia.
- rand: Emerson / Fisher-Rosemount
- Product Series: DeltaV S-Series
- Model: KJ3221X1-BK1
- Module Type: Analog Output (AO) Module
- Number of Channels: 8
- Output Signal: 4-20 mA
- Communication: HART
- Application: DeltaV Distributed Control System (DCS)
- Designed for precise analog control of field devices such as control valves, actuators and HART-enabled instruments
- Supports HART communication for enhanced device information and diagnostics
- Local bus power: 12 VDC at 150 mA
- Bussed field power: 24 VDC at 300 mA
- Field circuit specification: 24 VDC at 23 mA per channel
- Suitable for industrial process automation and control applications
- Emerson documentation confirms hazardous-area installation certifications when installed according to applicable instructions.
