EMERSON KJ3223X1-BA1 DeltaV AI 16-Channel 4-20mA HART Analog Input Card Series 2
Specification Details
Brand: Emerson / Fisher-Rosemount
Product Series: DeltaV Series 2
Model Number: TMO050381
Part Number: KJ3223X1-BA1
Product Type: Analog Input Card
Module Type: AI – Analog Input
Number of Channels: 16 Channels
Input Signal: 4-20mA
Communication: HART
Input Configuration: 2-Wire

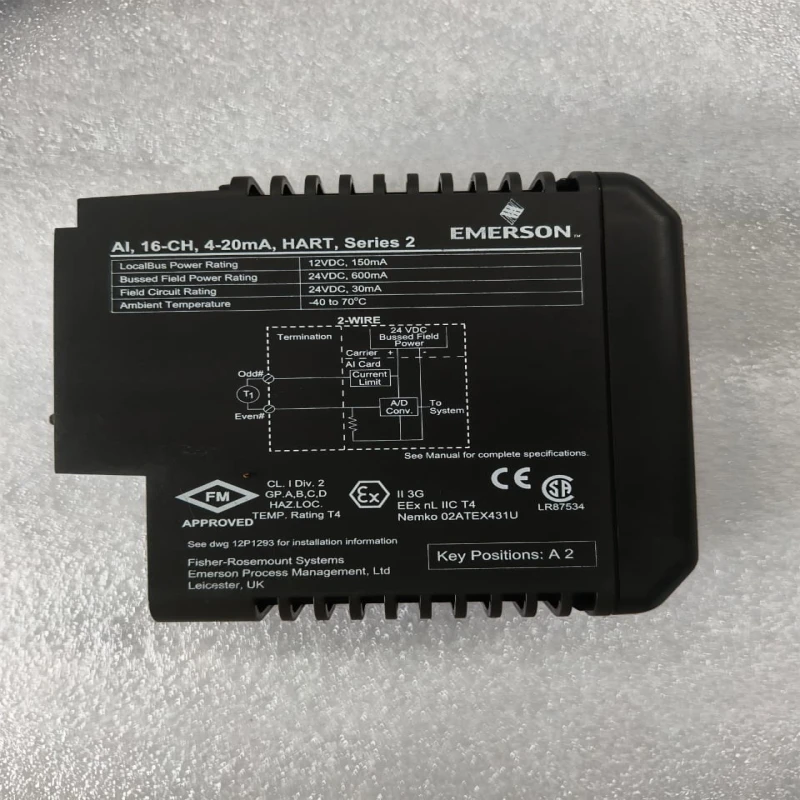

LocalBus Power: 12 VDC, 150 mA
Bussed Field Power: 12 VDC, 600 mA
Field Circuit: 24 VDC, approx. 32 mA/channel
Terminal Block Key: A2
Operating Temperature: -40°C to +70°C
Shock Rating: 10 g half-sine, 11 ms
Relative Humidity: 5-95%, non-condensing
Airborne Contaminants: ISA-S71.04-1985 Class G3
Hazardous Area Rating: Class I Division 2 / applicable certified configurations
ATEX: FM13ATEX0034U
IECEx: IECEx FMG 13.0015U
Application: Industrial Automation, Process Control, DCS
Compatible System: Emerson DeltaV
Country Of Origin: Made In Thailand

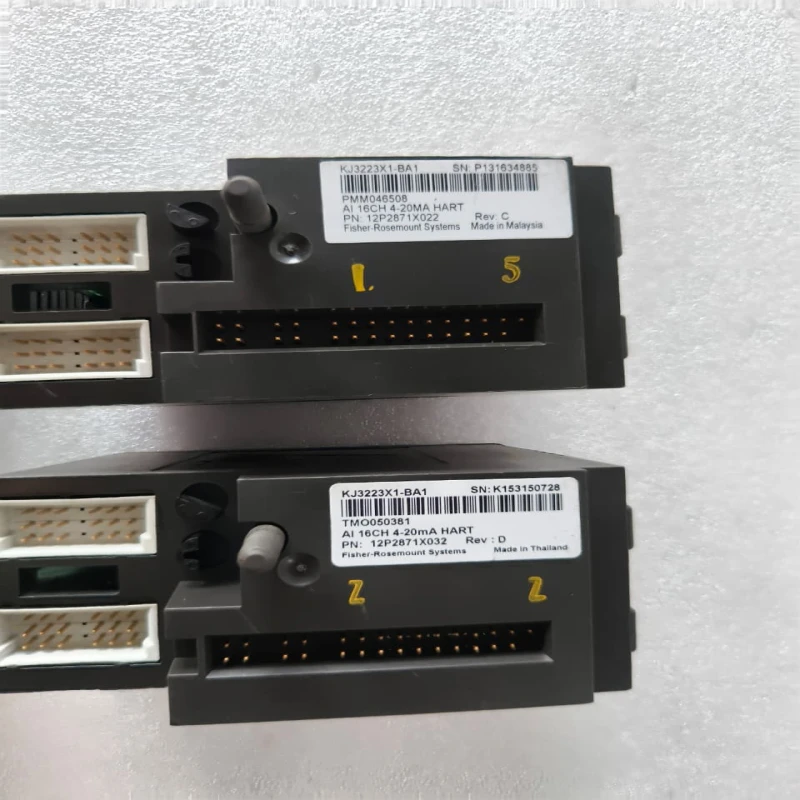

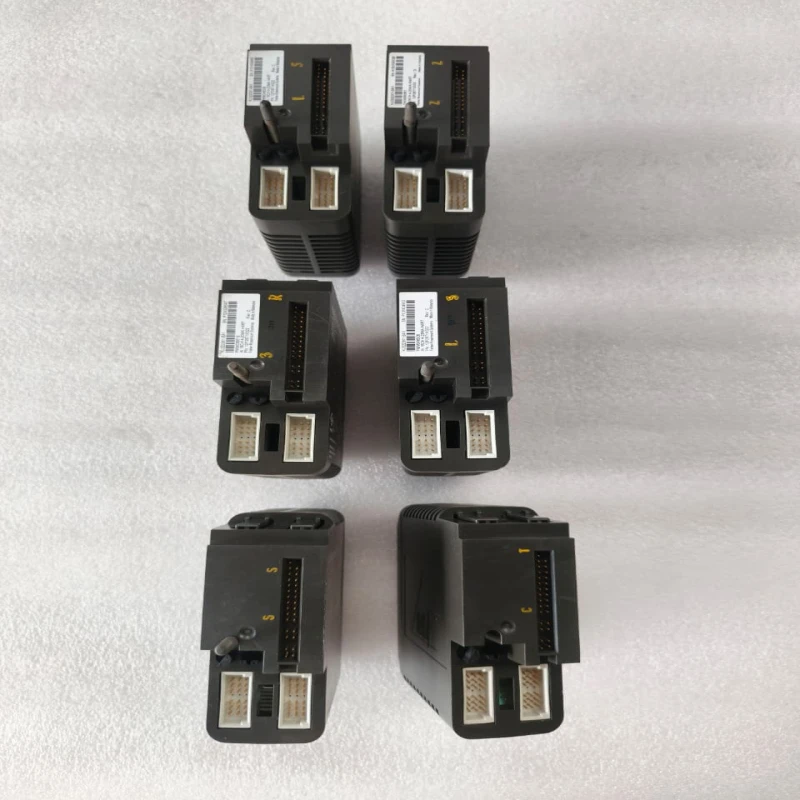

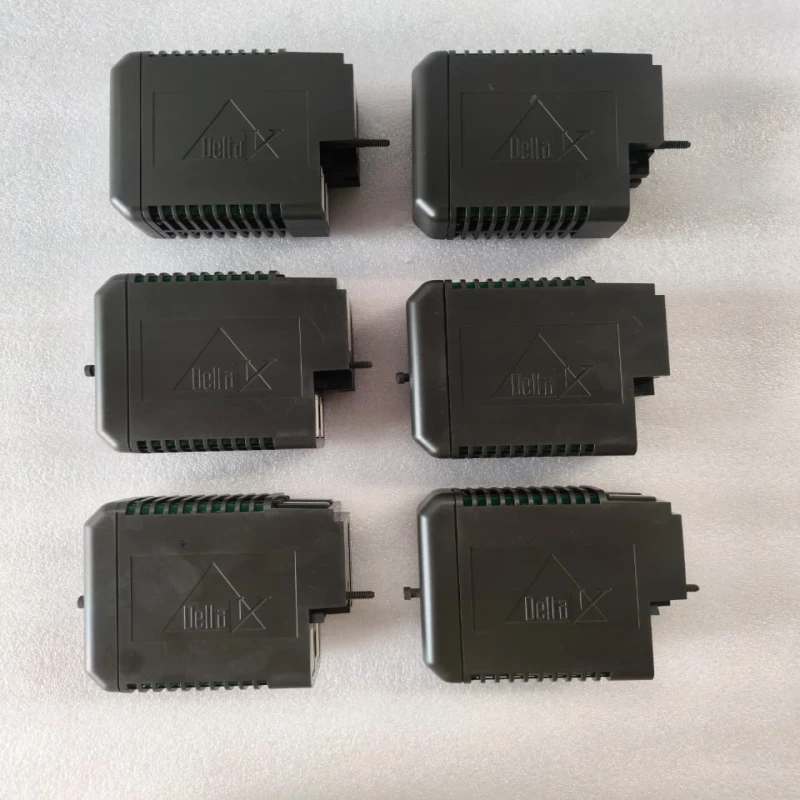

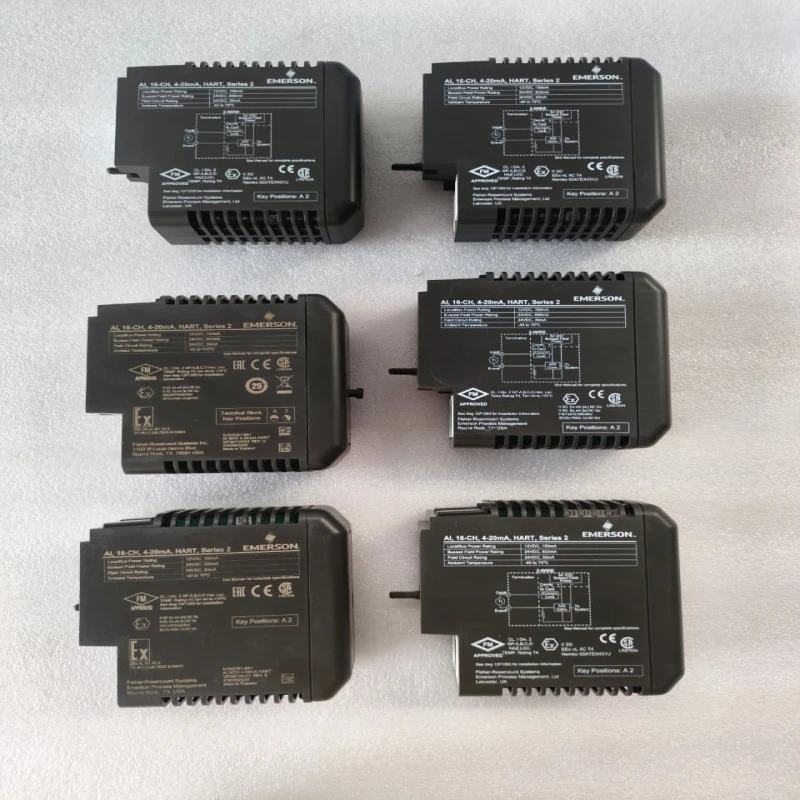

Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | OTHER BRAND |
|---|---|
| Category | MODULE |
The Emerson KJ3223X1-BA1 12P2871X032 is a DeltaV AI 16-Channel 4-20mA HART Series 2 Analog Input Card designed for industrial process automation and distributed control applications.
This Emerson Fisher-Rosemount analog input module provides 16 channels of 4-20mA analog input with HART communication, making it suitable for interfacing process instruments such as pressure transmitters, temperature transmitters, flow transmitters, level transmitters and other HART-enabled field devices with an Emerson DeltaV control system.
The KJ3223X1-BA1 supports 2-wire analog input signals and incorporates a rotary keying system for compatibility between the I/O card and associated terminal block. The technical documentation specifies a 12 VDC local bus power rating of 150 mA, 12 VDC bussed field power rating of 600 mA, and a 24 VDC field circuit rating of approximately 32 mA per channel.
The module is rated for an operating ambient temperature range of -40°C to +70°C, making it appropriate for demanding industrial environments. It also carries hazardous-area and industrial certifications indicated in the technical documentation, including FM13ATEX0034U and IECEx FMG 13.0015U.
Important: Field power should be removed before connecting or removing the module, and the module should not be inserted or removed while system power is energized.
- Genuine Emerson DeltaV KJ3223X1-BA1 Analog Input Module
- 16-channel Analog Input (AI) configuration
- Supports standard 4–20 mA process signals
- HART communication support for smart field devices
- Designed for DeltaV distributed control system (DCS) applications
- 16-bit analog-to-digital conversion for precise signal processing
- Channel-level optical isolation helps protect the control system from field-side electrical conditions
- Supports HART variable and field-device status reporting
- Suitable for industrial process monitoring, instrumentation and automation applications
- Ideal for integration with compatible Emerson DeltaV I/O systems
- Series 2 industrial automation I/O hardware
