Fisher-Rosemount KJ1501X1-BA2 System Power Supply (AC/DC)
Specification Details
Brand: Fisher-Rosemount Systems, Inc. / Emerson
Product Family: DeltaV
Part Number: KJ1501X1-BA2
Product Type: System Power Supply
Power Type: AC/DC
Input Voltage: 120 VAC / 230 VAC
Input Current: 0.34 A @ 120 VAC / 0.17 A @ 230 VAC
Output 1: 12 VDC, 2.1 A
Output 2: 5 VDC, 2.0 A
Output 3: 3.3 VDC, 0.5 A
Maximum Total Output: 25 W
5 VDC + 3.3 VDC Output: 10 W maximum
Ambient Temperature: Up to 60°C
Revision Shown: Rev N
Alternate Part Numbers: VE5001, 12P0677X032, 12P0677X042, 12P0677X062
Country Of Origin: Made In U.S.A.
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | OTHER BRAND |
|---|---|
| Category | POWER SUPPLY |
The Fisher-Rosemount KJ1501X1-BA2 DeltaV System Power Supply is an industrial AC/DC power supply module designed for use within Emerson Fisher-Rosemount DeltaV process automation systems. It provides multiple DC output rails required by compatible DeltaV system hardware.

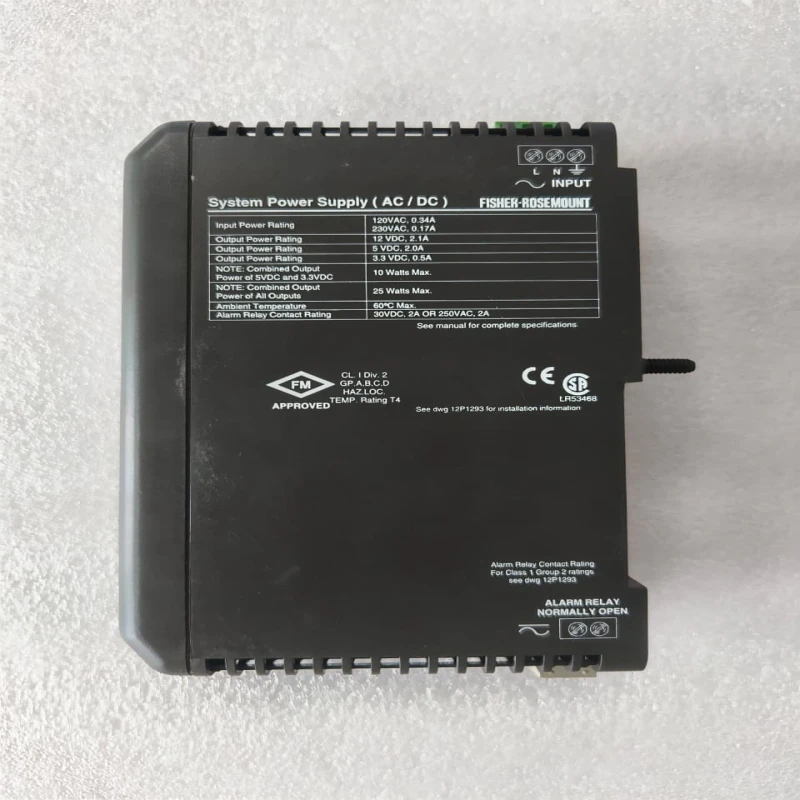

The KJ1501X1-BA2 accepts 120 VAC or 230 VAC input and provides 12 VDC, 5 VDC and 3.3 VDC outputs, with a maximum combined output power of approximately 25 W. The module is therefore suitable for industrial process control, distributed control system (DCS), automation and instrumentation applications where a compatible DeltaV system power supply is required.

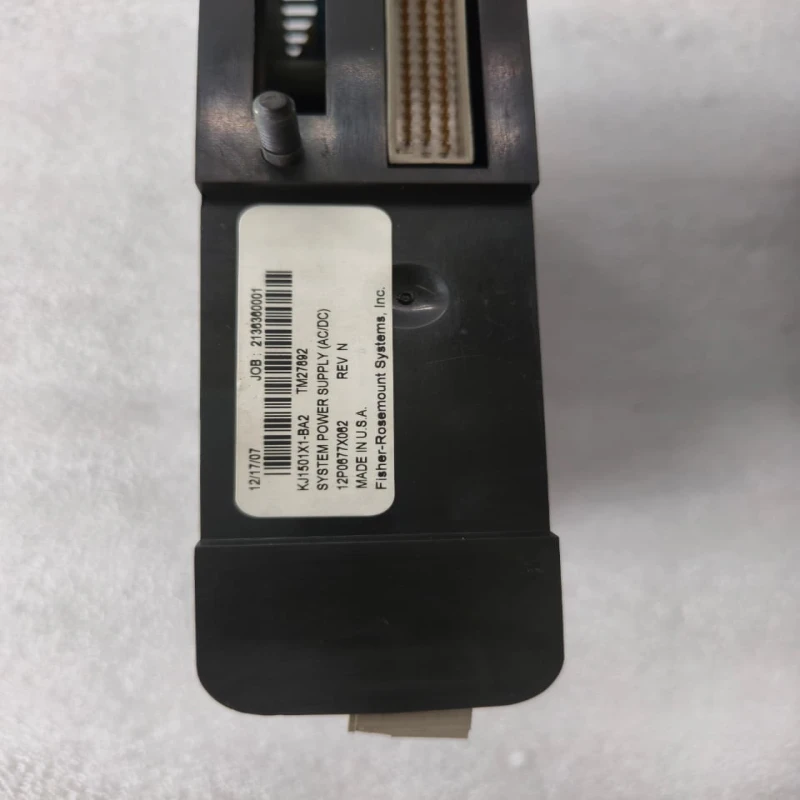

The unit shown in the supplied photograph is marked KJ1501X1-BA2, 12P0677X062, Rev N, and Fisher-Rosemount Systems, Inc. Always verify the part number, revision and electrical specifications against your existing DeltaV installation before replacement.
- Brand: Fisher-Rosemount / Emerson
- Model: KJ1501X1-BA2
- Platform: Emerson DeltaV
- Product Type: System Power Supply / Power Supply Module
- Power Input: AC
- Input Rating: 120 VAC, 0.34 A; 230 VAC, 0.17 A
- Outputs: 12 VDC, 5 VDC and 3.3 VDC
- 12 VDC Output: 2.1 A
- 5 VDC Output: 2.0 A
- 3.3 VDC Output: 0.5 A
- Maximum Total Output Power: 25 W
- 5 VDC + 3.3 VDC Maximum: 10 W
- Revision: Rev N
- Alternate/Related Part Numbers: 12P0677X032, 12P0677X042, 12P0677X062, VE5001
- Country Marking on Unit: Made in U.S.A.
