KEYENCE KV-MC40V 4-Axis Pulse Train Positioning Motion Control Module | 4 MHz Motion Unit
Specification Details
Brand: KEYENCE
Model Number: KV-MC40V
Product Category: PLC Positioning / Motion Control Module
Number of Control Axes: 4 axes + 1 virtual axis
Maximum Output Pulse: 4 MHz
Control Mode: Position Control
Control Period: 1.0 ms
Output Format: Differential Line Driver
Output Methods: 1-Pulse / 2-Pulse / A/B-Phase
CPU Compatibility: KV-8000 / KV-7500 / KV-7300 / KV-5500 / KV-5000 / KV-3000
Programming Method: Ladder Program / Motion Flow
Positioning Modes: Absolute / Relative
Interpolation: Straight-Line / Arc / Helical
Positioning Points: 800 points per axis
Acceleration/Deceleration: Straight-Line / SIN / Bezier
External Input: Photocoupler Input
External Output: Open Collector, 30 VDC 50 mA
5 V Power Output: 5 V ±5%, Max. 100 mA
Internal Current Consumption: Main Unit ≤180 mA; External I/O ≤130 mA
Approx. Weight: 225 g
Parameter Setting: KV-HPD1 / KV STUDIO / Ladder Program
Diagnostics: Hardware and Parameter Error Diagnosis
Data Backup: Flash ROM backup supported
Applications: Machine Automation, Servo Positioning, Packaging, Assembly, Robotics, Material Handling
Country Of Origin: Made In JAPAN

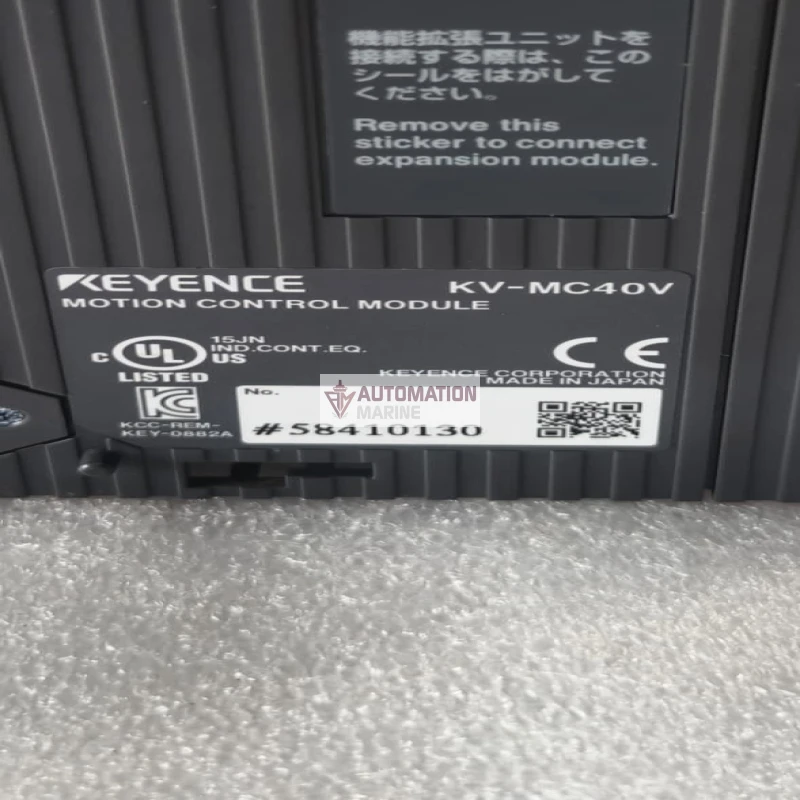

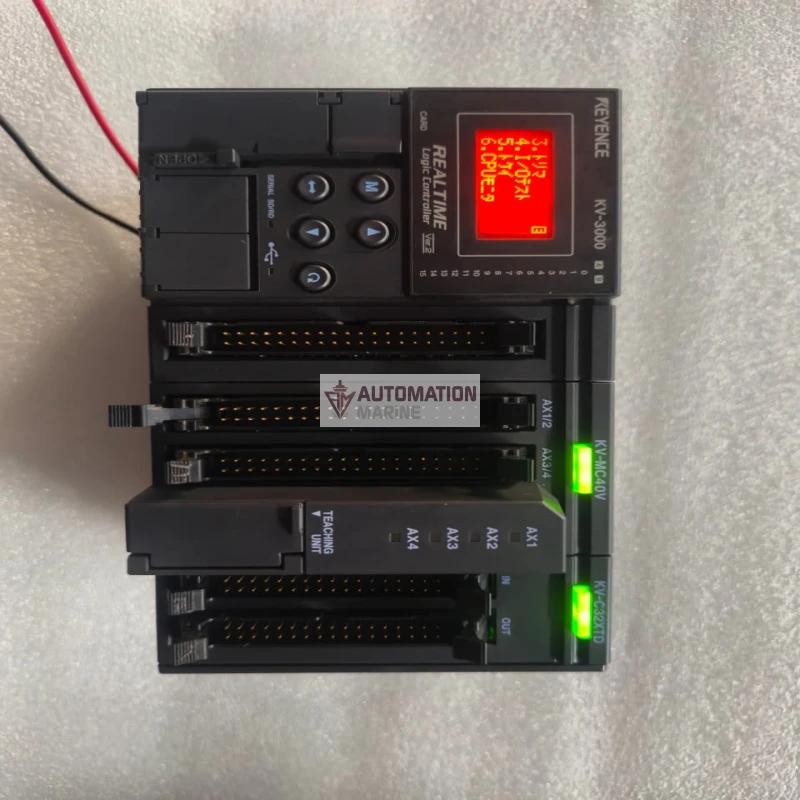

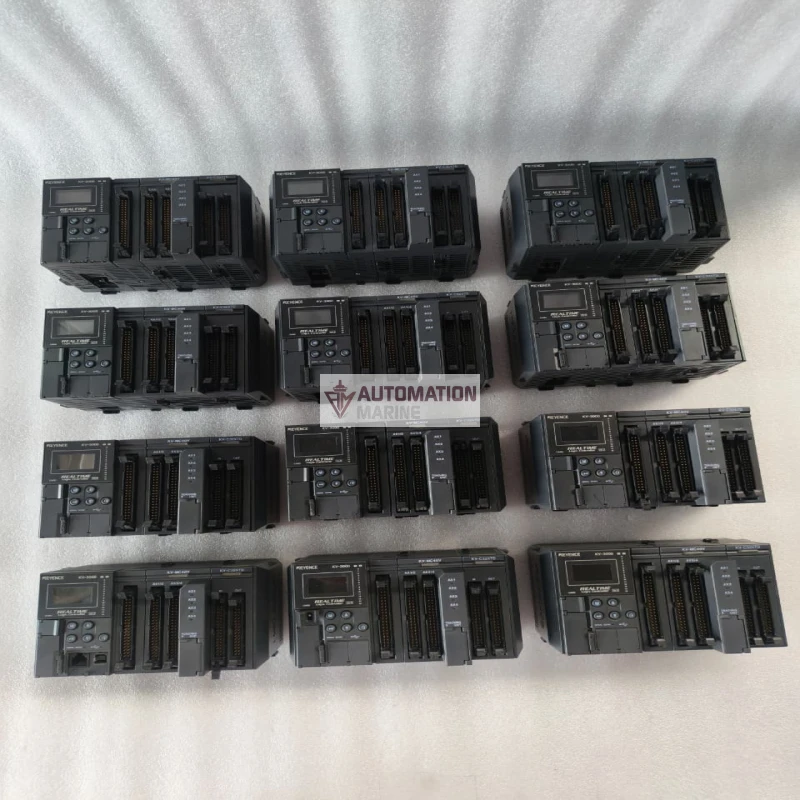

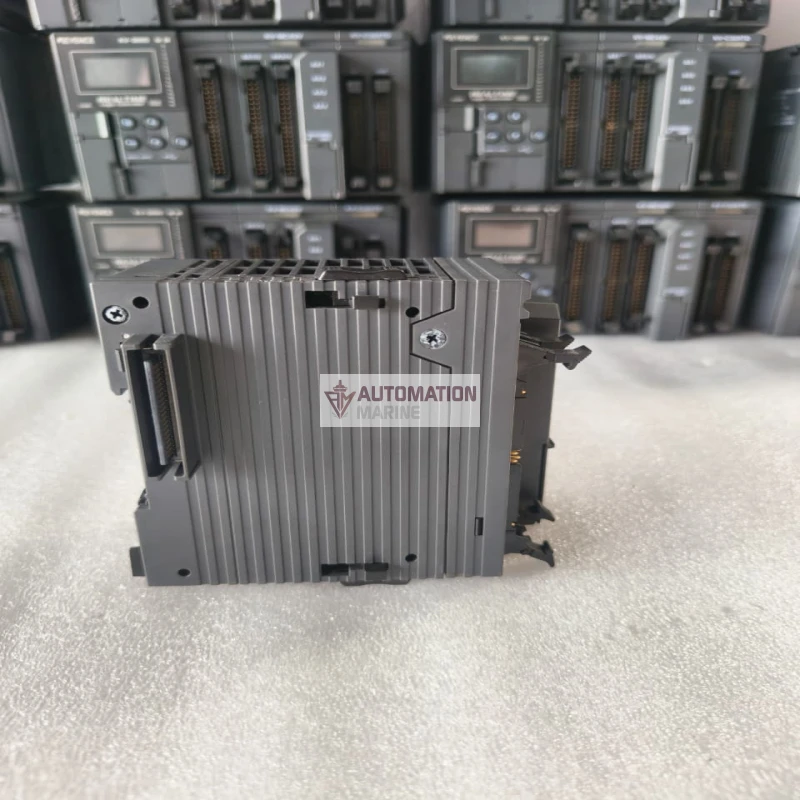

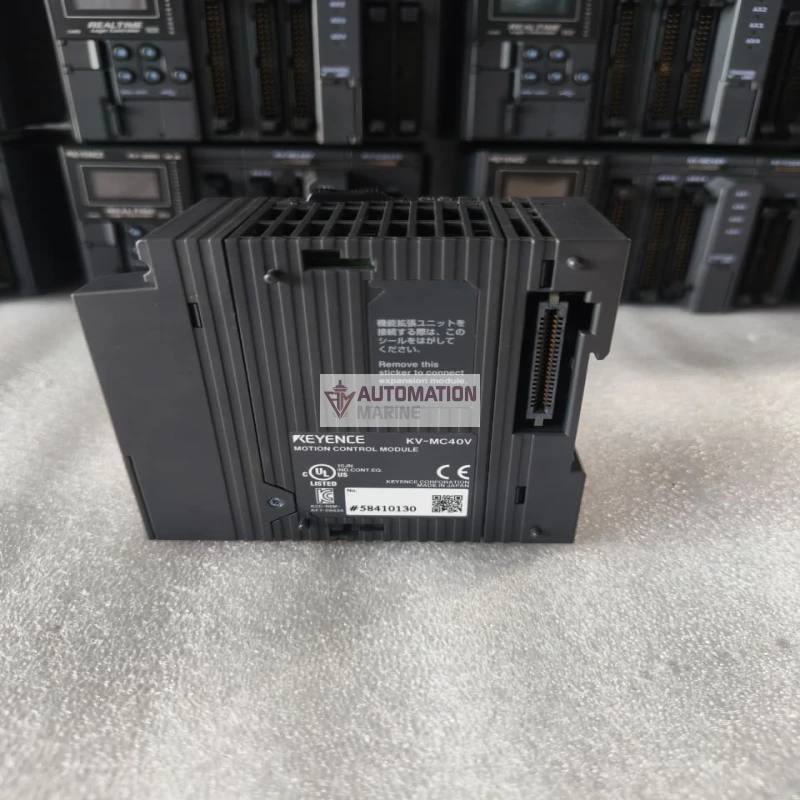

Condition:Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | KEYENCE |
|---|---|
| Category | MODULE |
The KEYENCE KV-MC40V 4-Axis Pulse Train Positioning Motion Control Module is a high-performance positioning and motion unit designed for precise multi-axis motion control within KEYENCE KV-series PLC systems. It provides control of four physical axes plus one virtual axis and supports pulse-train positioning with a maximum output pulse frequency of 4 MHz.
The KV-MC40V uses differential line-driver pulse output and allows selection between 1-pulse, 2-pulse and A/B-phase output methods, providing flexibility for connecting compatible motion and positioning equipment. Its 1.0 ms control period enables responsive positioning control for industrial automation applications.
Advanced motion functions include absolute and relative positioning, straight-line interpolation, arc interpolation, helical interpolation, JOG operation, inching, teaching, origin return and sensor positioning. Acceleration and deceleration can be configured using straight-line, SIN or Bezier curves.
The module can be programmed using ladder programs and Motion Flow, with support for up to 32 motion flows and 256 blocks in total. It also provides extensive diagnostic and data-backup functions, making the KV-MC40V suitable for machine automation, servo positioning, assembly equipment, material handling and other precision motion-control applications.
- Brand: KEYENCE
- Model: KV-MC40V
- Product Type: Positioning / Motion Control Unit
- Control Axes: 4 axes + 1 virtual axis
- Maximum Output Pulse: 4 MHz
- Control Mode: Position control
- Control Period: 1.0 ms
- Output Type: Differential line driver output
- Pulse Modes: 1-pulse, 2-pulse and A/B-phase selectable
- Programming: Ladder program and Motion Flow
- Interpolation: Straight-line, arc and helical interpolation
- Positioning: Absolute and relative positioning
- JOG / Inching: Supported
- Teaching Function: Supported
- Compatible KEYENCE CPU Units: KV-8000, KV-7500, KV-7300, KV-5500, KV-5000 and KV-3000
- External Input: Photocoupler input
- External Output: Open collector output, 30 VDC / 50 mA
- 5 V Output: 5 V ±5%, maximum 100 mA
- Approx. Weight: 225 g
