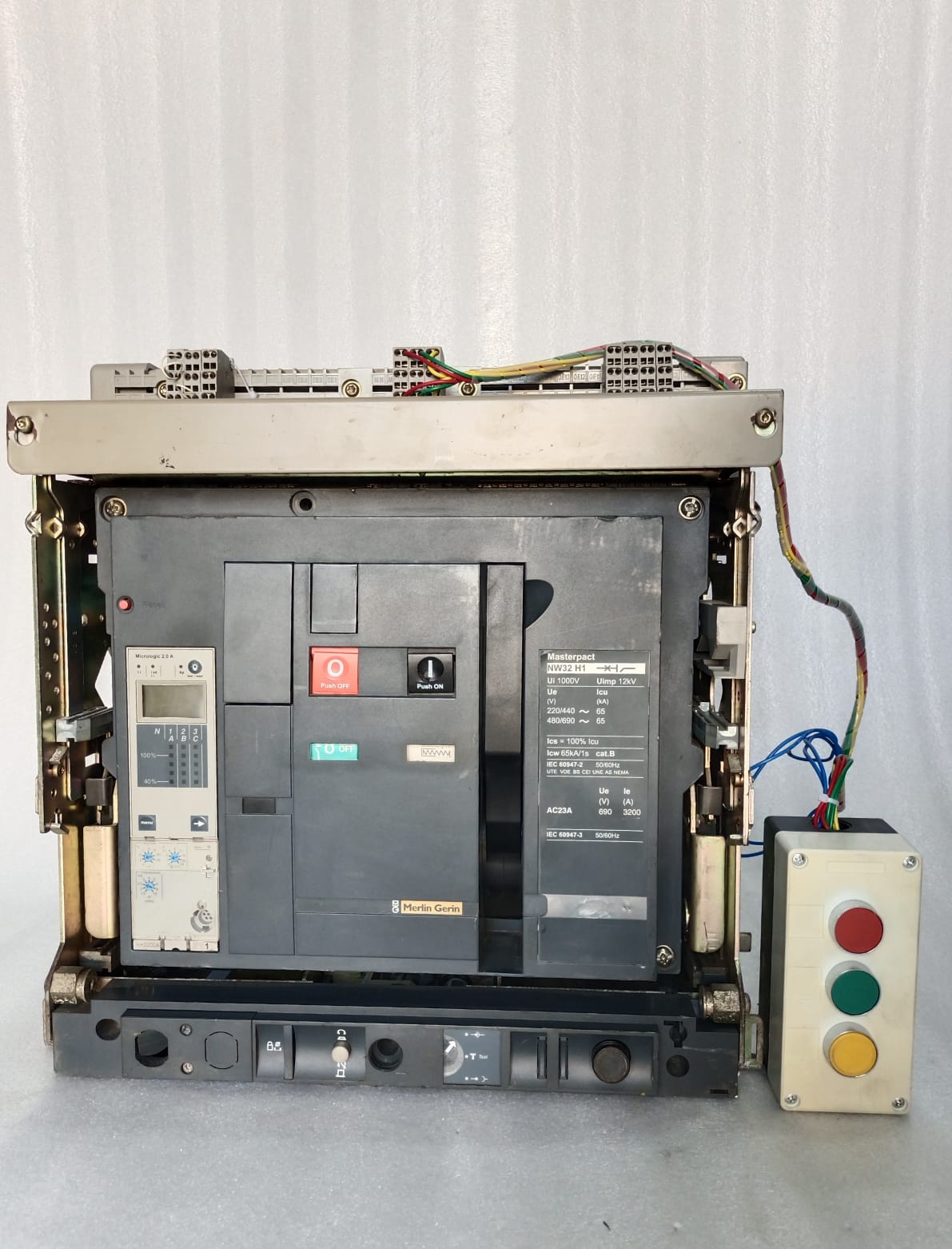

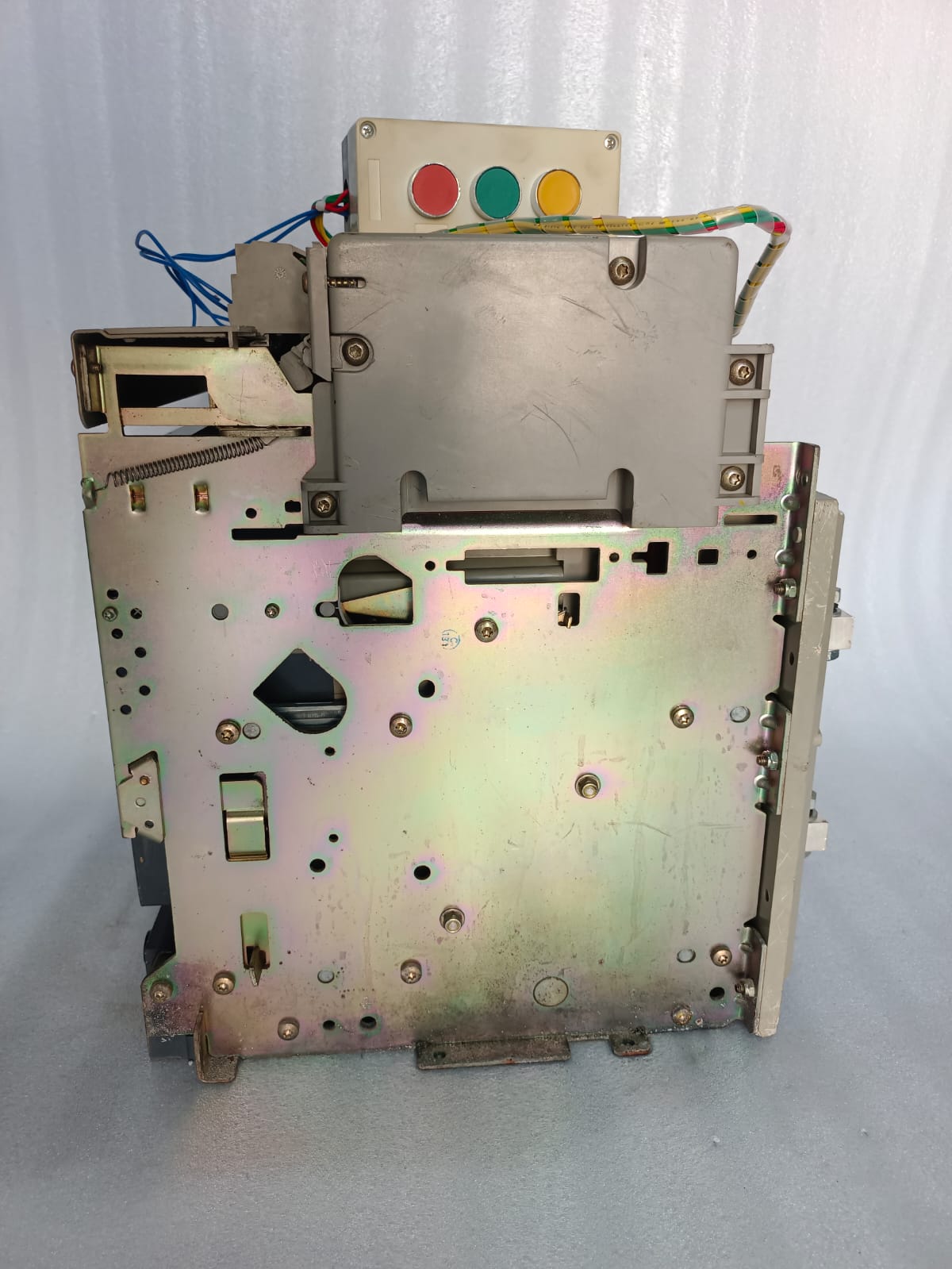

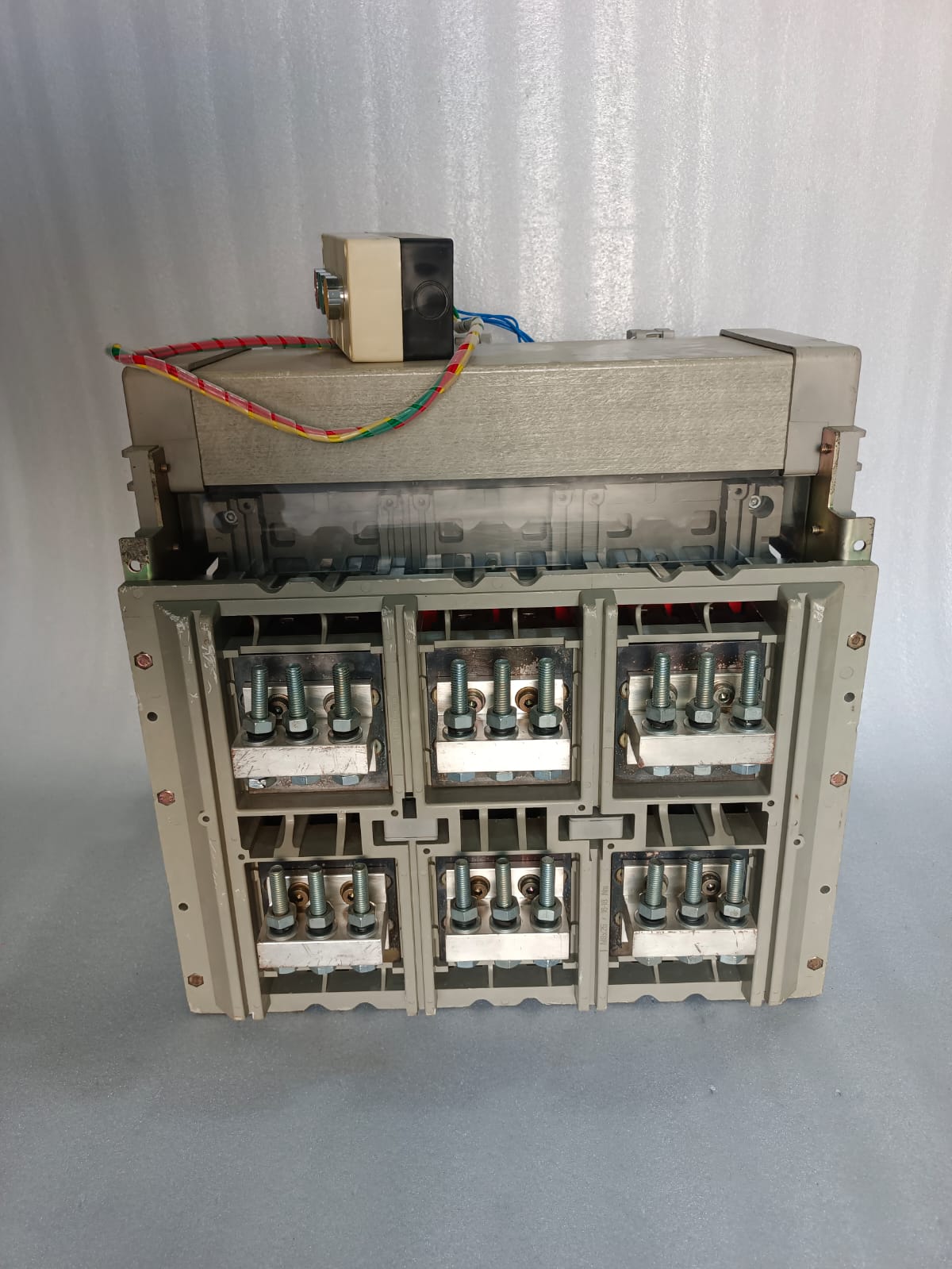

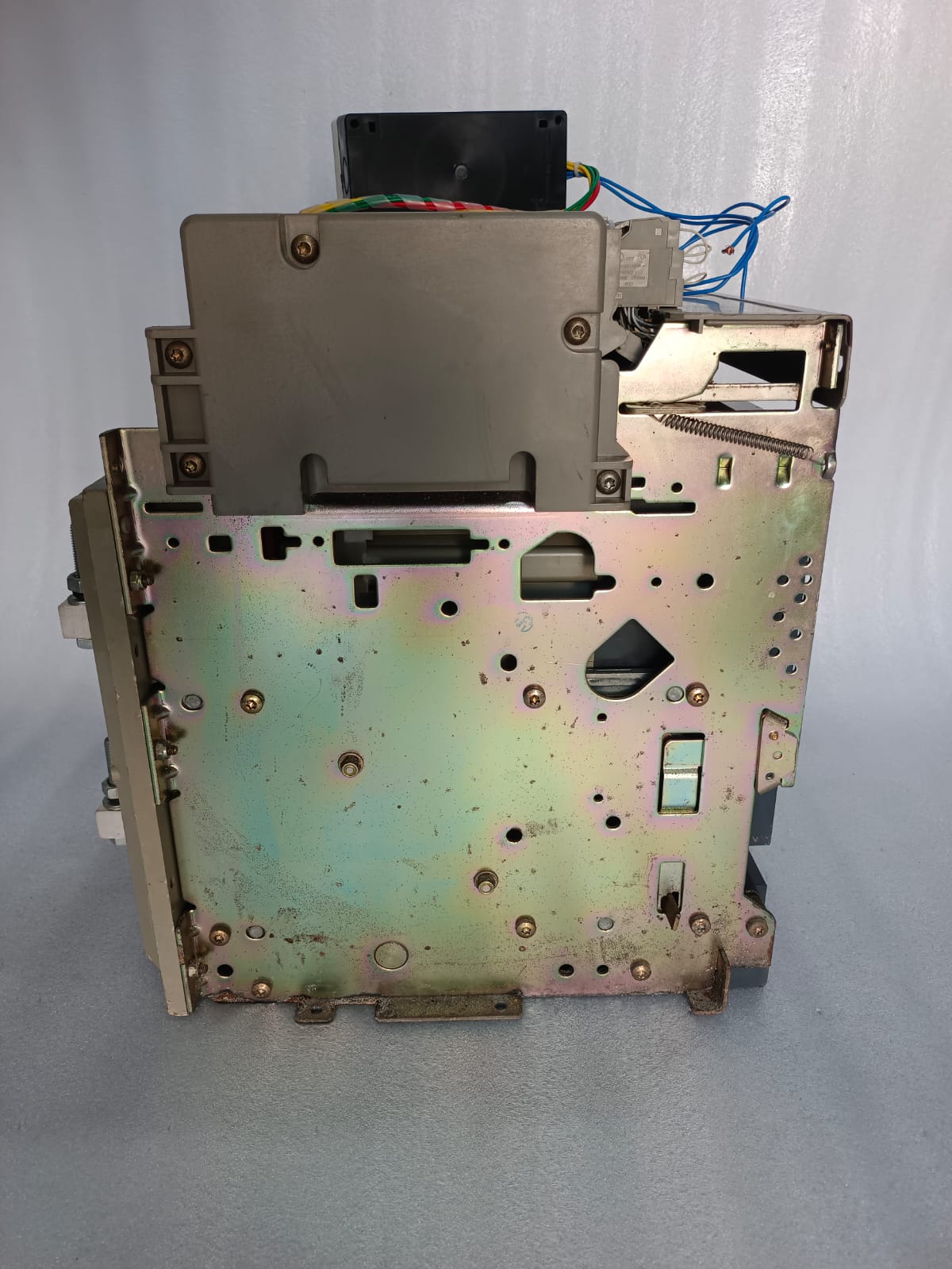

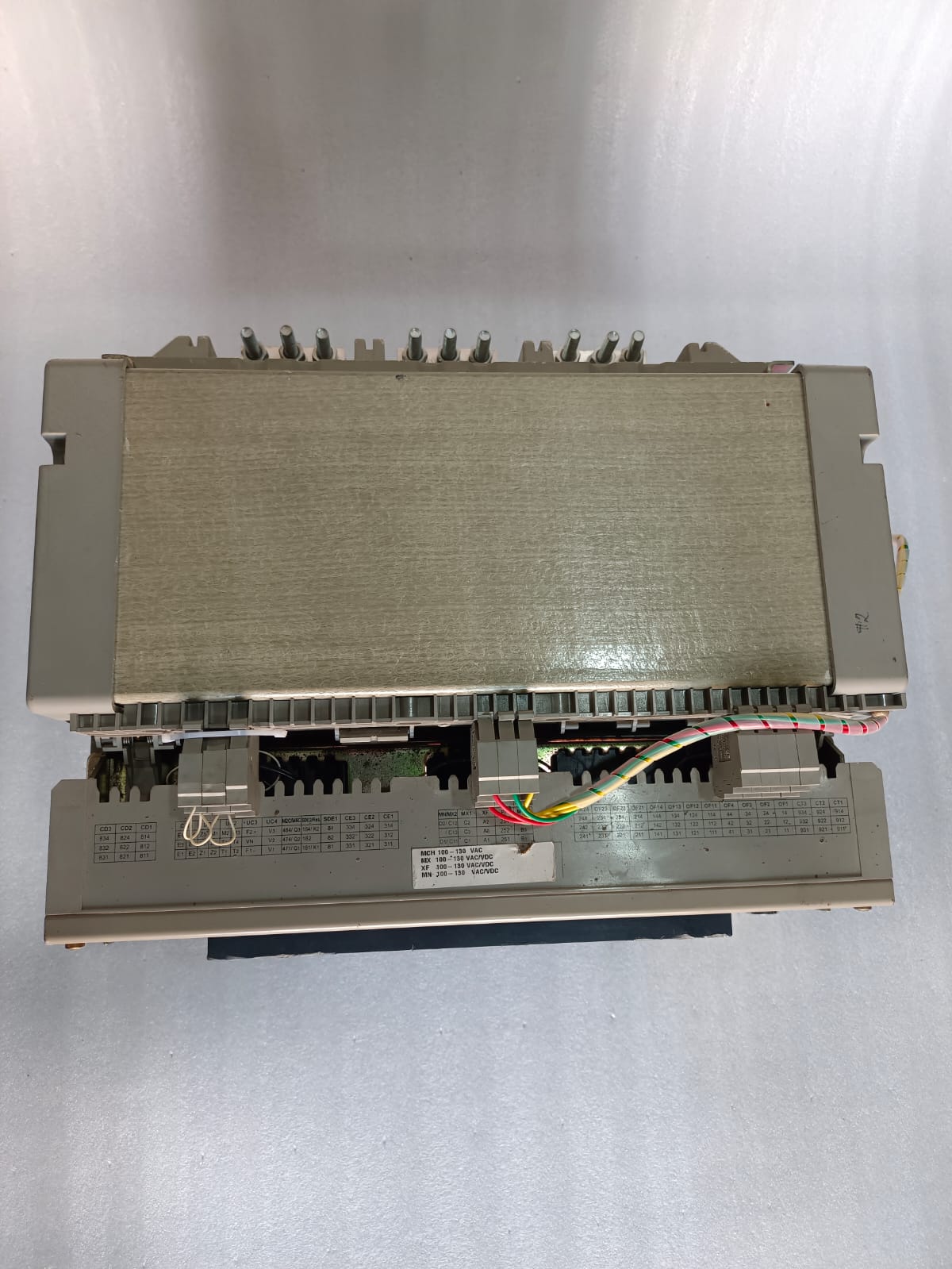

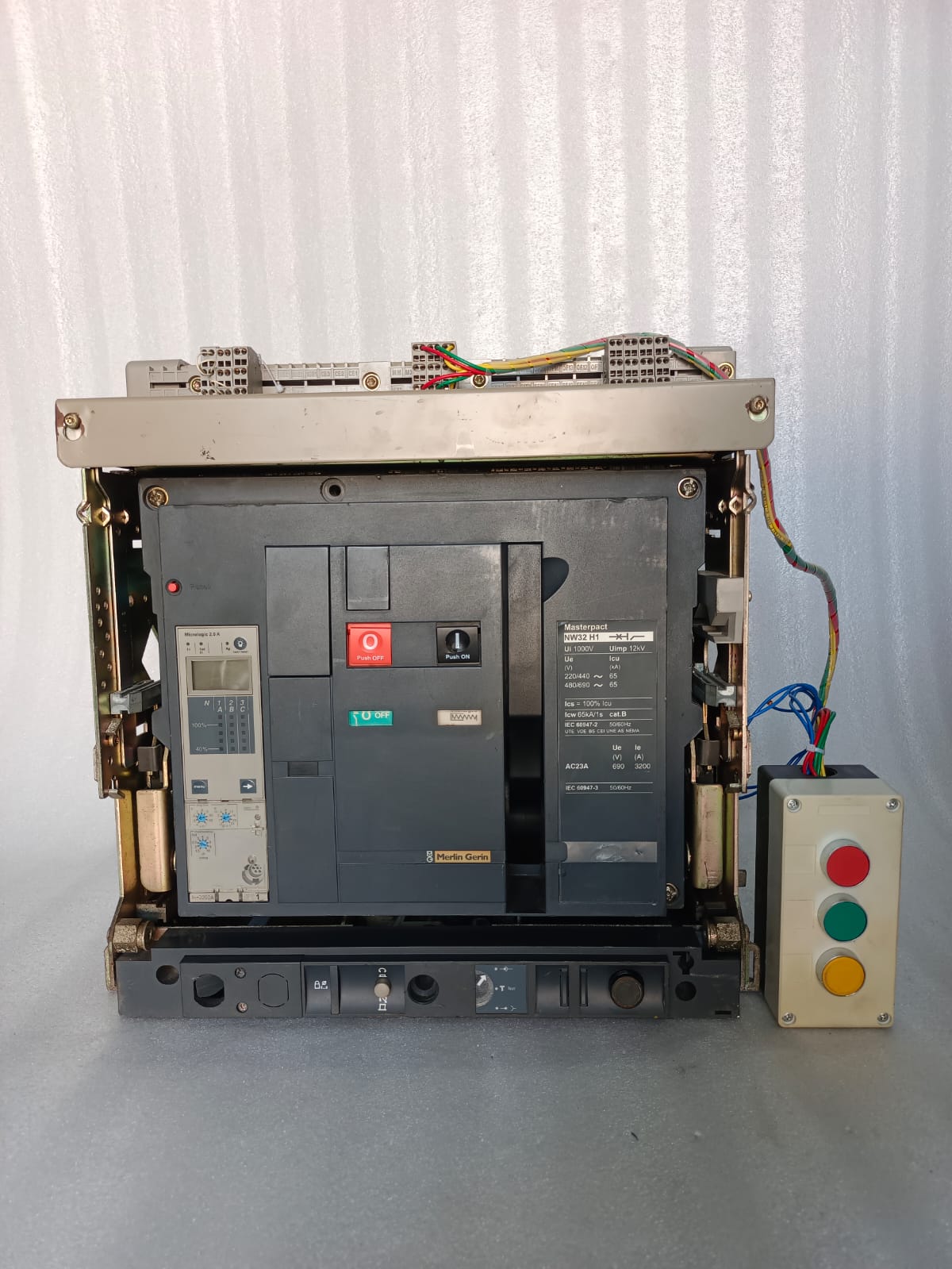

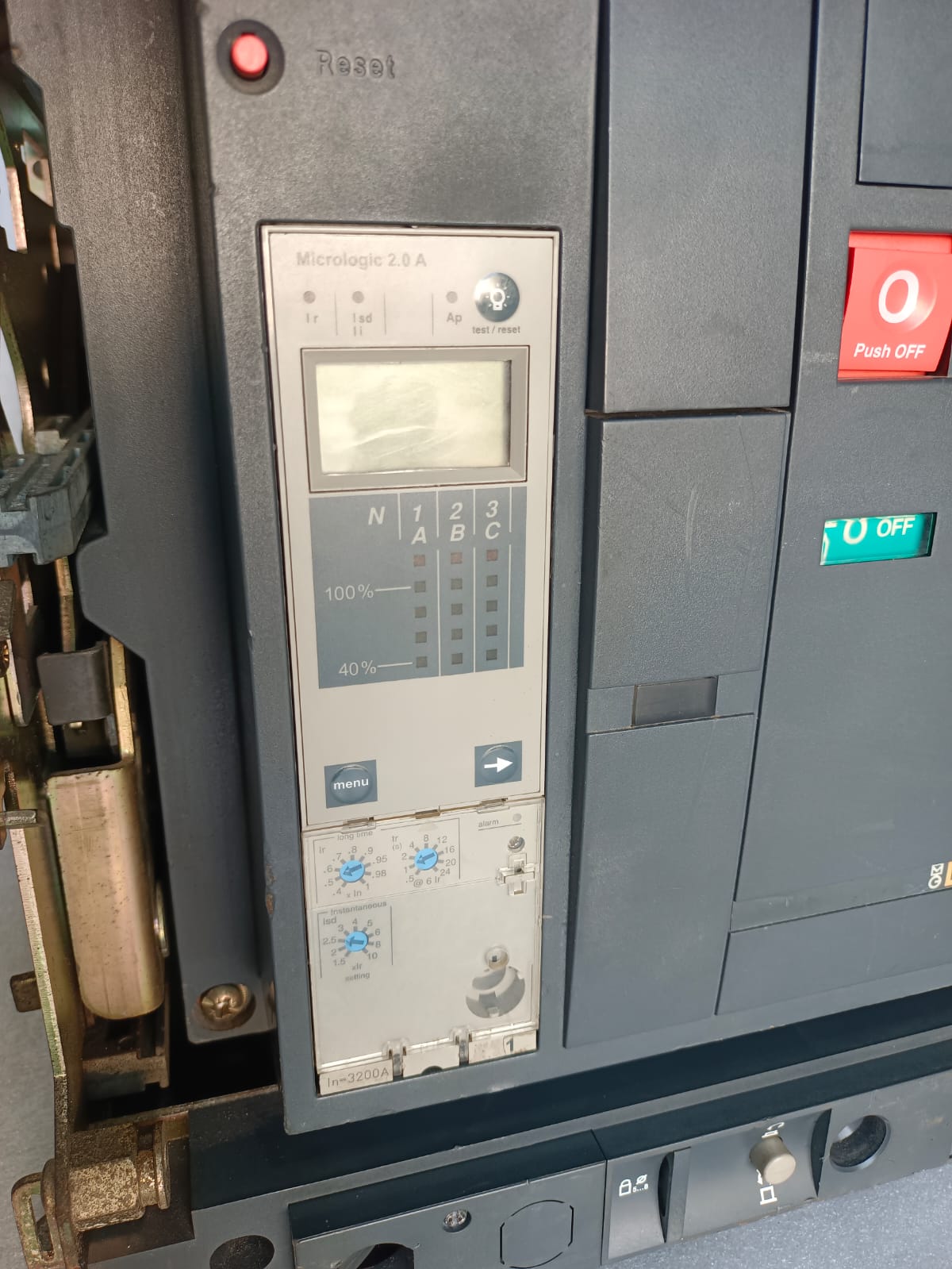

Schneider Merlin Gerin Masterpact NW32 H1 Air Circuit Breaker 3200A Drawout ACB with Micrologic Trip Unit
Parameter Details
Brand: Schneider Electric (Merlin Gerin Series)

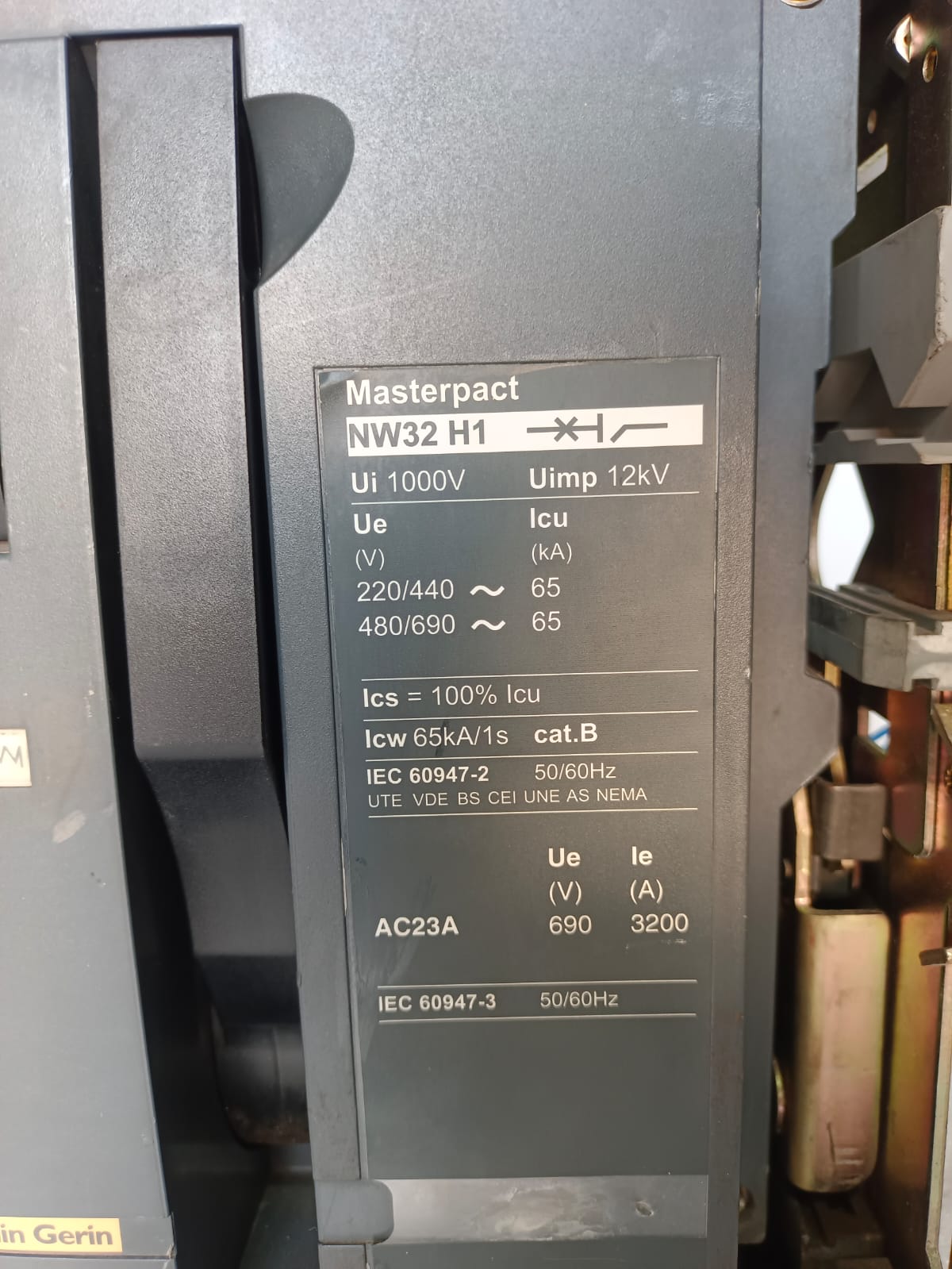

Model: Masterpact NW32 H1
Rated Current: 3200A
Mounting Type: Drawout / Withdrawable
Trip Unit: Micrologic Electronic Release
Poles: 3P / 4P options
Application: PCC Panel, LT Panel, Power Distribution
Condition: Refurbished / Used (as applicable)
Compliance: IEC Standards
Frequency: 50/60 Hz
Voltage Rating: Up to 690V AC
Status: Used Excellent Working (As per photos)
Country Of Origin: Made In FRANCE
Shipping: Fast & Safe Dispatch Across India & Worldwide.
| Brand | SCHNEIDER ELECTRIC |
|---|---|
| Category | AIR CIRCUIT BREAKER (ACB) |
- Rated Current: 3200 Amps
- Breaking Capacity: H1 – High Performance Short Circuit Rating
- Type: Drawout / Withdrawable Air Circuit Breaker
- Series: Masterpact NW (Merlin Gerin)
- Advanced Micrologic Electronic Trip Unit
- Suitable for LV Power Distribution Panels & PCC Panels
- High mechanical & electrical endurance
- Adjustable protection: Overload, Short Circuit, Earth Fault
- Ideal for industrial plants, utilities, and heavy-duty applications
- Robust arc chute design for enhanced safety
- Easy maintenance with withdrawable design
The Schneider Merlin Gerin Masterpact NW32 H1 Air Circuit Breaker is a premium-grade 3200A drawout ACB engineered for dependable low-voltage power distribution and protection in critical installations. Part of the renowned Masterpact NW range, this breaker integrates the intelligent Micrologic trip unit to deliver precise protection against overloads, short circuits, and earth faults.
Designed for PCC, MCC, and main LT panels, the NW32 H1 offers high breaking capacity and superior selectivity, ensuring continuity of service and equipment safety in demanding industrial environments. Its withdrawable construction allows quick servicing, reduced downtime, and safer operation during maintenance.
This ACB is widely used in manufacturing plants, commercial complexes, marine systems, data centers, and infrastructure projects where reliability and protection are non-negotiable.
