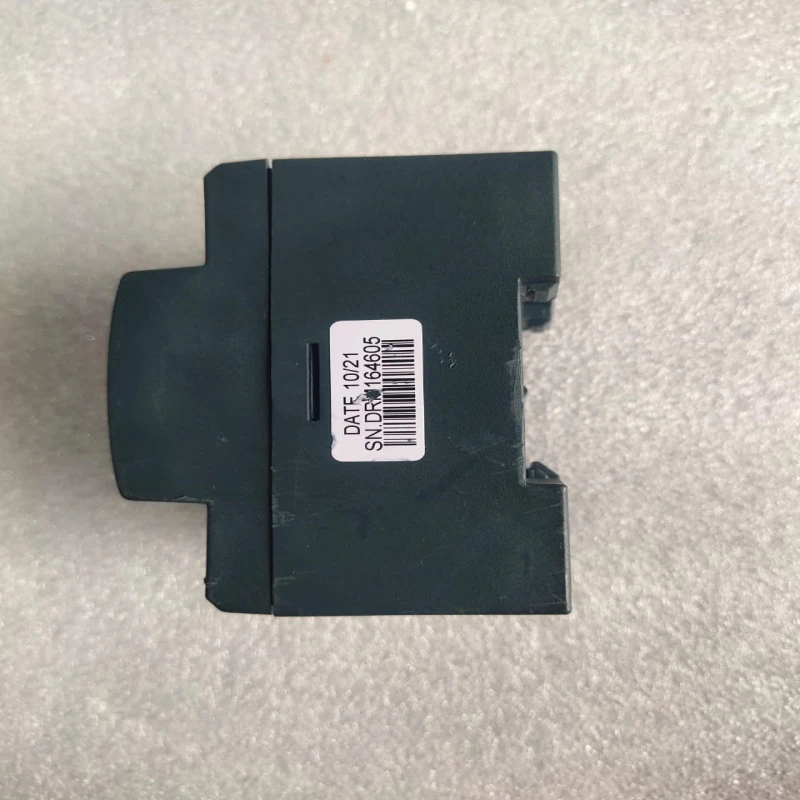

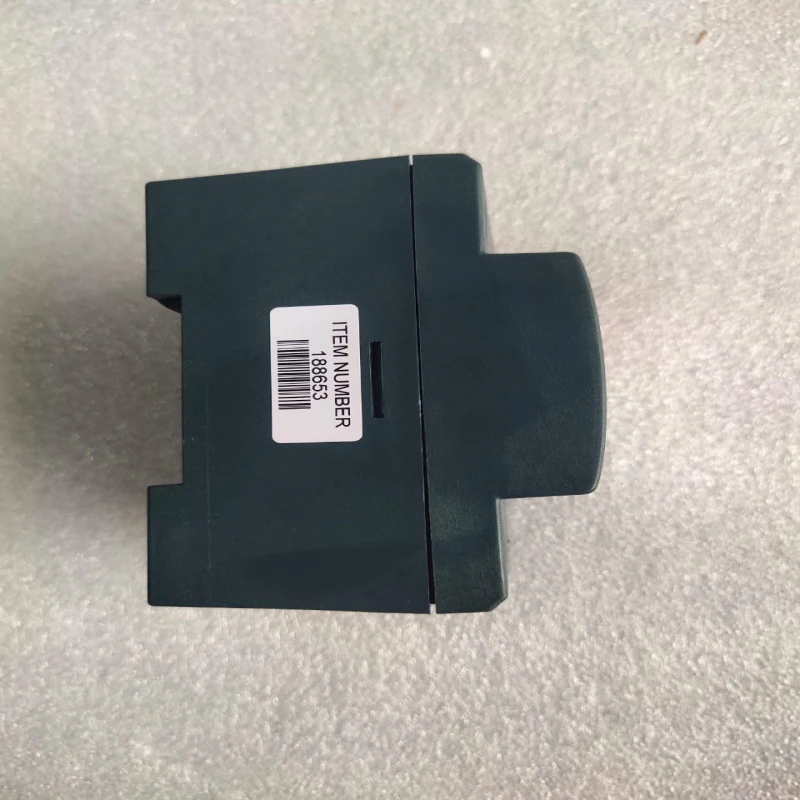

Raycap Strikesorb 30-B-DRM Surge Protection Device (SPD) | 240V AC | 50kA Type 2 Class II Lightning & Surge Protection Module
Specification Details
Brand: Raycap
Product Series: Strikesorb
Model: 30-B-DRM
Product Type: Surge Protection Device (SPD)
SPD Type: Type 2
Protection Class: Class II
Rated Voltage (VNOM): 240V AC
Maximum Continuous Operating Voltage (Uc/MCOV): 275V AC
Frequency: 50/60Hz
Nominal Discharge Current (In): 20kA
Maximum Discharge Current (Imax): 50kA (8/20µs)
Voltage Protection Rating (VPR): 1000V
Protection Level (Up): 1300V
SCCR: 100kA
Certifications: UL, CE
Standards: UL 1449 4th Edition, IEC 61643-11, EN 61643-11:2012
Mounting: Panel Mount
Application: Industrial Electrical Protection
Status: Used Excellent Working (As per photos)
Country Of Origin: Made In GREECE
Shipping: Fast & Safe Dispatch Across India & Worldwide Available.
| Brand | OTHER BRAND |
|---|---|
| Category | MODULE |
The Raycap Strikesorb 30-B-DRM Surge Protection Device (SPD) is a premium industrial surge protection module designed to safeguard sensitive electrical and electronic equipment from lightning strikes, switching surges, and transient overvoltages. Built with Raycap's advanced Strikesorb® technology, this Type 2/Class II SPD provides reliable protection for industrial power distribution systems, automation panels, communication equipment, renewable energy installations, and mission-critical electrical infrastructure.
Rated for 240V AC systems with a 275V AC MCOV, the Strikesorb 30-B-DRM delivers a 20kA nominal discharge current and 50kA maximum surge current, ensuring superior protection against high-energy surge events. Its maintenance-free construction, high short-circuit current rating, and compliance with international standards make it a trusted solution for industrial and commercial applications.
Designed for long service life and dependable performance, this surge protection device helps minimize downtime, reduce equipment failures, and extend the lifespan of valuable electrical assets.
- Brand: Raycap
- Model: Strikesorb 30-B-DRM
- Type: Type 2 Surge Protection Device (SPD)
- Protection Class: Class II
- Nominal Voltage (VNOM): 240V AC
- Maximum Continuous Operating Voltage (MCOV/Uc): 275V AC
- Nominal Discharge Current (In): 20kA
- Maximum Discharge Current (Imax): 50kA (8/20µs)
- Voltage Protection Level (Up): 1300V
- Voltage Protection Rating (VPR): 1000V
- Frequency: 50/60Hz
- SCCR: 100kA
- Standards: UL 1449 4th Edition, IEC 61643-11, EN 61643-11:2012
- Application: Industrial Control Panels, Power Distribution Systems, Automation Equipment, Telecom, Renewable Energy Systems
- High-Energy Surge Protection Technology
- Compact & Maintenance-Free Design
- CE and UL Certified
