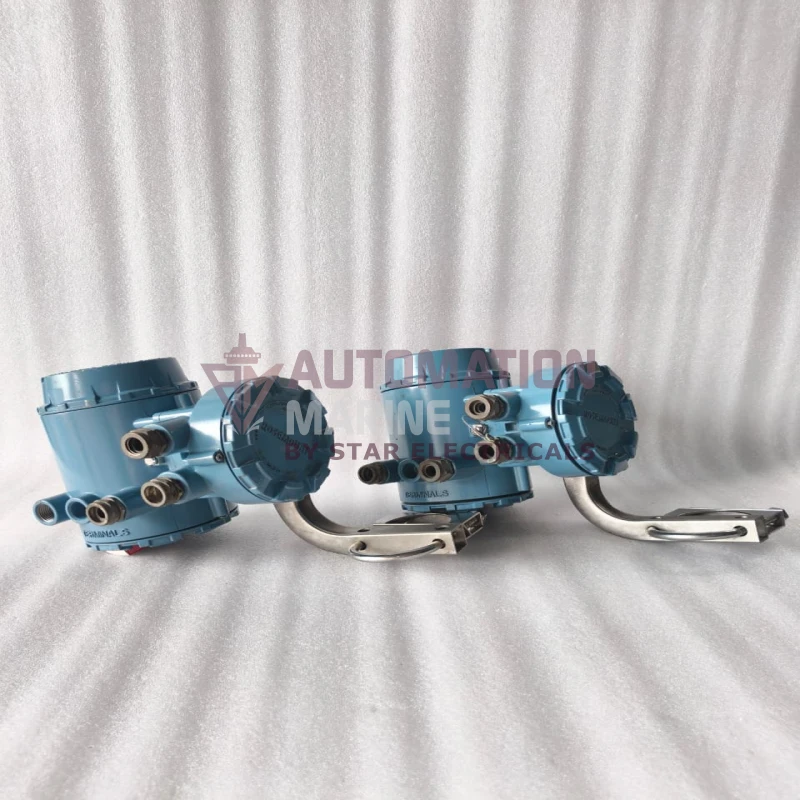

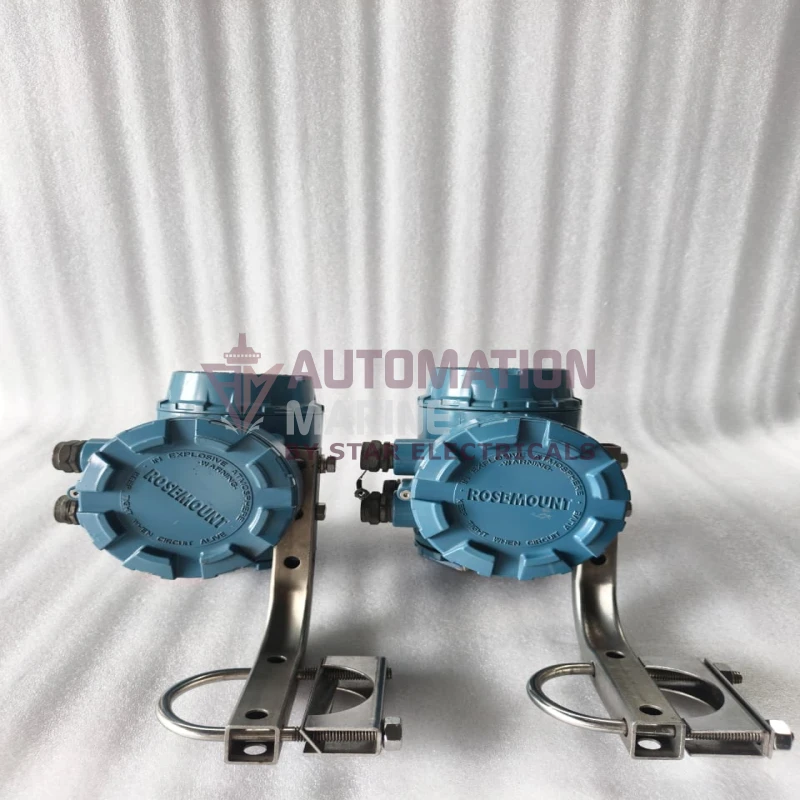

Rosemount 8750W Magnetic Flowmeter Transmitter 8750WDMR1A1FNSA015SA1M4, 90–250 VAC, 4–20 mA HART, Pulse Output, IP66
Specification Details
Brand: Rosemount
Manufacturer: Rosemount
Product Series: Rosemount 8750W
Product Type: Magnetic Flowmeter Transmitter
Part Number: 8750WDMR1A1FNSA015SA1M4
Transmitter Type: Electromagnetic / Magnetic Flow
Mounting: Remote Mount
Power Supply: 90–250 VAC
Frequency: 50/60 Hz
Supply Current: 0.45 A
Power Consumption: 40 VA
Analog Output: 4–20 mA
Communication: HART
Pulse Output: Scalable Pulse
Pulse Frequency: 0–10,000 Hz
Display / Operator Interface: M4 Local Operator Interface
Enclosure Protection: IP66
Ambient Temperature: -29°C to +60°C
Application: Flow Measurement
Typical Media: Conductive liquids
Applications: Water, Wastewater, Utilities, Industrial Process Control

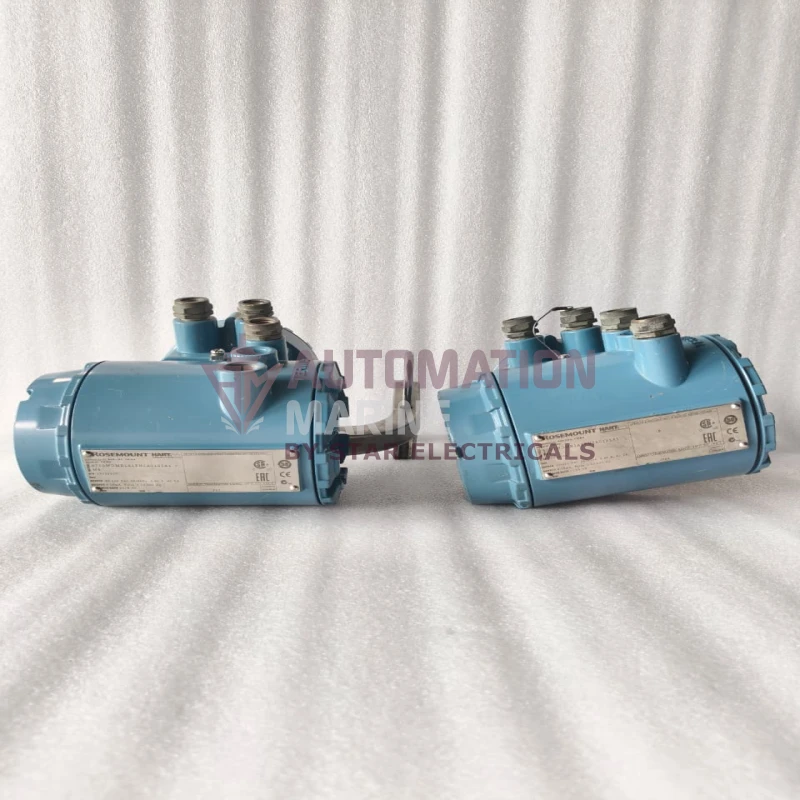

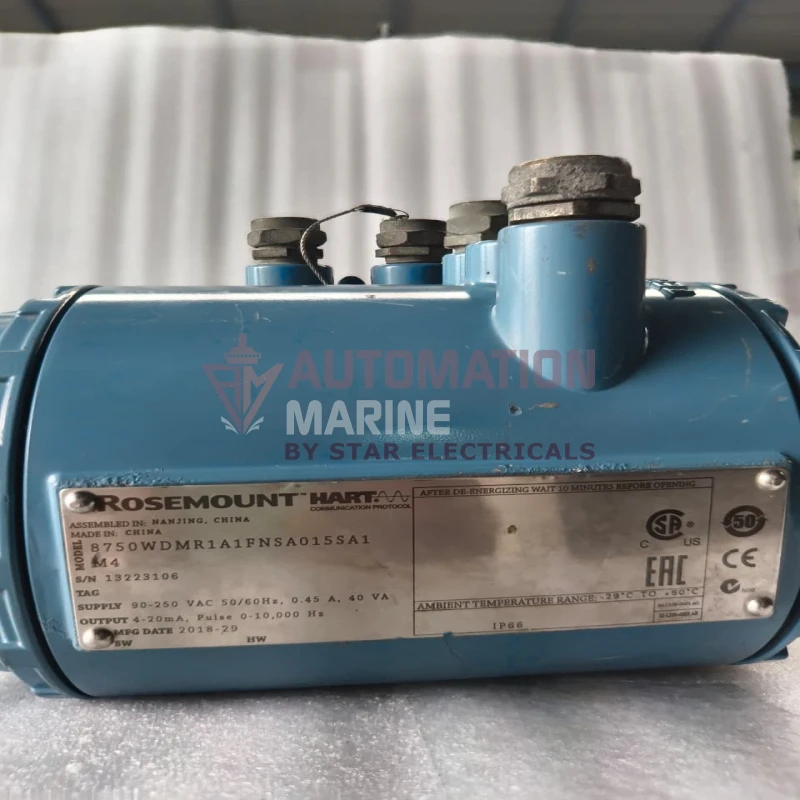

Nameplate Serial No. 13223106
Nameplate Date: 2018-29
Country Of Origin: Made In China
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | |
|---|---|
| Category | OTHERS |
The Rosemount 8750W Magnetic Flowmeter Transmitter is an industrial electromagnetic flow measurement transmitter designed to provide reliable flow measurement and process signal transmission in demanding applications. The photographed unit is identified as 8750WDMR1A1FNSA015SA1M4, with a 90–250 VAC, 50/60 Hz supply and 4–20 mA / Pulse output.
The Rosemount 8750W platform supports 4–20 mA output with digital HART protocol and scalable pulse output, making it suitable for integration with PLCs, DCS systems, SCADA systems and industrial process-control networks. The pulse output can be configured for volumetric flow applications, while HART communication provides digital access to transmitter configuration and process information.

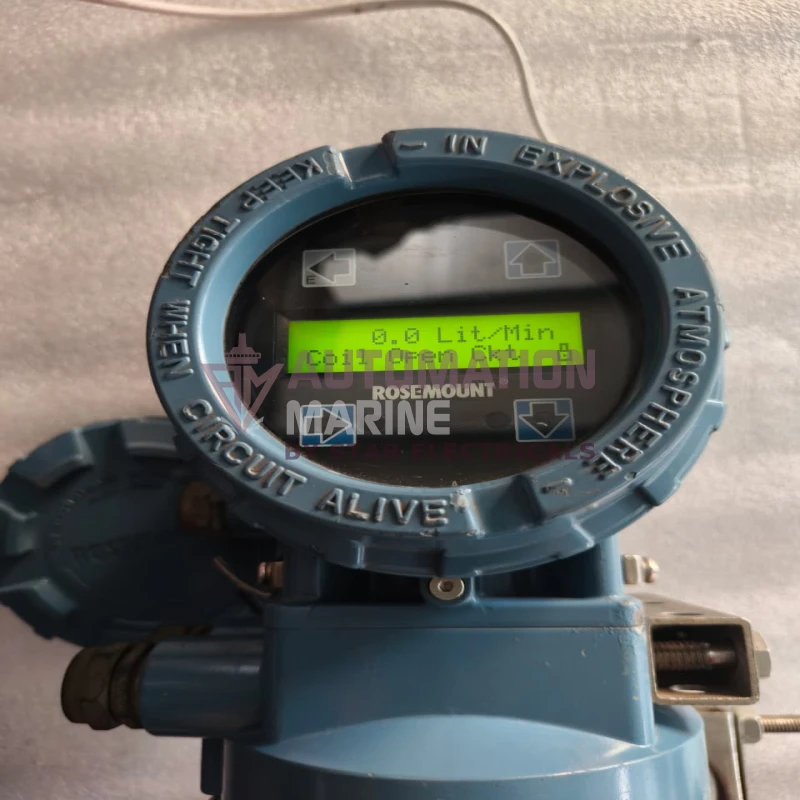

The transmitter supports adjustable flow ranges and provides features such as damping, analog output testing, pulse output testing, reverse-flow detection, coil-circuit diagnostics and other transmitter/process diagnostics.
The nameplate indicates IP66 protection and an ambient operating temperature range of approximately -29°C to +60°C, making this transmitter suitable for industrial environments where protection against dust and water ingress is required.

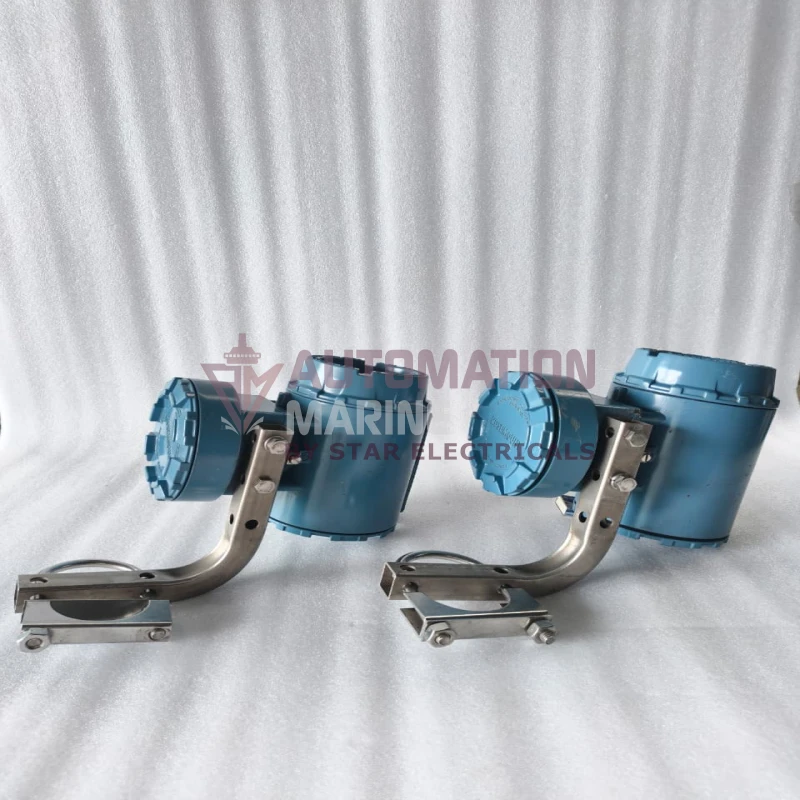

Important: The photographed item appears to be the Rosemount 8750W transmitter/electronics assembly. A complete magnetic flowmeter system may additionally require a compatible Rosemount flow tube/sensor.
- Genuine Rosemount 8750W Magnetic Flowmeter System Transmitter
- Model/Order Code: 8750WDMR1A1FNSA015SA1M4
- Designed for industrial magnetic flow measurement applications
- 90–250 VAC, 50/60 Hz power supply
- Power consumption: 0.45 A, 40 VA
- 4–20 mA analog output with digital HART communication
- Scalable pulse output, configurable up to 0–10,000 Hz

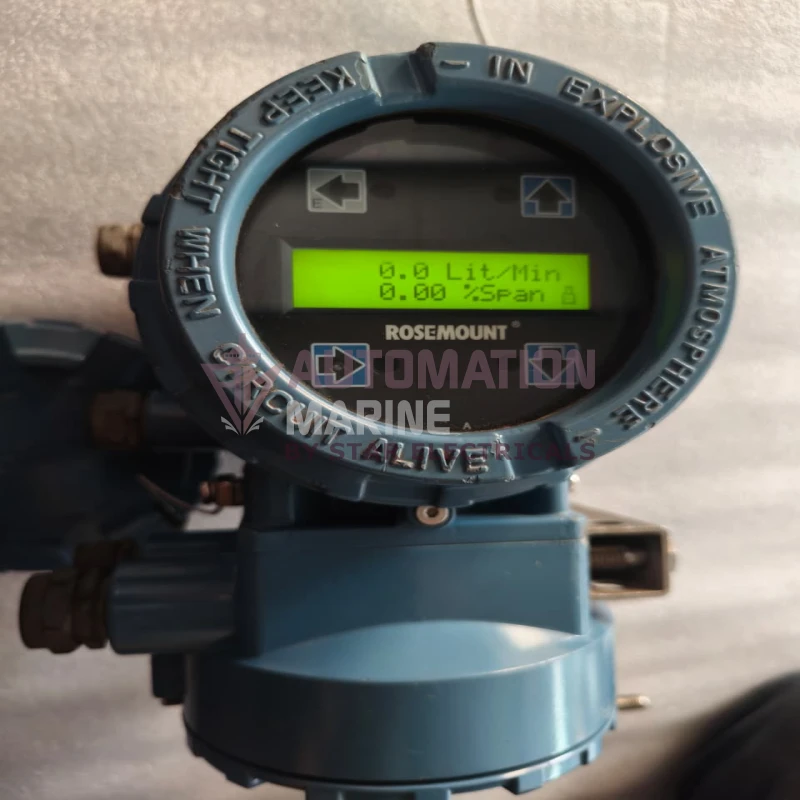

- M4 local operator interface/display
- IP66 enclosure protection
- Ambient temperature range: -29°C to +60°C
- Suitable for demanding water, wastewater, utility and industrial process applications
- Rosemount 8750W platform with configurable diagnostics and flow measurement functions
