HUMAN MACHINE INTERFACE (HMI)

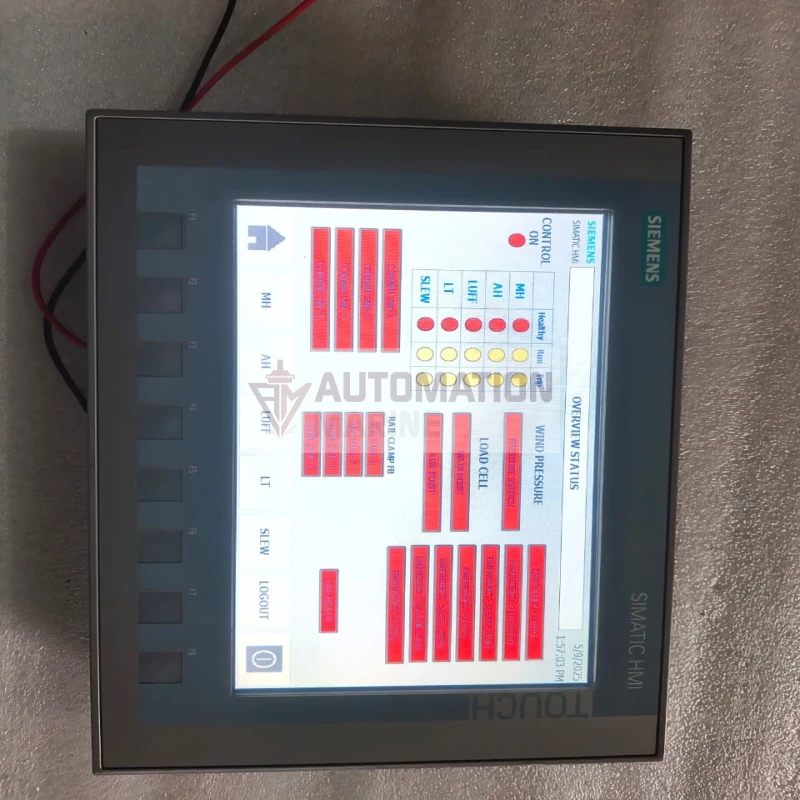

Siemens SIMATIC HMI KTP900 Basic Panel (6AV2123-2JB03-0AX0) | 9 TFT Widescreen Touch And Key Display with PROFINET

Name: Siemens SIMATIC HMI KTP900 Basic Panel (6AV2123-2JB03-0AX0) | 9 TFT Widescreen Touch And Key Display with PROFINET
Brand: SIEMENS
SKU: 1137
Availability: InStock

Pricing

USED

Specification Details
Brand: Siemens
Part Number: 6AV2123-2JB03-0AX0
Model Series: SIMATIC HMI KTP900 Basic
Screen Resolution: 800 x 480 Pixels
Display Type: TFT Widescreen with LED Backlighting
Number of Colors: 65,536 Colors
Function Keys: 8 Tactile Keys (F1 to F8)
Interfaces: 1x RJ45 PROFINET (Ethernet), 1x USB
Input Voltage: 24V DC (0.44A Max)
Dimensions (W x H x D): 267 mm x 182 mm x 55 mm
Protection Class: Front IP65, Type 4X/12 (Indoor only)
Configuration Software: WinCC Basic V13 / STEP 7 Basic V13 or higher
Certifications: CE, cULus Listed, EAC, RCM
Country of Origin: Made in CHINA

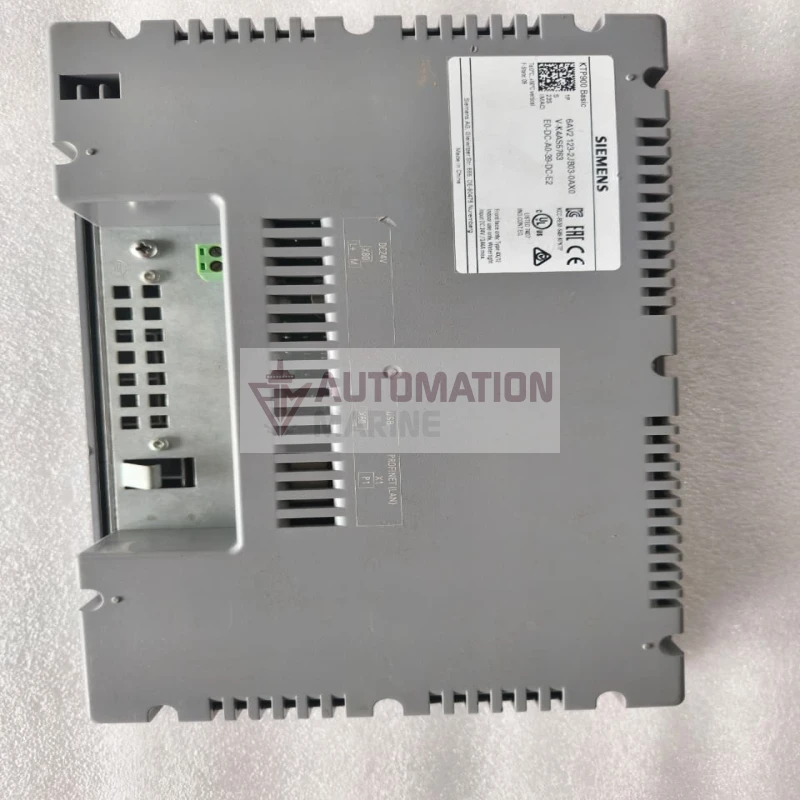

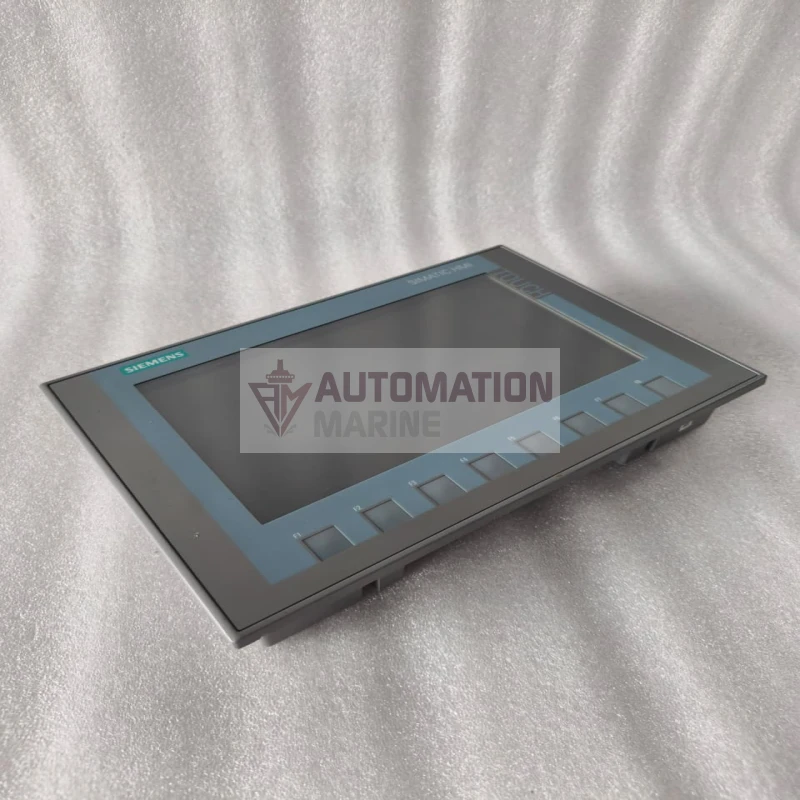

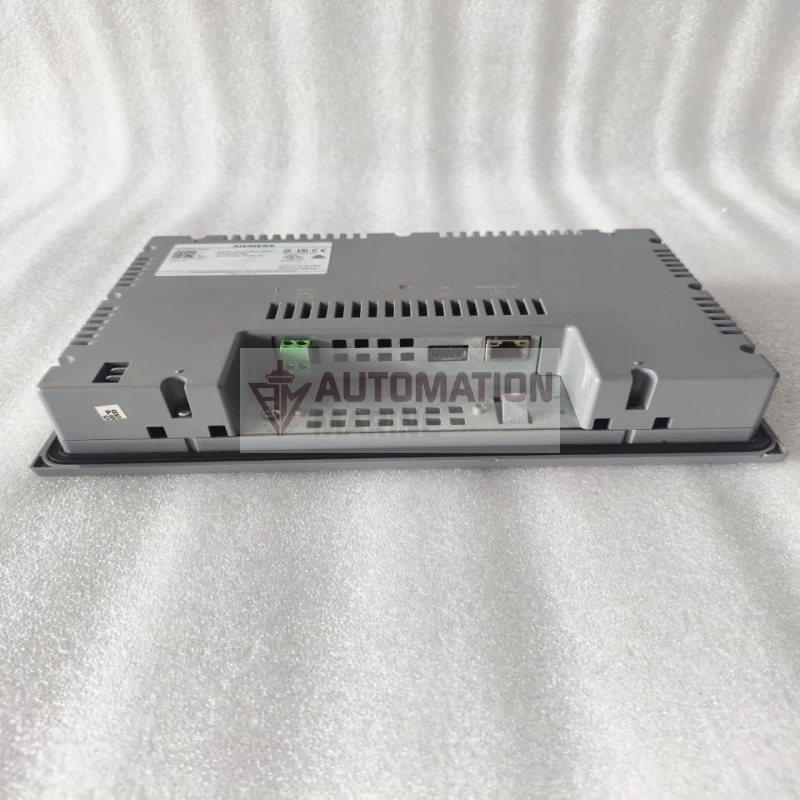

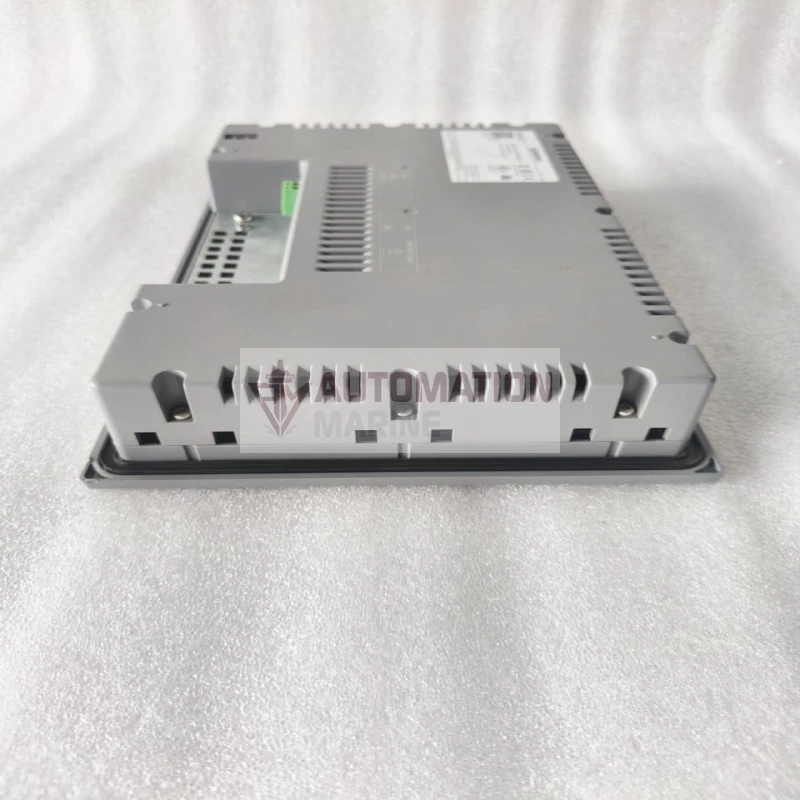

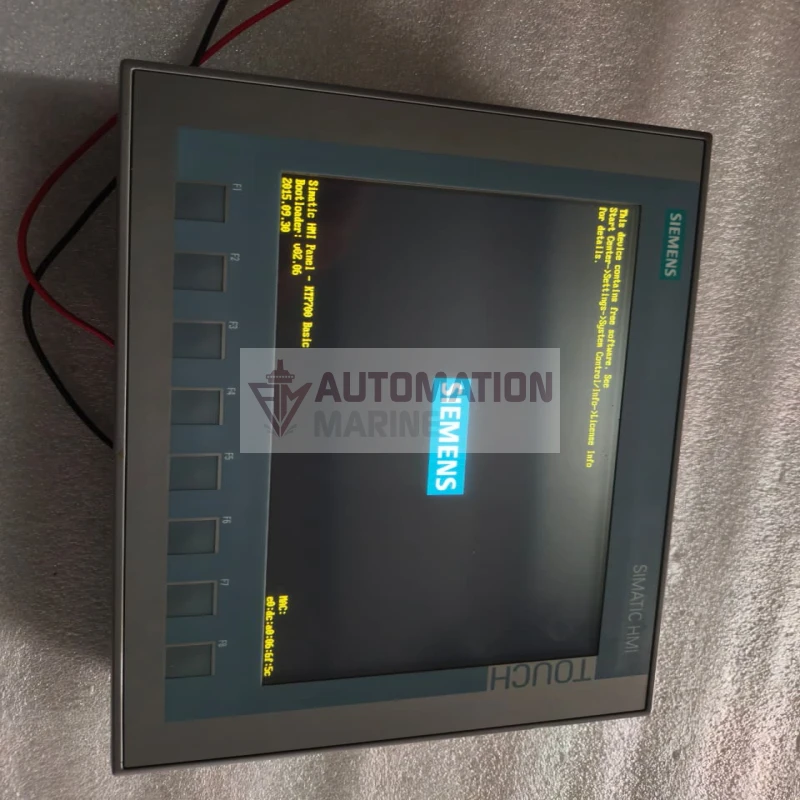

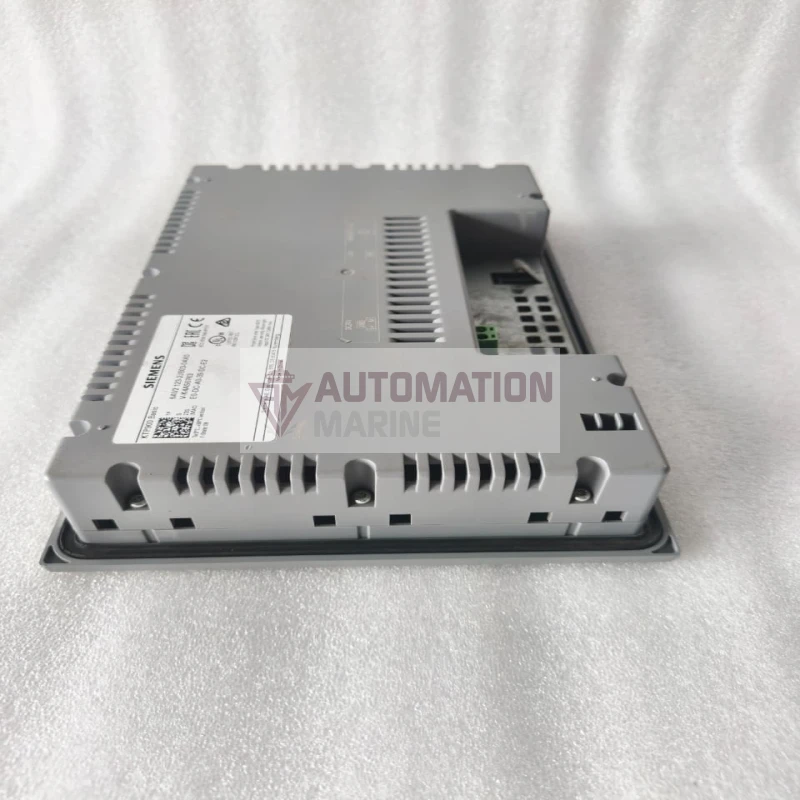

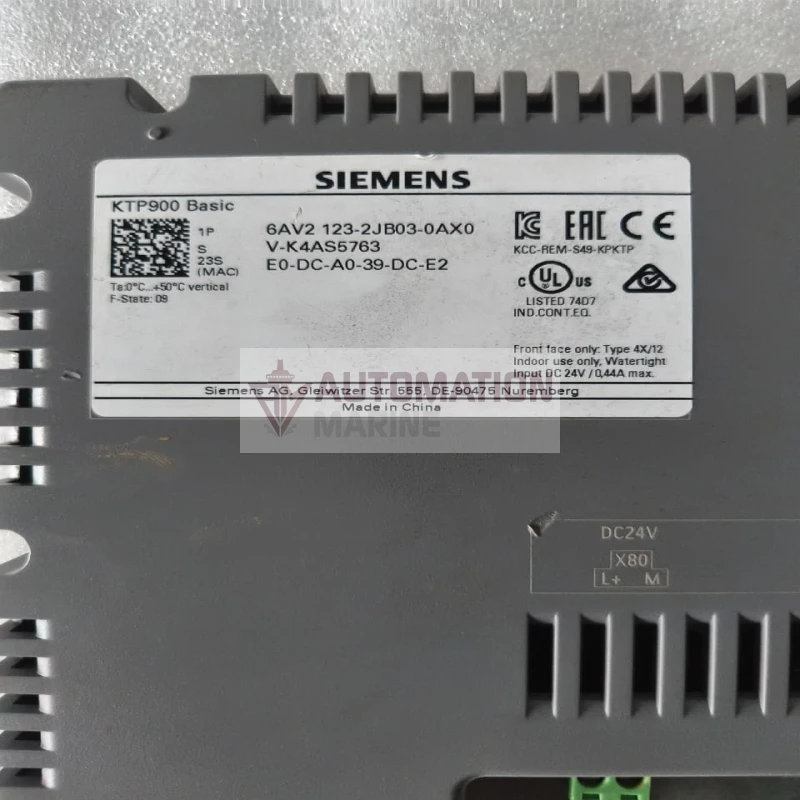

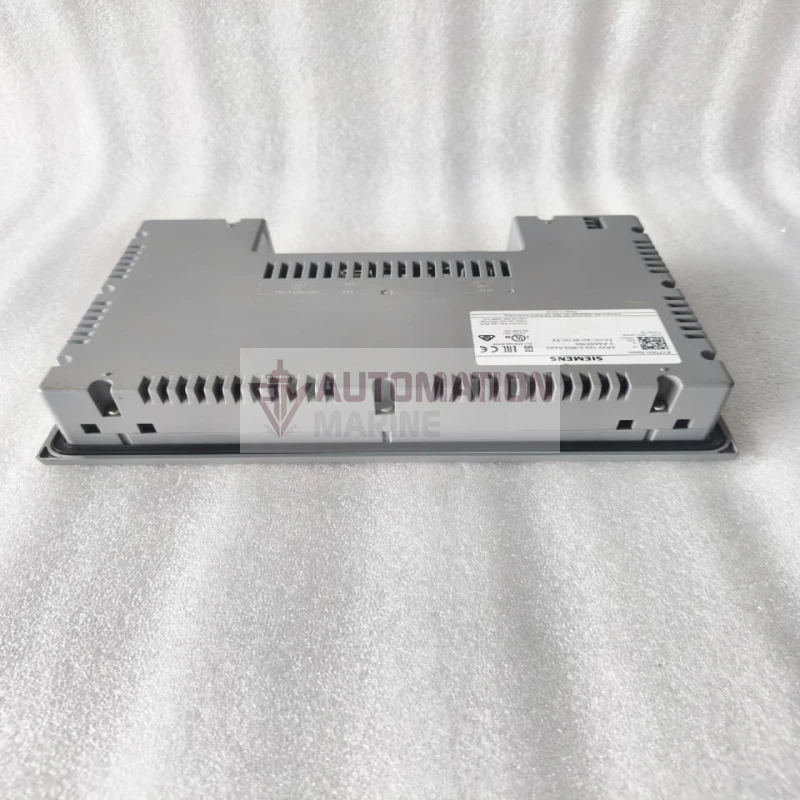

Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.

Brand	SIEMENS
Category	HUMAN MACHINE INTERFACE (HMI)

Get Quote Make Offer WhatsApp

Free Shipping

For Indian customers

Secure Payment

100% protected

Export Quality

Authentic & Certified

Fast Delivery

Worldwide shipping

The Siemens SIMATIC HMI KTP900 Basic Panel (MPN: 6AV2123-2JB03-0AX0) is engineered to deliver cost-effective, high-performance visualization and control for compact machine automation. Equipped with a vibrant 9-inch TFT widescreen display, it offers sharp graphical monitoring alongside an LED-backlit power-saving system.

Designed to optimize factory workflows, this hybrid HMI features a high-sensitivity touch screen coupled with 8 programmable function keys. It provides smooth, responsive interface navigation even when operators are wearing heavy safety gloves.

With an integrated PROFINET (Industrial Ethernet) interface, it allows fast data sharing with Siemens S7 PLCs and other automated industrial devices. It runs on a low-consumption 24V DC input power line and mounts quickly into standard control panels, making it a reliable pick for machine builders and systems integrators worldwide.

Vivid 9" Widescreen Display: High-resolution 800 x 480 pixel TFT display supporting up to 65,536 colors for crystal-clear visual monitoring.
Hybrid Operation: Combines an intuitive touch screen interface with 8 tactile function keys (F1-F8) for maximum operator efficiency.
Integrated PROFINET Interface: Seamless industrial networking and communication via a built-in Ethernet/PROFINET interface port.
Industrial Durability: Features a Type 4X/12 indoor-use watertight front face to protect against demanding factory floor environments.
TIA Portal Ecosystem: Fully configurable via WinCC Basic V13 or STEP 7 Basic V13 or higher.
