WOODWARD 8272-515 PM MOTOR CONTROL
Specification Details
Brand: Woodward
Part Number: 8272-515
Product Type: PM Motor Control
Motor Type: Permanent Magnet (PM) Motor
Input Voltage: 24 VDC
Output: To Motor
Application: Motor Speed Adjustment / Governor Systems
Terminal Count: 5 Screw Terminals
Terminal Marking: 1, 2, 3 Common, 4, 5
Control Function: Motor Speed Adjustment
Mounting Style: Panel / Enclosure Mounted
Front Control: Motor Speed Adjustment
Country Of Origin: Made In USA
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | WOODWARD |
|---|---|
| Category | CONTROLLER |

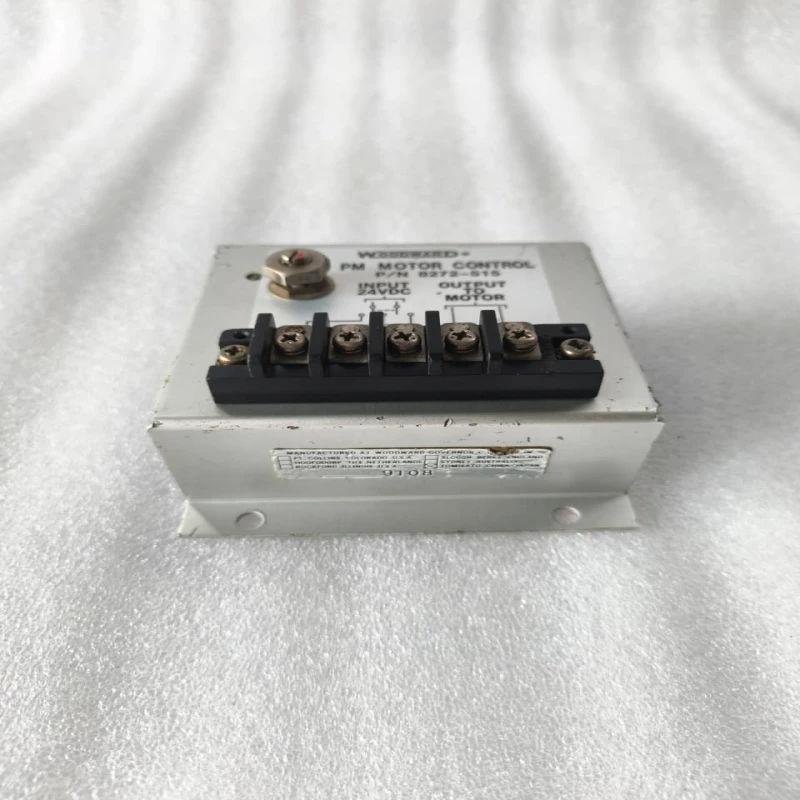

The Woodward 8272-515 PM Motor Control is an industrial motor control unit designed for controlling a permanent-magnet motor used in speed-adjustment applications. The unit shown is marked “PM MOTOR CONTROL” with P/N 8272-515, and provides a 24 VDC input with an output connection to the motor.
Woodward documentation specifically lists part number 8272-515 as the 24 VDC PM Motor Control for permanent-magnet motor speed-adjusting applications. These motor controls are associated with Woodward governor systems where an electric speed-adjusting motor provides remote adjustment of the governor speed setting.

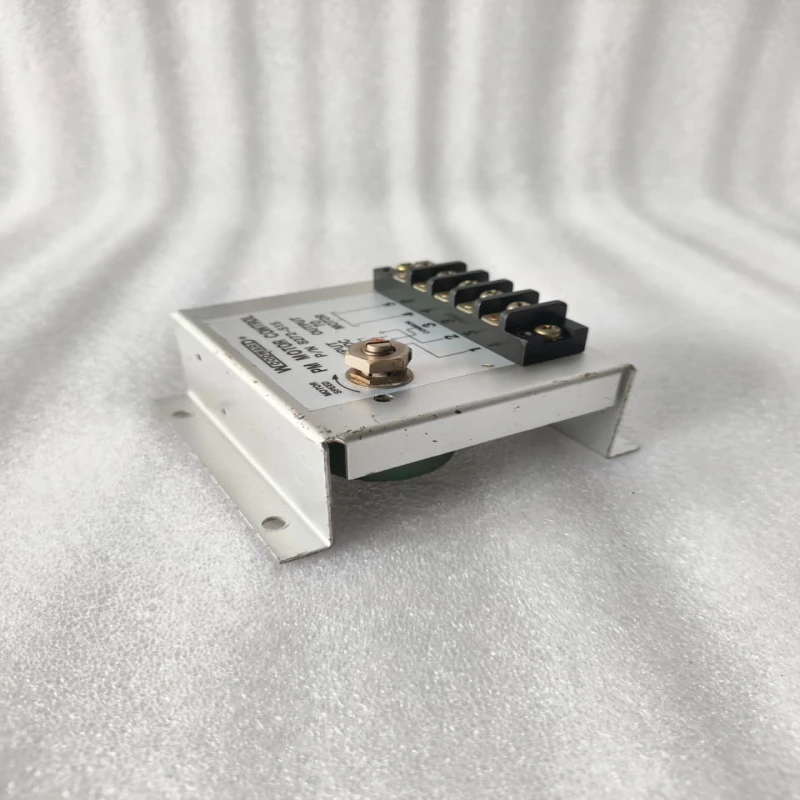

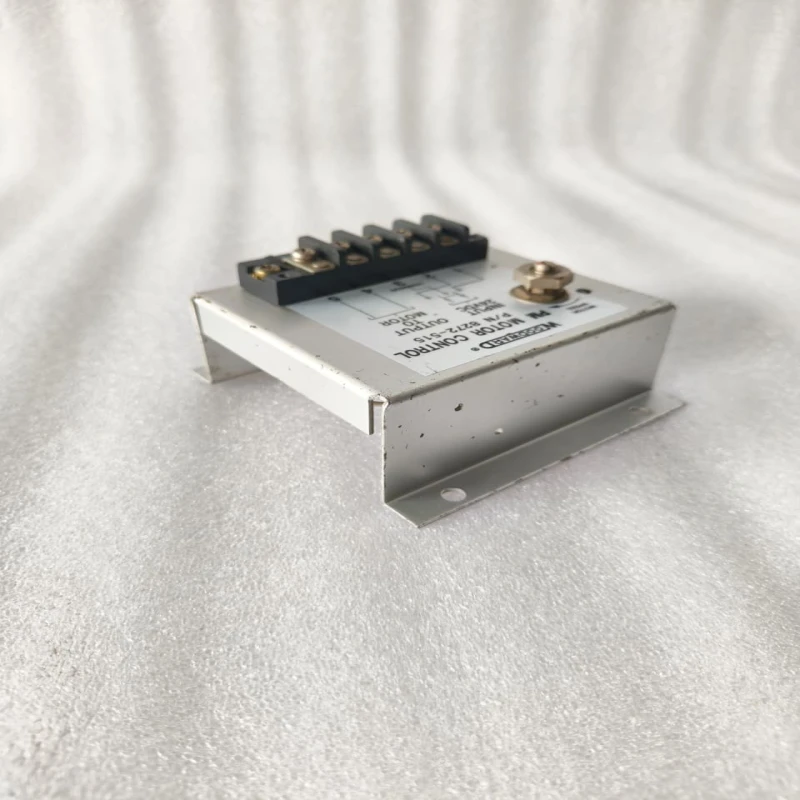

The pictured unit features a front-mounted speed-control mechanism and clearly identified screw terminals numbered 1 through 5, making it suitable for applications requiring a dedicated interface between the DC supply/control circuit and a PM speed-adjusting motor.
Ideal for: Industrial engine controls, generator systems, governor systems, engine speed adjustment, power-generation equipment, and maintenance applications where the Woodward 8272-515 part number is specified.
- Brand: Woodward
- Part Number: 8272-515
- Product Type: PM Motor Control / Motor Speed Control
- Input Voltage: 24 VDC
- Output: To PM Motor
- Application: Electric speed adjustment and motor control applications
- Control Type: Permanent Magnet (PM) Motor Control
- Terminal Configuration: 5-position screw terminal arrangement
- Manual Speed Control: Front-mounted motor speed adjustment control
- Industrial Design: Suitable for industrial engine and governor control systems
- Woodward documentation identifies 8272-515 as a 24 VDC PM Motor Control, with 24 VDC input and 24 VDC output.
