WOODWARD 8272-516 PM Motor Control
Specification Details
Brand: Woodward
Part Number: 8272-516
Product Type: PM Motor Control
Motor Type: Permanent Magnet Motor
Input Voltage: 110 VAC / 115 VAC
Output: 0–48 VDC to Motor
Control Function: Motor Speed Adjustment
Input Terminals: Terminals 1, 2 & 3 / Common as marked
Motor Output Terminals: Terminals 4 & 5
Front Control: Motor Speed Adjustment
Application: Governor Speed Adjustment / Engine Control
Mounting: Panel / Equipment Mounting
Suitable Industries: Industrial, Marine, Power Generation, Engine Automation

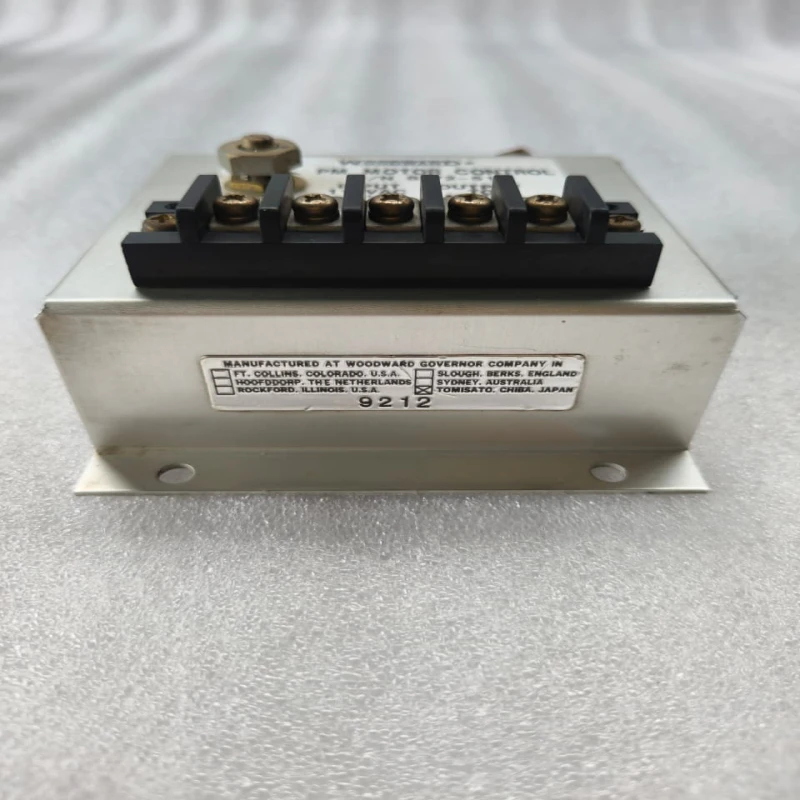

Country Of Origin: Made In USA
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | WOODWARD |
|---|---|
| Category | CONTROLLER |
The Woodward 8272-516 PM Motor Control is an industrial motor control unit designed to operate a permanent-magnet motor used for speed adjustment in compatible Woodward governor systems. The unit accepts a 110 VAC input and provides controlled DC output to the motor, with Woodward documentation specifying the 8272-516 configuration as 115 VAC input to 0–48 VDC output.

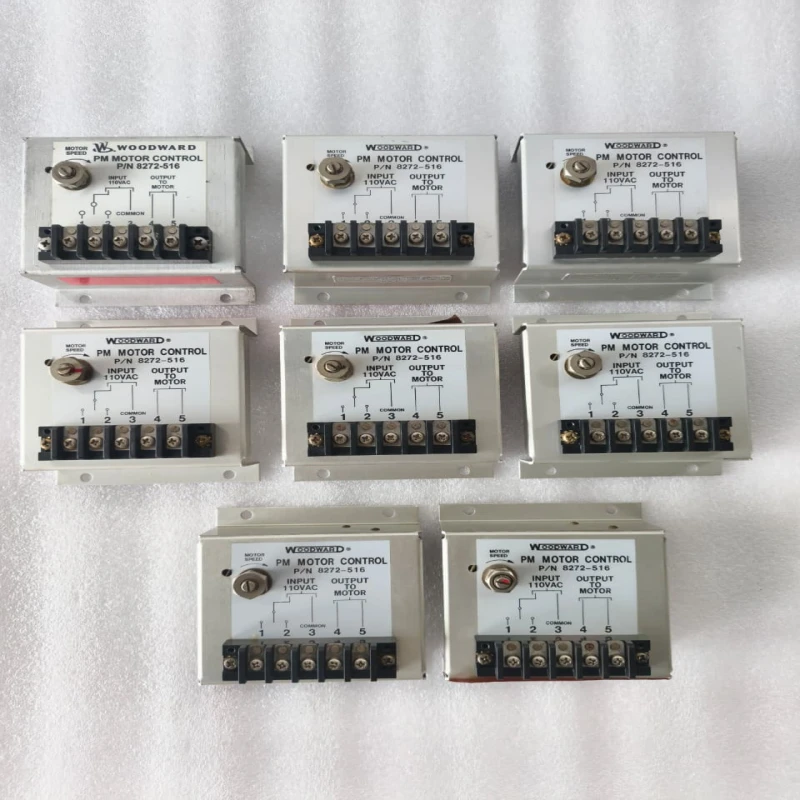

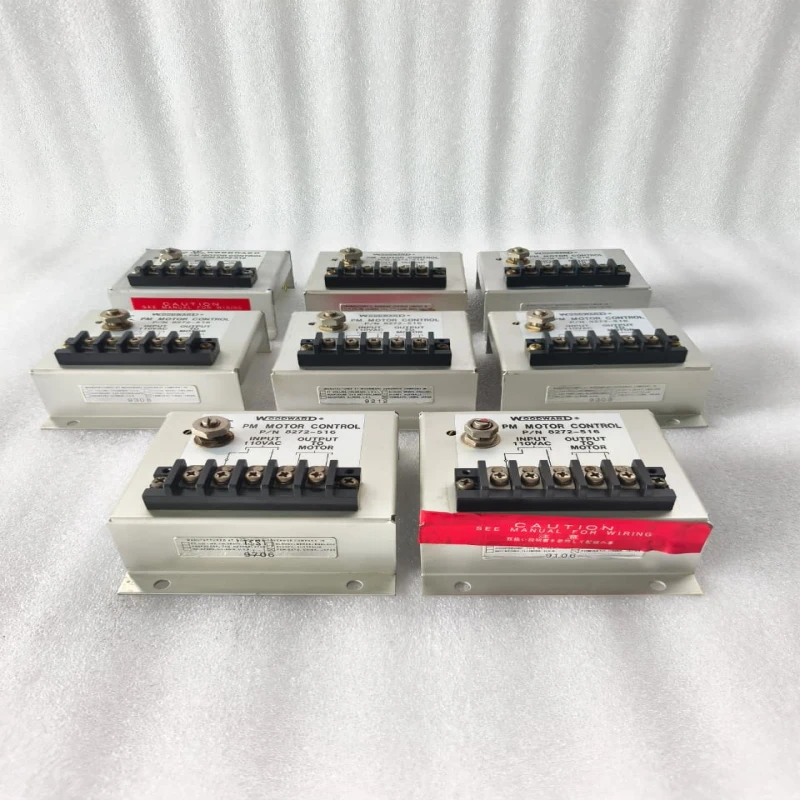

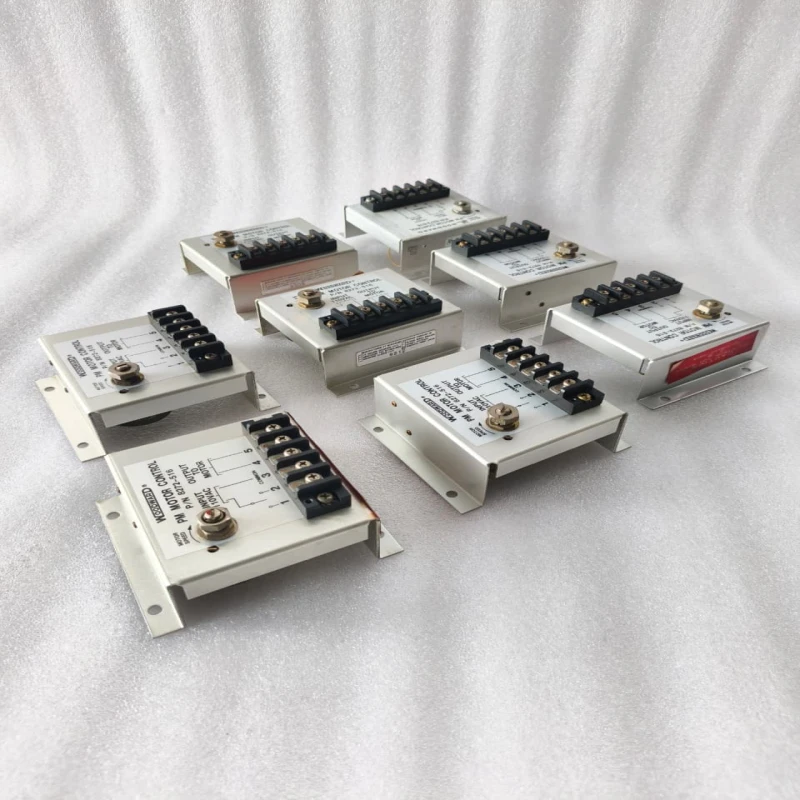

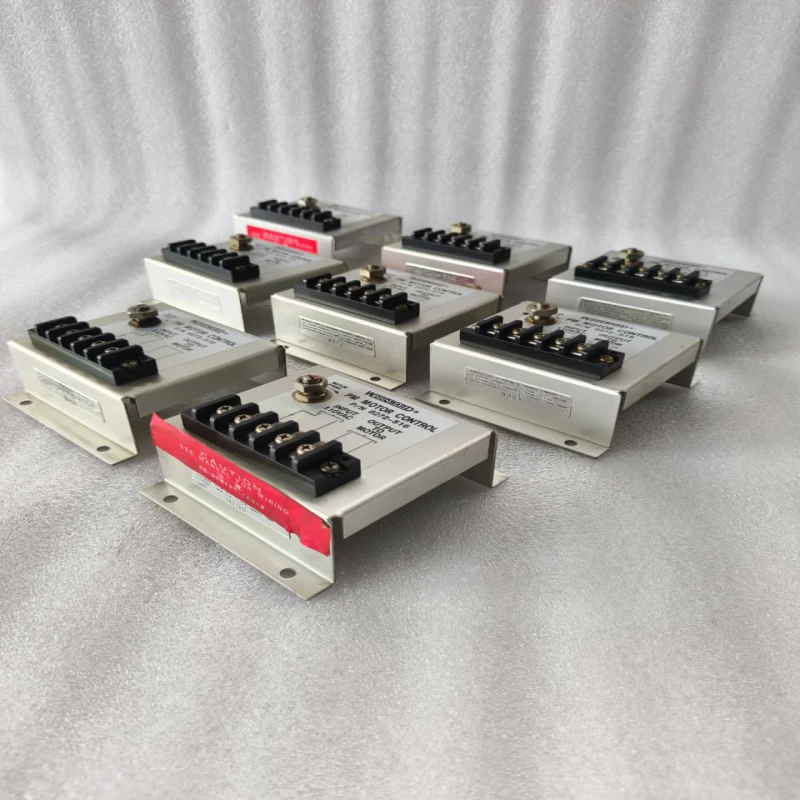

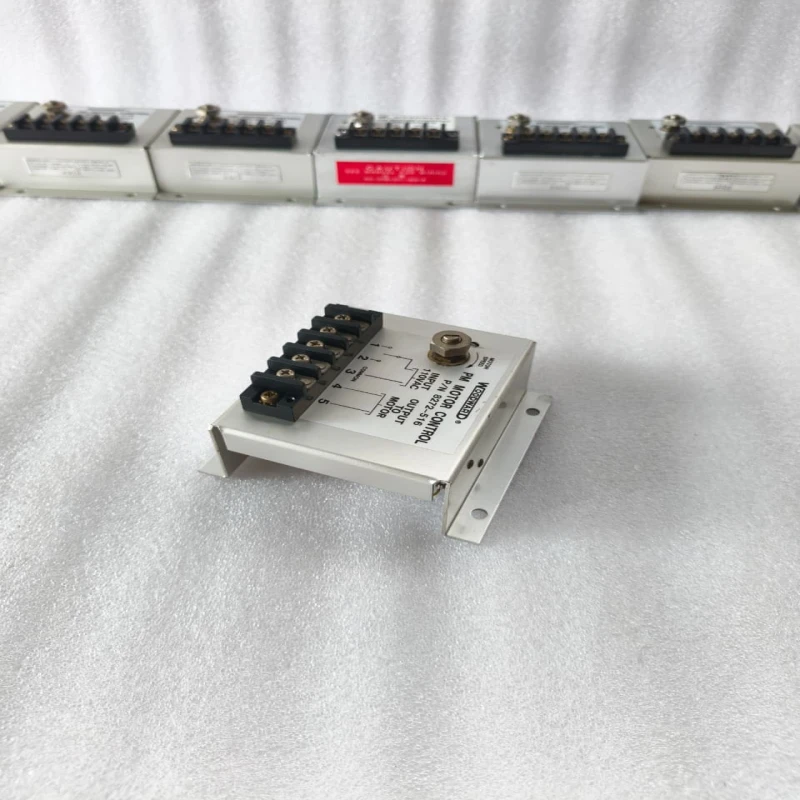

The pictured unit features a dedicated MOTOR SPEED adjustment control and clearly marked input and motor-output terminals. It is intended for applications where precise electrical adjustment of an engine or governor speed-setting mechanism is required.
The Woodward 8272-516 is particularly relevant for industrial engine controls, generator systems, marine automation, governor systems and machinery speed-control applications. Its compact construction and clearly labeled terminal arrangement make it suitable as a service component in compatible installations.
- Genuine Woodward PM Motor Control for industrial engine and governor speed adjustment applications
- Part Number: 8272-516
- Input Voltage: 110 VAC
- Motor Output: 0–48 VDC
- Designed for controlling permanent magnet (PM) speed-adjusting motors
- Front-mounted motor speed adjustment control
- Clearly identified terminal connections for input and motor output
- Compact industrial control design suitable for automation and engine control systems
- Suitable for applications involving Woodward governors and remote speed adjustment
- Reliable solution for industrial, marine and engine control applications
- Ideal component for compatible Woodward speed control systems
