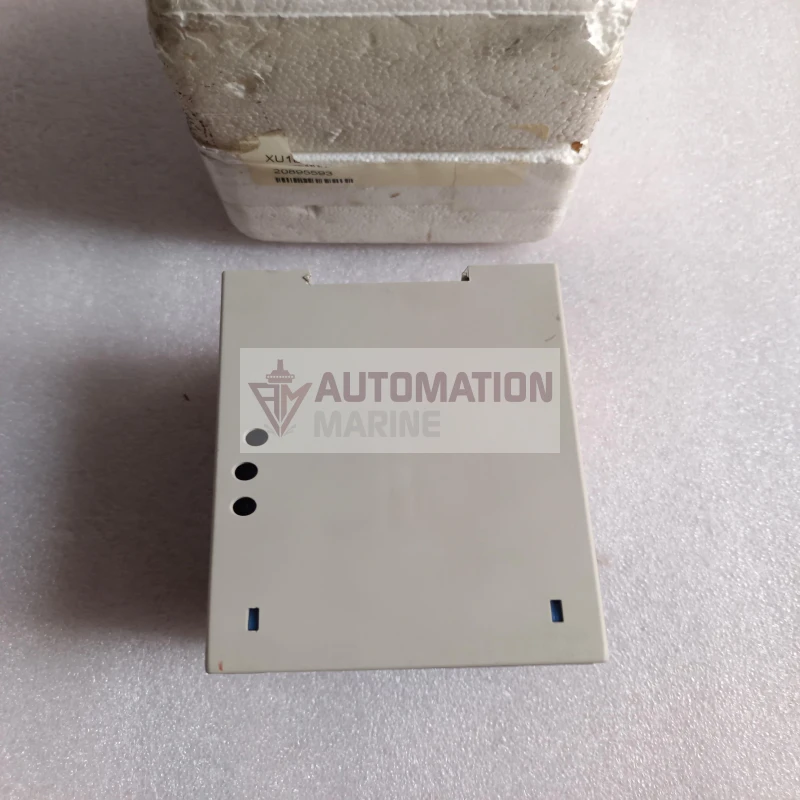

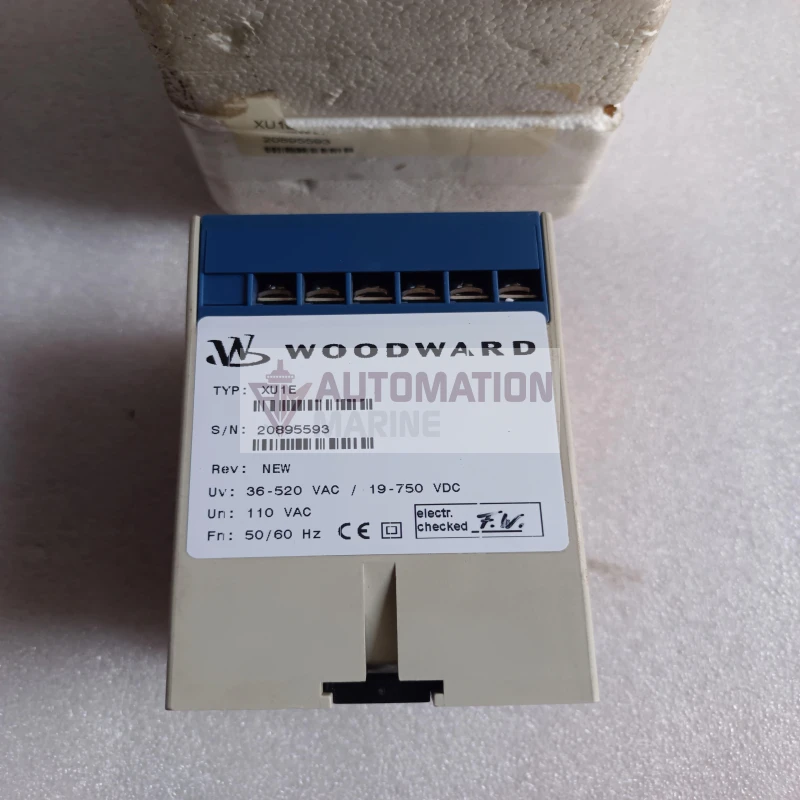

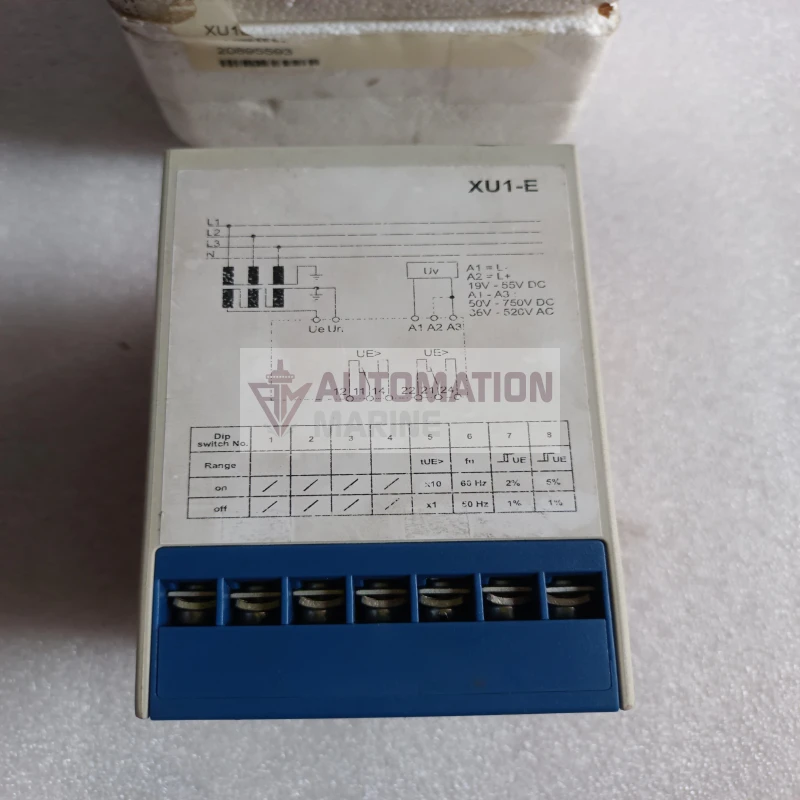

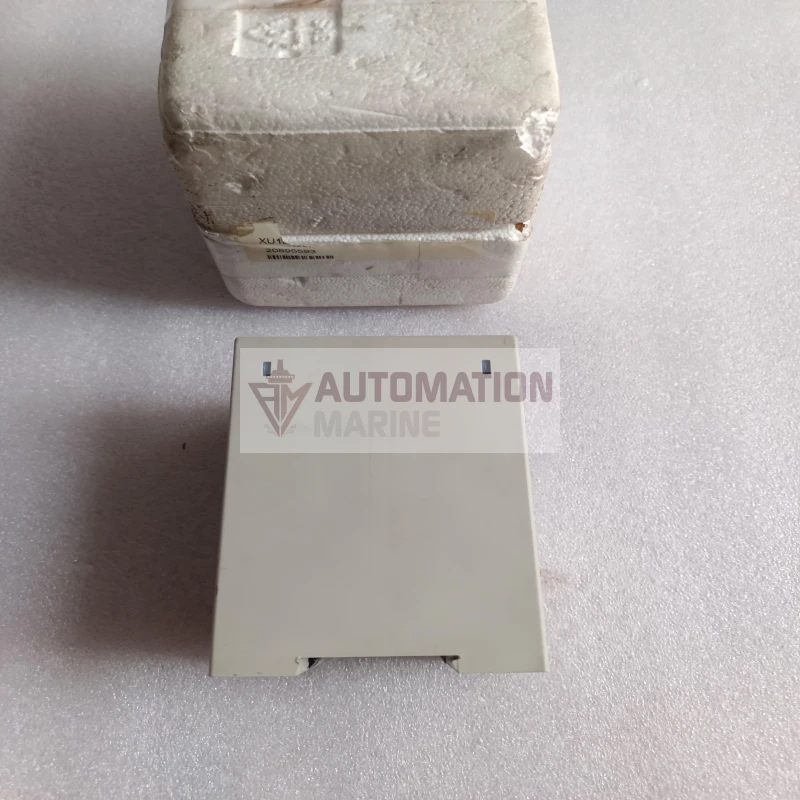

Woodward SEG XU1-E Digital Residual Voltage Protection Relay
Pricing
Contact us for pricing & availability
OPEN BOX - NEW
Specification Details
Brand: Woodward
Model: SEG XU1-E
Nominal Voltage: 110 VAC
Product Type: Digital Residual Voltage Protection Relay
Rated Frequency: 50 / 60 Hz
Auxiliary Voltage Voltage Supply: 36–520 VAC / 19–750 VDC
ANSI Device Code: 59N (Residual Overvoltage Protection)
Mounting Type: 35mm Standard Fast DIN Rail
Status:- New Open Box (As Per Photos)
Country of Origin: Made in Germany
Shipping:- Fast & Safe Worldwide Shipping Available.
| Brand | Woodward |
|---|---|
| Category | RELAY |
Free Shipping
For Indian customers
Secure Payment
100% protected
Export Quality
Authentic & Certified
Fast Delivery
Worldwide shipping
The Woodward SEG XU1-E Protection Device is a high-performance, digital earth-fault voltage relay engineered for the safety and protection of power distribution networks. Part of the renowned Professional Line, this compact system connects directly to the open e-n (or da-dn) winding of the voltage transformer to continuously monitor residual voltages.

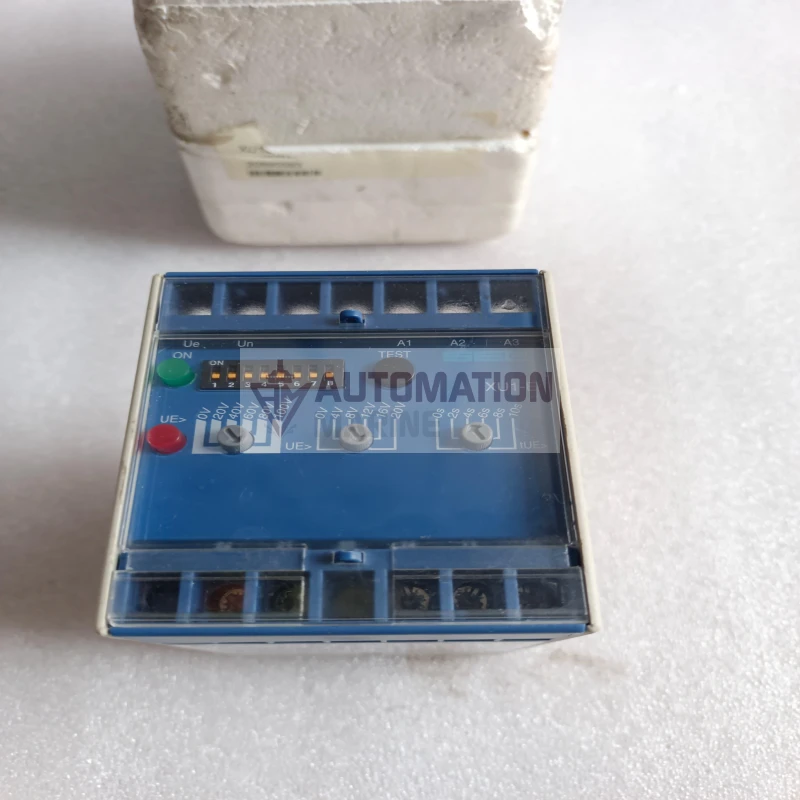

By processing signals digitally with a True RMS measurement system, the XU1-E actively dampens transients and uneven harmonics—such as those created by arc faults—preventing false alarms while keeping your grid completely stable. Featuring a built-in DIP switch for instant 50Hz/60Hz grid configuration, real-time diagnostic LEDs, and an integrated self-test pushbutton, the unit provides critical industrial-grade protection in an easy-to-install DIN rail mounting format.
- Industrial Compliance: Fully certified to comply with strict IEC 60255-1 international relay standards.
- Advanced Earth Fault Protection: Purpose-built for precise earth fault detection in isolated, resistively earthed, or high-ohmic medium voltage networks.
- True RMS Measurement: Advanced digital filter data processing ensures harmonic suppression to prevent nuisance tripping.
- Universal Wide Range Power Supply: Accommodates a wide auxiliary range from 36–520 VAC and 19–750 VDC for exceptional application flexibility.
- Highly Precise Adjustment: Front-facing rotary dials allow adjustable trip valuesand time-delay selections up to 10 seconds.
