Yokogawa F3AD08-5R Analog Input Module
Specification Details
Brand: Yokogawa
Product Series: FA-M3
Model: F3AD08-5R
Product Type: Analog Input Module / A/D Converter
Input Channels: 8
Input Configuration: Differential
A/D Resolution: 16-bit
Input Signal Type: DC Voltage
Input Range 1: 0–5 VDC
Input Range 2: 1–5 VDC
Input Range 3: 0–10 VDC
Input Range 4: -10 to +10 VDC
Sampling Period: 50 μs/point
Supply Voltage: 5 VDC
Current Consumption: 210 mA
Terminal Connection: 18-point terminal block
Terminal Screw: M3.5
Dimensions: 28.9 × 100 × 106.1 mm
Approx. Weight: 200 g
Features: Scaling, Offset, Filtering, Data Hold, Self-Diagnosis
Mounting: FA-M3 system/module mounting
Manufacturer: Yokogawa Electric Corporation
Image Model/Suffix: F3AD08 / -5R
Country Of Origin: Made In Korea
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | YOKOGAWA |
|---|---|
| Category | MODULE |
The Yokogawa F3AD08-5R is a high-resolution 8-channel analog input module and A/D converter designed for Yokogawa FA-M3 industrial control systems. It converts external analog voltage signals into digital data that can be processed by the PLC/controller.
The module provides 8 differential analog input channels and uses a 16-bit A/D converter, making it suitable for applications requiring accurate and reliable analog signal acquisition. Supported input ranges include 0–5 VDC, 1–5 VDC, 0–10 VDC and -10 to +10 VDC.
With a reported sampling period of approximately 50 μs, the F3AD08-5R is suitable for relatively high-speed industrial measurement and control applications. The module also supports functions such as input scaling, offset adjustment, filtering, peak/trough data holding and hardware self-diagnosis.

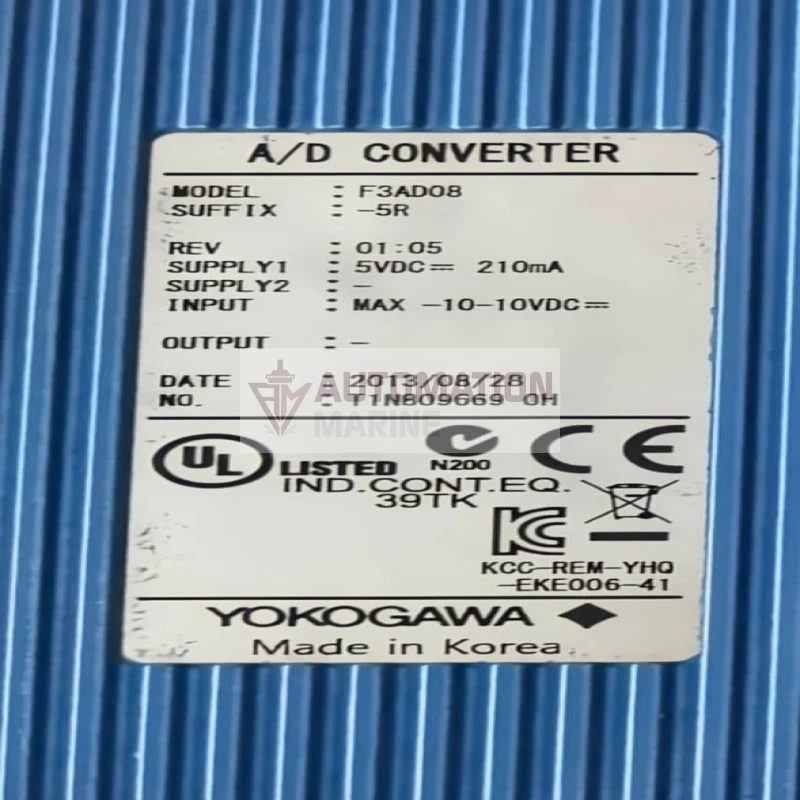

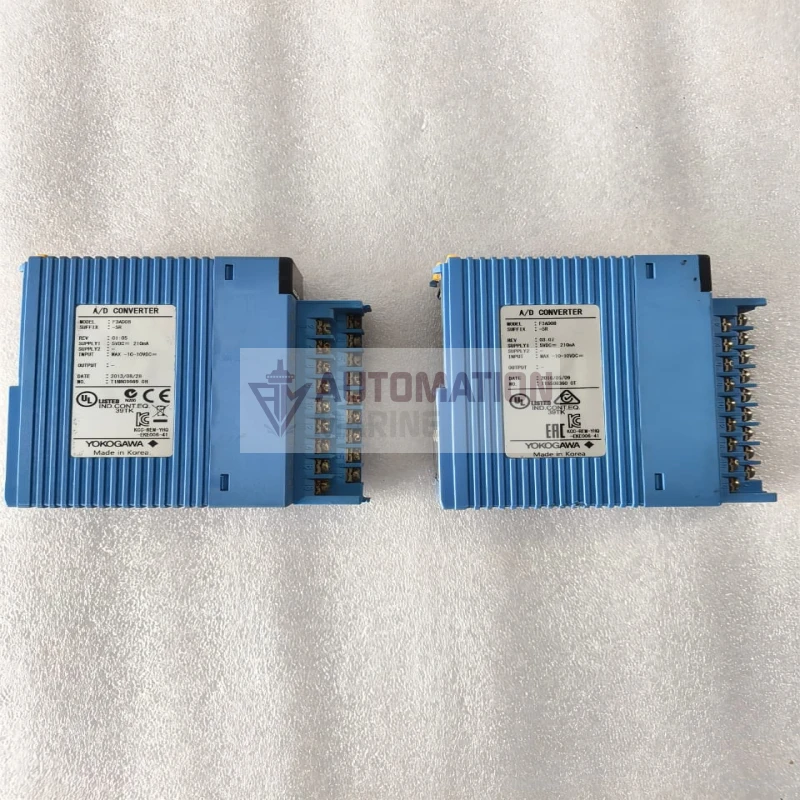

The unit shown in the supplied image is marked MODEL: F3AD08, SUFFIX: -5R, with 5 VDC / 210 mA supply information and a manufacturing date of 2013/08/28.
- Brand: Yokogawa
- Model: F3AD08-5R
- Series: FA-M3
- Module Type: Analog Input / A/D Converter Module
- Number of Inputs: 8 differential analog input channels
- Resolution: 16-bit A/D conversion
- Input Signal: Voltage signals
- Input Ranges: 0–5V DC, 1–5V DC, 0–10V DC, -10 to +10V DC
- High-Speed Sampling: Approx. 50 ?s per point
- Power Supply: 5V DC
- Current Consumption: 210 mA
- External Connection: 18-point terminal block with M3.5 screws
- Dimensions: Approx. 28.9 × 100 × 106.1 mm
- Weight: Approx. 200 g
- Functions: Scaling, offset adjustment, filtering, data hold and self-diagnosis
- Applications: PLC automation, process control, industrial instrumentation and analog signal acquisition
