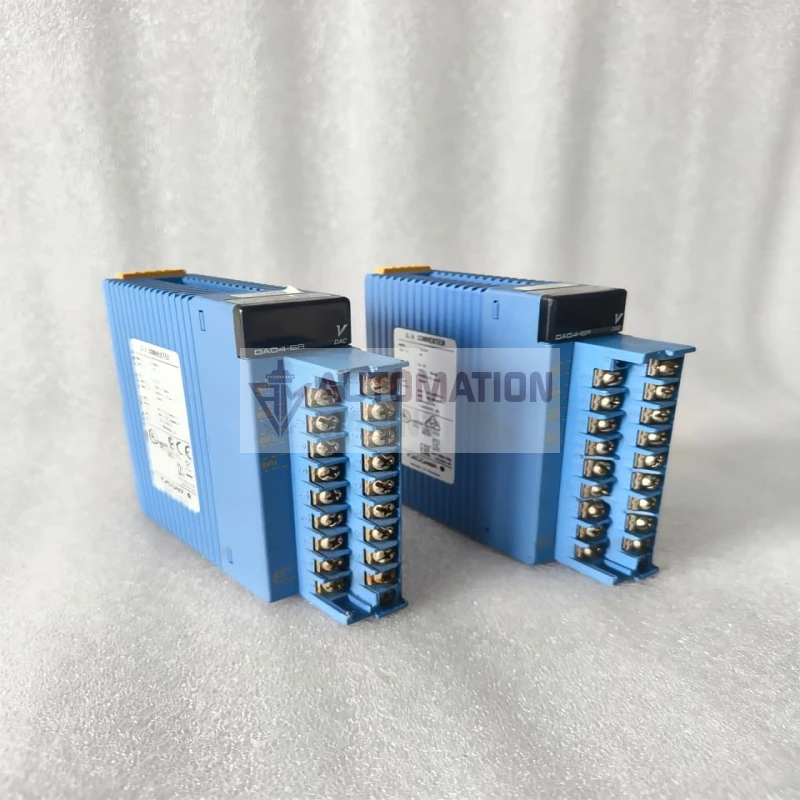

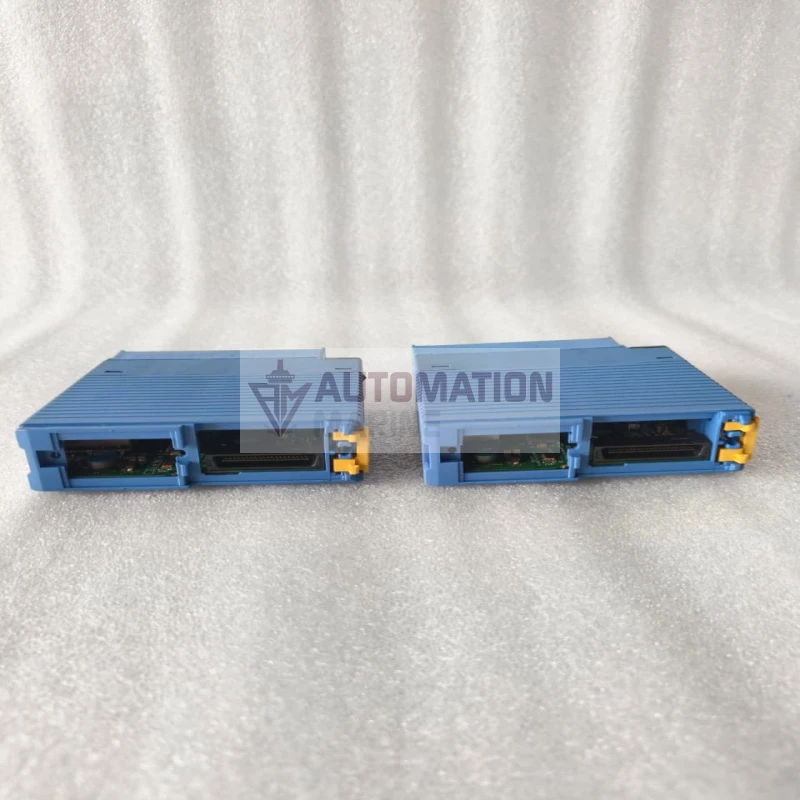

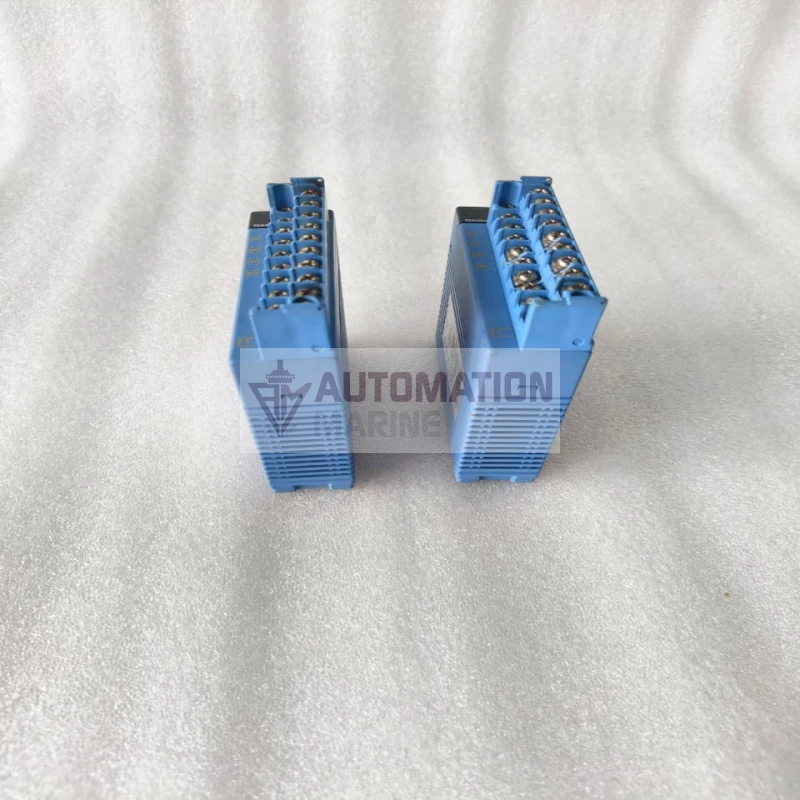

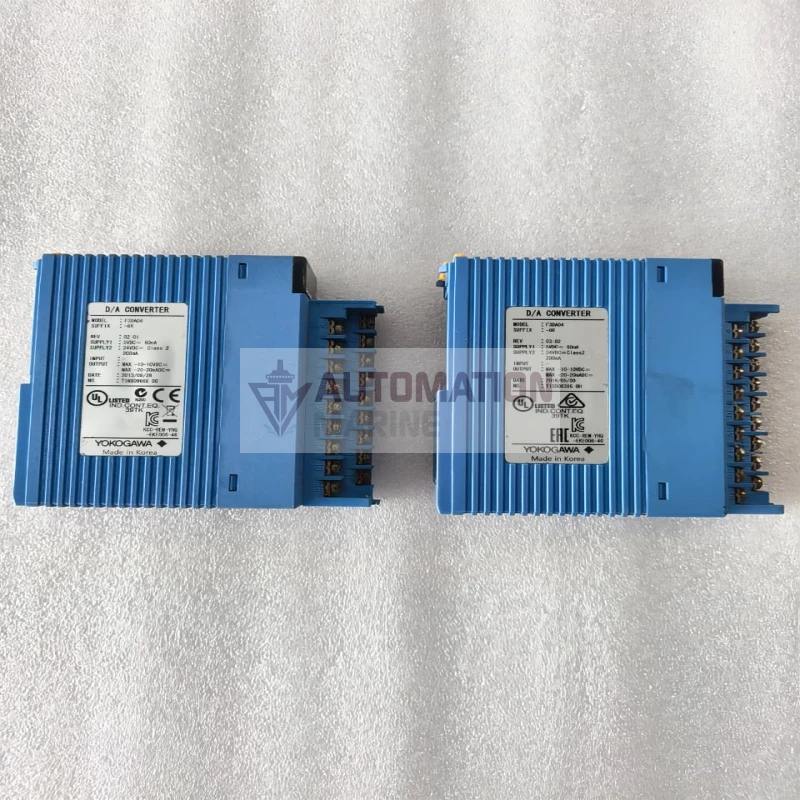

Yokogawa F3DA04-6R FA-M3 Series 4-Channel 16-Bit D/A Analog Output Module, ±10V / ±20mA
Specification Details
Brand: Yokogawa
Model: F3DA04-6R
Series: FA-M3
Product Type: D/A Converter / Analog Output Module
Number of Outputs: 4 Channels
DAC Resolution: 16-bit
Voltage Output: -10 to +10 VDC, 0 to 10 VDC, 0 to 5 VDC, 1 to 5 VDC
Current Output: 4 to 20 mA, 0 to 20 mA, -20 to +20 mA DC
Default Output Range: -10 to +10 VDC
Conversion Speed: 2 μs/channel
Voltage Resolution: Up to approximately 0.2 mV
Current Resolution: Up to approximately 0.5 μA
Voltage Accuracy: ±0.1% FS at 23 ±2°C
Current Accuracy: ±0.2% FS at 23 ±2°C
Internal Isolation: Isolated between output terminals and internal circuitry
Isolation Withstand: 500 VDC for 1 minute

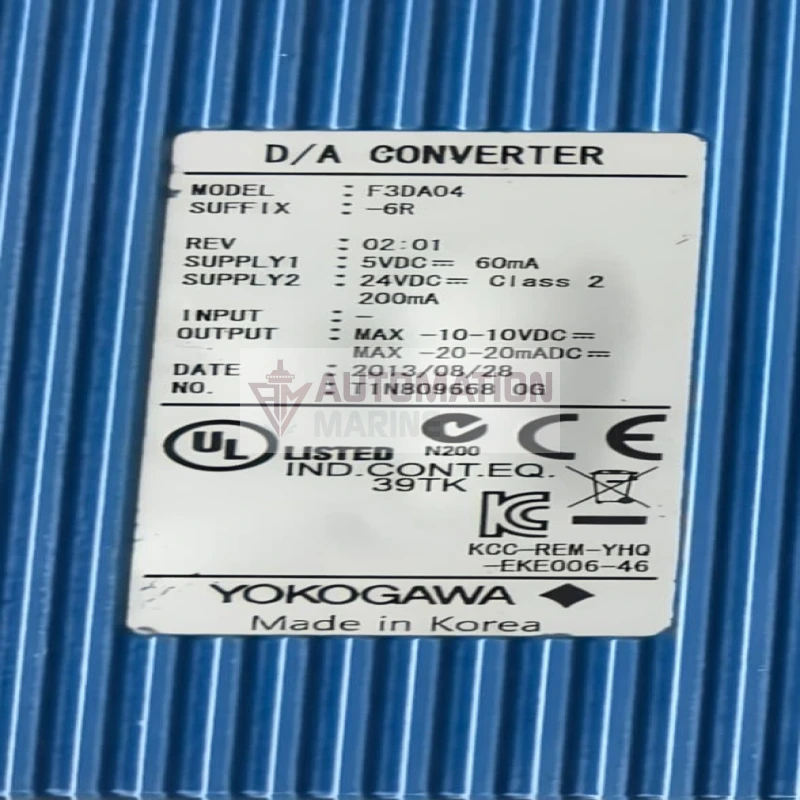

Supply Voltage 1: 5 VDC, 60 mA
Supply Voltage 2: 24 VDC Class 2, 200 mA
Application: Industrial Automation / Process Control
Controller Platform: Yokogawa FA-M3

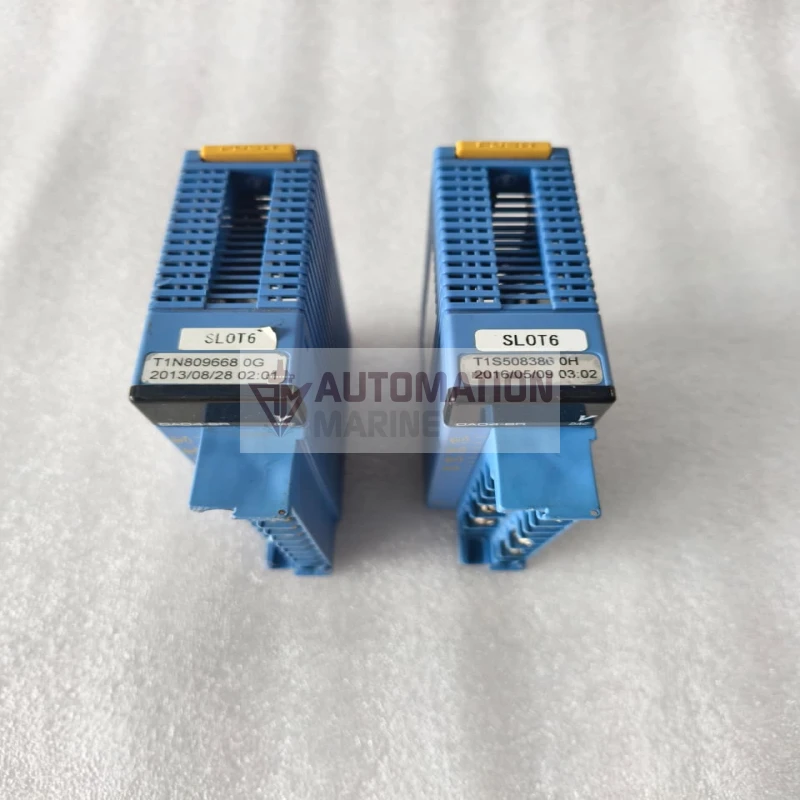

Revision Shown: 02:01
Date on Label: 2013/08/28
Country Of Origin: Made In Korea
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | YOKOGAWA |
|---|---|
| Category | MODULE |
The Yokogawa F3DA04-6R is a high-resolution 4-channel D/A converter analog output module designed for the Yokogawa FA-M3 Range-Free Controller platform. It converts digital control data from the PLC/CPU into accurate analog voltage or current signals for industrial control applications.
Using a 16-bit DAC, the F3DA04-6R provides high-resolution analog signal generation for applications such as process control, actuator control, variable-speed control, instrumentation, and industrial automation. The module supports configurable voltage ranges including -10 to +10 VDC, 0 to 10 VDC, 0 to 5 VDC and 1 to 5 VDC, as well as current ranges of 4-20 mA, 0-20 mA and -20 to +20 mA DC.
The module is designed for high-speed operation, with a D/A conversion time of approximately 2 μs. Its output type and range can be configured through software, making it suitable for flexible industrial automation and process-control systems.
- Brand: Yokogawa
- Model: F3DA04-6R
- Series: FA-M3 Range-Free Controller
- Module Type: Digital-to-Analog (D/A) Converter / Analog Output Module
- Number of Channels: 4 Analog Output Channels
- DAC Resolution: 16-bit high-resolution DAC
- Voltage Output: -10 to +10 VDC, 0 to 10 VDC, 0 to 5 VDC, 1 to 5 VDC
- Current Output: 4 to 20 mA, 0 to 20 mA, -20 to +20 mA DC
- Fast Conversion: Approximately 2 μs per channel
- High Accuracy: Voltage ±0.1% of full scale at 23 ±2°C; current ±0.2% of full scale at 23 ±2°C
- Output Type and Range: Software configurable
- Isolation: Output terminals isolated from internal circuitry, with 500 VDC withstand capability
- Supply: 5 VDC, 60 mA and 24 VDC Class 2, 200 mA as marked on the product label
- Manufactured in: Korea
- Certifications/Marks: UL, CE, KC
