Yokogawa F3RP61-2R RTOS CPU Module | e-RT3 / FA-M3 Series Linux-Compatible Industrial Controller CPU
Specification Details
Brand: Yokogawa Electric
Part Number: F3RP61-2R
Series: e-RT3 / FA-M3
Module Type: RTOS CPU Module
Model: F3RP61
Suffix: -2R

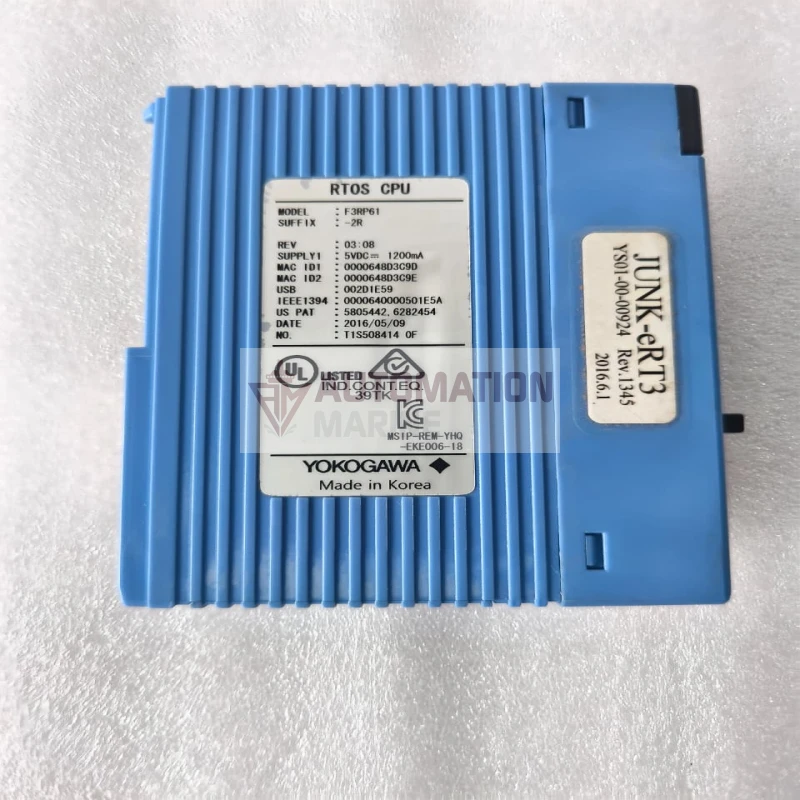

Power Specification: 5VDC ⎓ 1200mA
Revision Status: 03:08
US Patents: 5805442, 6282454
CPU: MPC8347E
CPU Speed: 533 MHz
Flash ROM: 64 MB
SDRAM: 128 MB
User SRAM: Not provided on F3RP61-2R
Ethernet: 2 × 10BASE-T / 100BASE-TX
Serial Interface: RS-232-C
PCMCIA / CF: PCMCIA V2.1, JEIDA V4.2 / Type II
RAS Functions: Power-failure detection, watchdog timer
Mounting/Application: FA-M3/e-RT3 industrial controller system
Product Status: Legacy / discontinued model
Related Version: F3RP61-2R/2N
Typical Applications: Industrial automation, embedded control, machine control, process monitoring
Country Of Origin: Made In KOREA

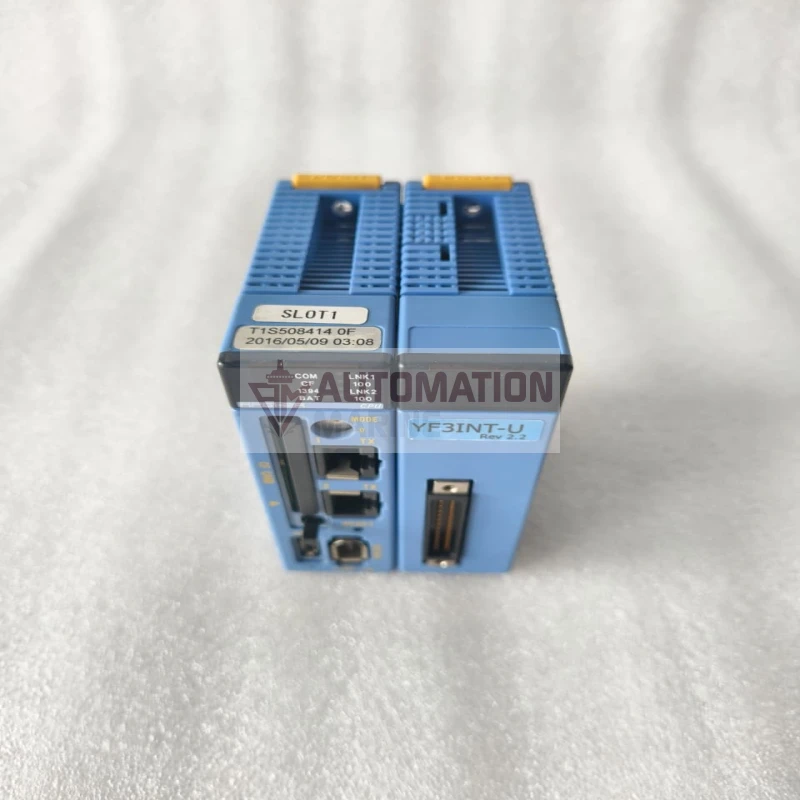

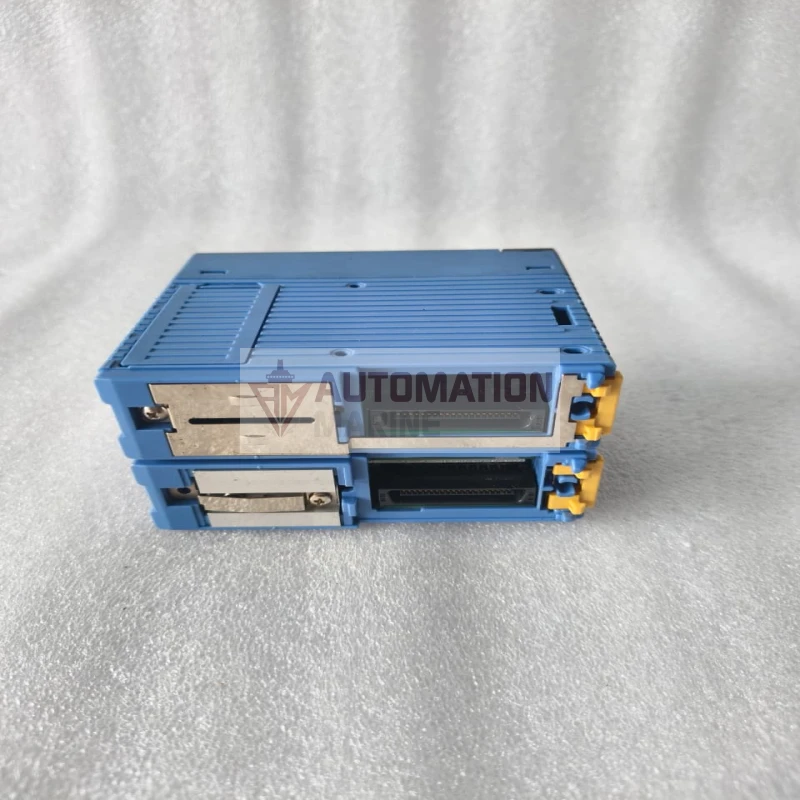

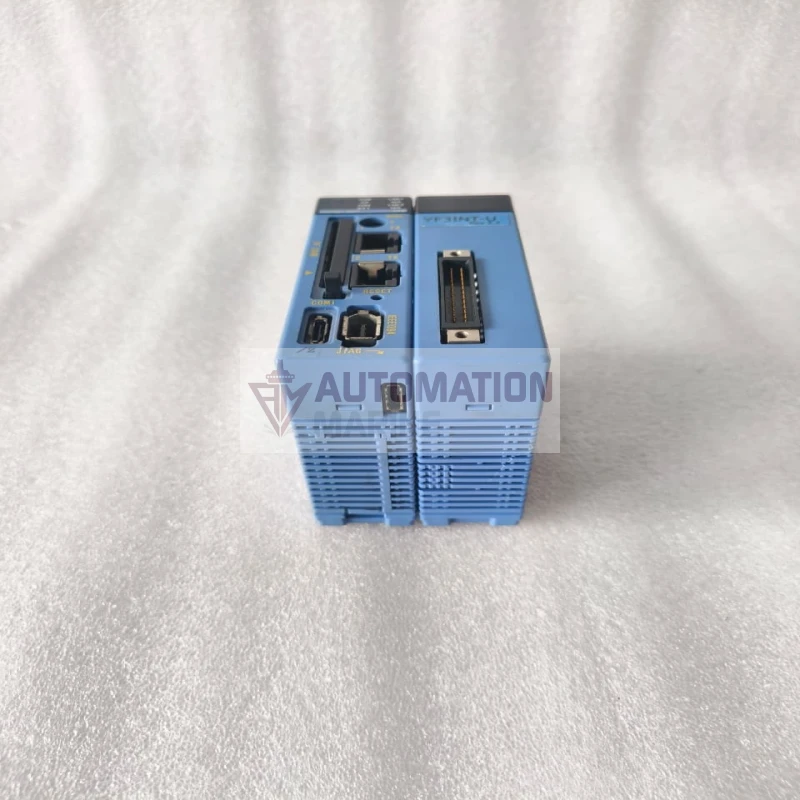

Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | YOKOGAWA |
|---|---|
| Category | MODULE |
The Yokogawa F3RP61-2R RTOS CPU Module is an industrial-grade CPU/controller module designed for the Yokogawa e-RT3 and FA-M3 automation platforms. It combines a 533 MHz MPC8347E processor, 64 MB Flash ROM and 128 MB SDRAM to provide a capable computing platform for real-time industrial control, embedded applications and automation systems.
The F3RP61-2R provides two 10BASE-T/100BASE-TX Ethernet ports, an RS-232-C serial interface and PCMCIA/CF support, making it suitable for industrial networking, communication, application execution and data-handling requirements. Its RAS functionality includes power-failure detection and watchdog timer monitoring for improved system supervision.
Designed for integration with the FA-M3/e-RT3 I/O ecosystem, the F3RP61-2R is well suited for machine automation, process control, industrial monitoring, embedded control and legacy system maintenance. Yokogawa's documentation identifies the F3RP61-2R as a legacy model, with F3RP61-2R/2N listed as the later version featuring a changed COM-port connector.
- Brand: Yokogawa Electric
- Model: F3RP61-2R
- Product Type: RTOS CPU Module
- Platform: Yokogawa e-RT3 / FA-M3 Series
- CPU: MPC8347E, 533 MHz
- Operating System: Linux-compatible e-RT3 platform
- Flash ROM: 64 MB, including boot ROM
- SDRAM: 128 MB
- Ethernet: Dual 10BASE-T / 100BASE-TX ports
- Serial Interface: RS-232-C
- PCMCIA/CF Interface: Supported
- Industrial RAS Functions: Power-failure detection and watchdog timer
- Application: Industrial automation, machine control, embedded control and data processing
- Legacy: F3RP61-2R/2N is identified by Yokogawa as the later version with a changed COM-port connector.
