Power Electronics SE-4E15 Automatic Voltage Regulator (AVR) – 3-Phase, 20A Continuous, 350–500V AC Sensing, 0–120V DC Output
Specification Details
Brand: Power Electronics
Model: SE-4E15
Product Type: Automatic Voltage Regulator (AVR)
AVR Type: Three-Phase Full-Wave Phase-Control AVR
Application: Generator Voltage Regulation / Excitation Control
Generator Type: High-Current Brushless Generators
Input Requirement: 3 Phase
Sensing Input: 350–500V AC
Excitation Output: 0–120V DC
Continuous Output Current: 20A
Isolation Transformer: 1.5 kVA Special Transformer
Mounting: Industrial Enclosure / Panel Mounting
Primary Application:Brushless Generator Excitation
Product Category: Industrial Electrical / Generator AVR
Country Of Origin: Made In PEANIA, GREECE
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | OTHER BRAND |
|---|---|
| Category | AUTOMATIC VOLTAGE REGULATOR (AVR) |
The Power Electronics SE-4E15 Automatic Voltage Regulator (AVR) is a high-performance generator excitation and voltage regulation controller designed for demanding industrial and power-generation applications. The SE-4E15 uses a three-phase full-wave phase-control design and is specifically suited for high-current brushless generators.
According to the manufacturer's published specifications, the SE-4E15 accepts a 350–500V AC three-phase sensing input and provides an excitation output of 0–120V DC with 20A continuous current capability. The AVR is powered through a 1.5 kVA special transformer that provides isolation, supporting reliable operation within generator excitation systems.
This Power Electronics AVR is suitable for use in industrial generators, marine generator systems, brushless alternators, power-generation equipment and generator excitation control applications where stable automatic voltage regulation is required.

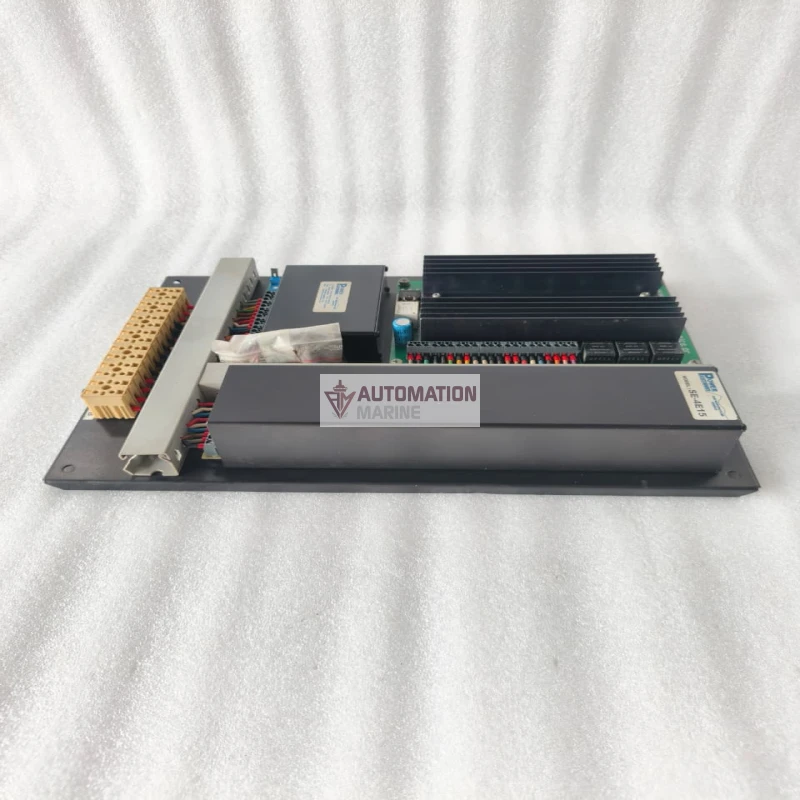

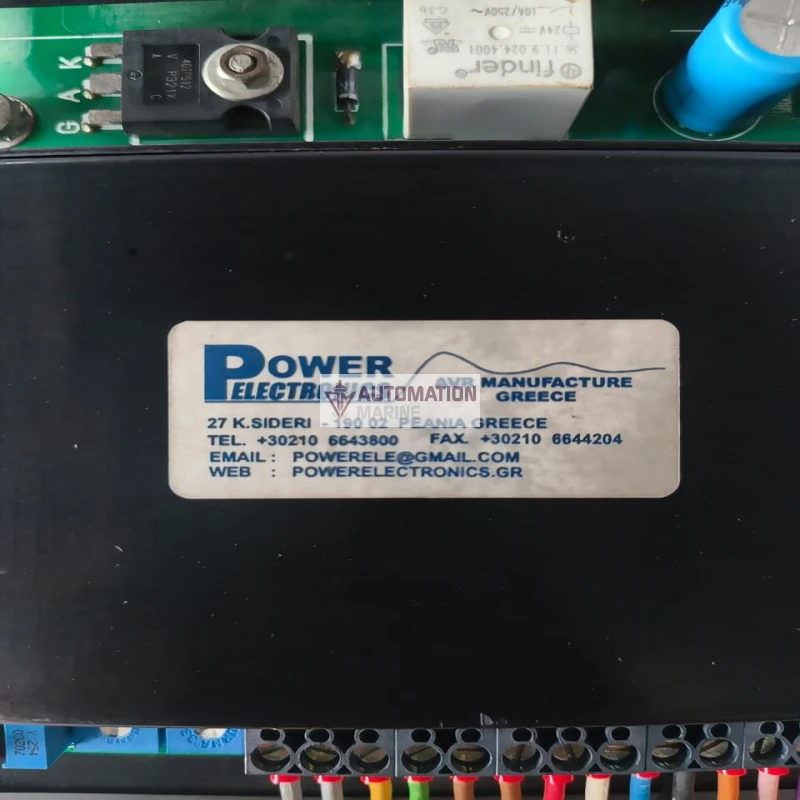

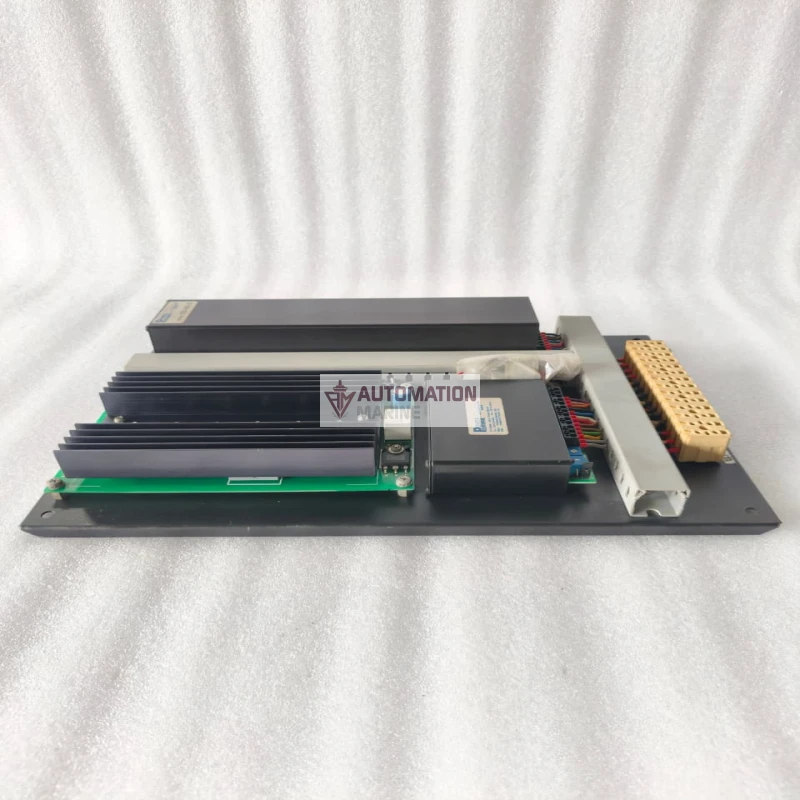

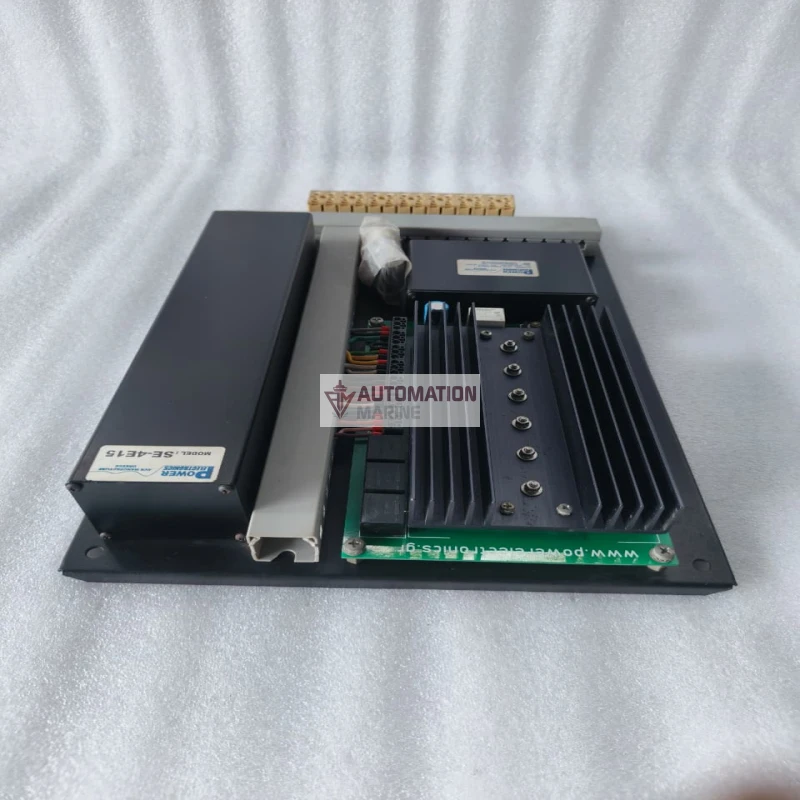

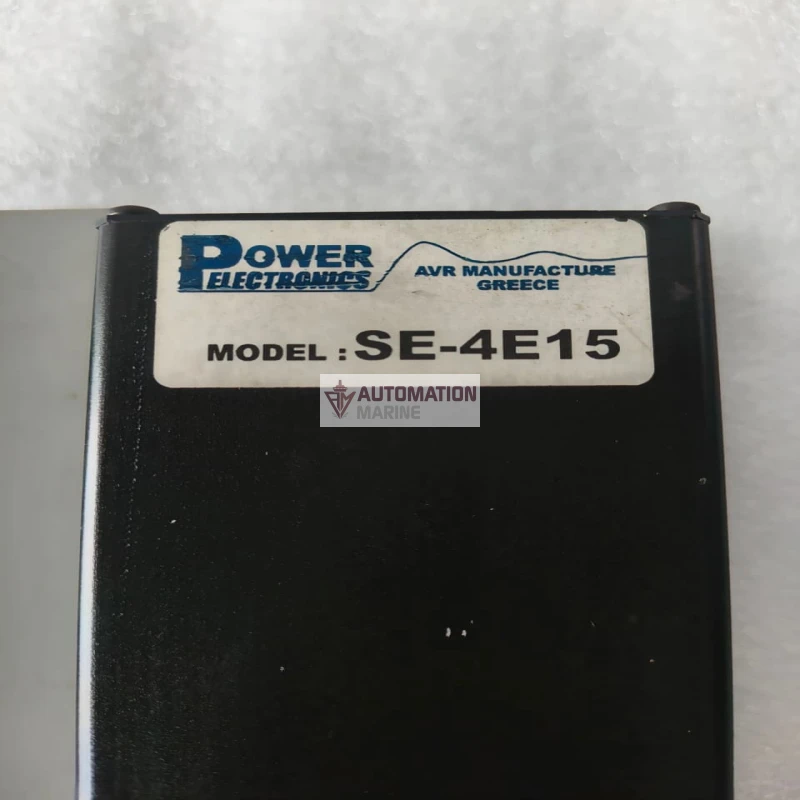

The product shown in the photographs is marked MODEL: SE-4E15 and AVR Manufacture Greece. The physical condition should be evaluated from the supplied photographs and tested before installation if sold as used or surplus equipment.
- Genuine Power Electronics SE-4E15 Automatic Voltage Regulator (AVR) manufactured in Greece.
- Designed as a high-performance three-phase full-wave phase-controlled AVR.
- Suitable especially for high-current brushless generators.
- 3-phase sensing input with a sensing range of approximately 350–500V AC.
- Excitation output rated up to 0–120V DC.
- 20A continuous output current according to manufacturer specifications.
- Powered through a 1.5 kVA special isolation transformer, providing electrical isolation.
- Suitable for industrial generator excitation and voltage regulation applications.

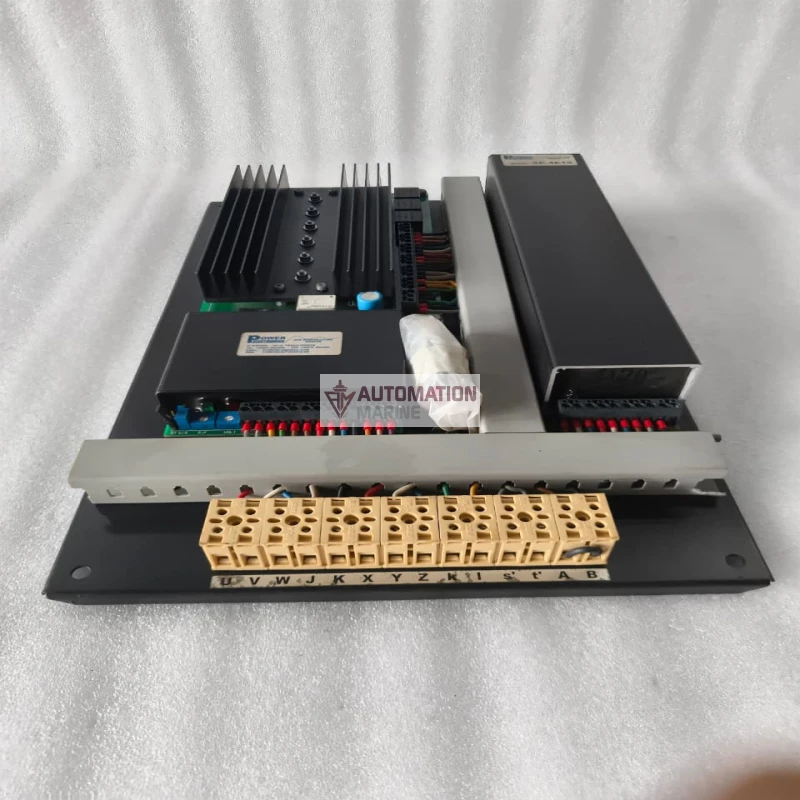

- Compact industrial enclosure with terminal connections for easy integration.
- Model clearly identified as SE-4E15.
- Manufactured by Power Electronics, Peania, Greece.
