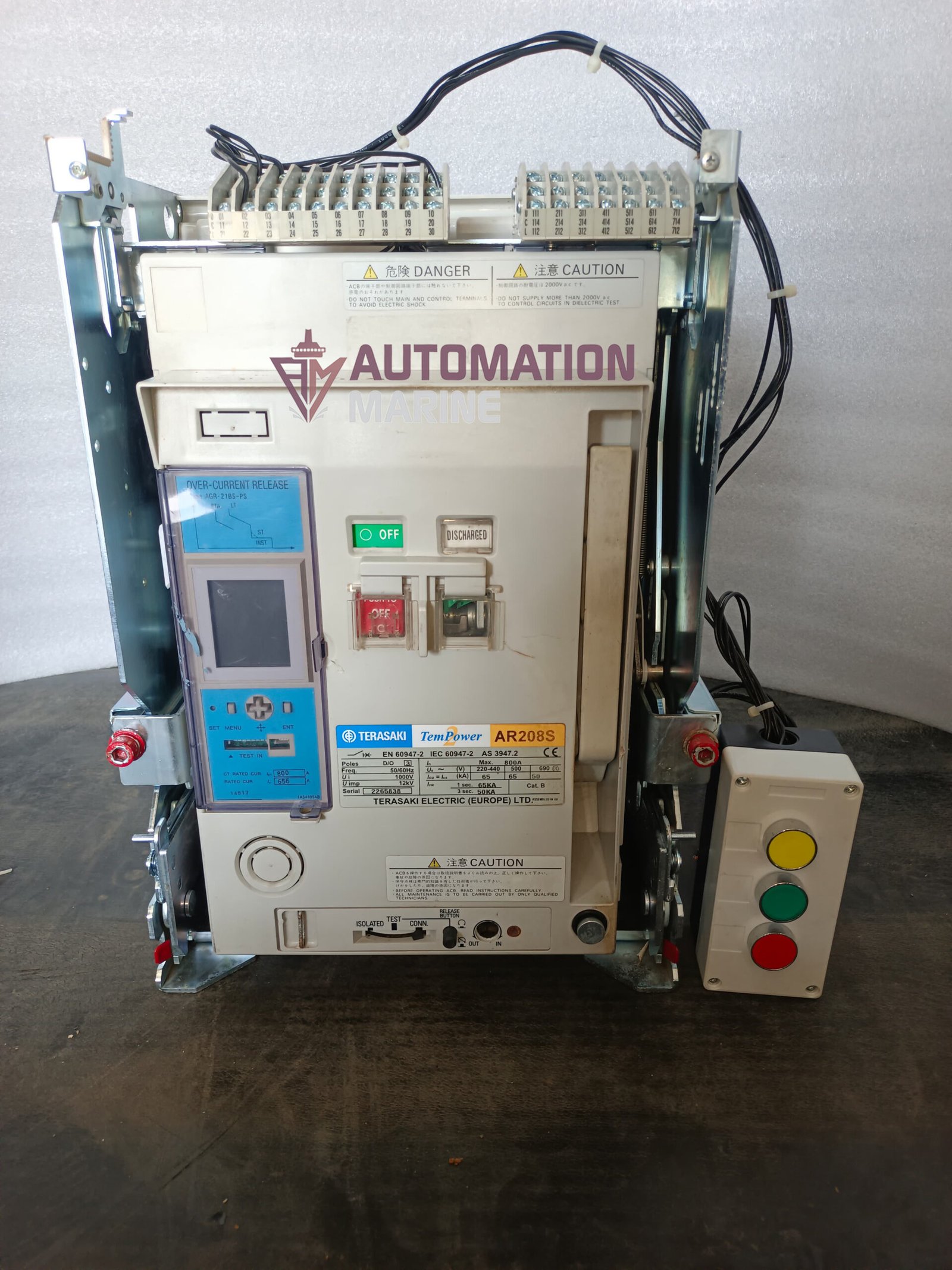

Terasaki TemPower AR208S Air Circuit Breaker (ACB) 800A 3 Pole Drawout Type | 1000V | 65kA

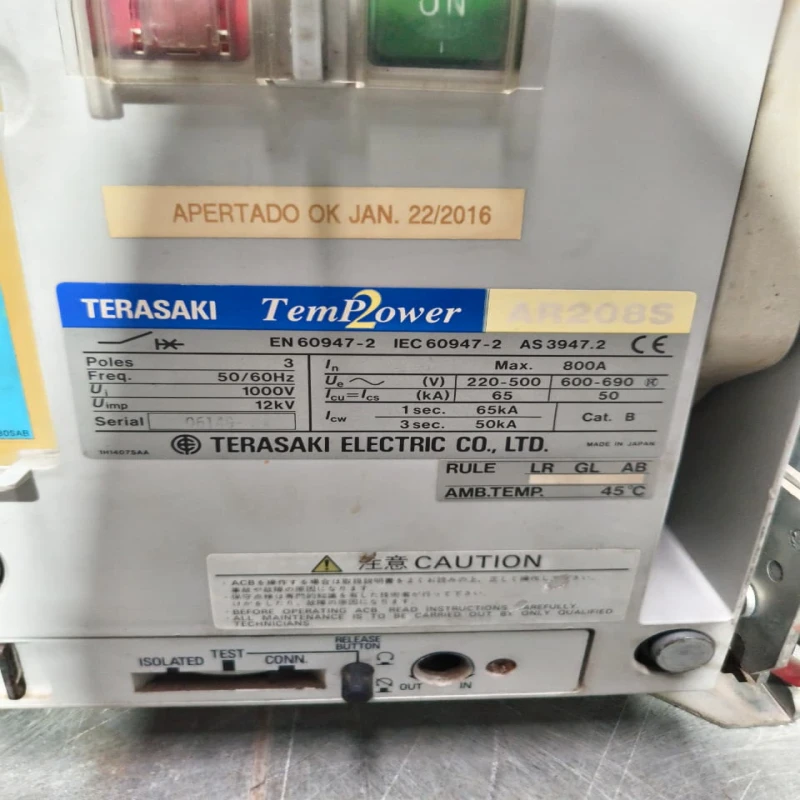

Specification Details
Brand: Terasaki
Series: TemPower
Model: AR208S
Product Type: Air Circuit Breaker (ACB)
Rated Current: 800A
Number of Poles: 3 Pole Automatic (EDO)
Installation Type: Drawout
Rated Voltage (Ue): 220-690V AC
Motor :- 220V AC
On Coil :- 220V AC
Off Coil :- 220V AC
Maximum Insulation Voltage (Ui): 1000V
Impulse Voltage (Uimp): 12kV
Rated Frequency: 50/60Hz
Breaking Capacity: 65kA @ 220-500V AC
Breaking Capacity: 50kA @ 600-690V AC
Short-Time Withstand Current: 65kA (1 sec), 50kA (3 sec)
Utilization Category: Category B
Standard: IEC 60947-2 / EN 60947-2
Ambient Temperature: 45°C
Manufacturer: Terasaki Electric Co., Ltd.
Typical Applications: Switchgear Panels, MCC Panels, Generator Panels, Marine Systems, Industrial Distribution, Power Plants, Electrical Control Panels
Status: Used Excellent Working (As per photos & Video)
Country Of Origin: Made In Japan
Shipping: Fast & Safe Dispatch Across India & Worldwide Available.
| Brand | TERASAKI |
|---|---|
| Category | AIR CIRCUIT BREAKER (ACB) |
The TERASAKI TemPower2 AR208S Air Circuit Breaker (ACB) 800A 3 Pole is a high-performance low-voltage circuit protection device designed to provide dependable protection and control for modern electrical distribution systems. As part of the renowned TemPower2 series from TERASAKI Electric, the AR208S delivers outstanding protection against overloads, short circuits, and ground faults while ensuring maximum operational reliability and safety.
With an 800 Amp current rating and 3-pole configuration, this air circuit breaker is ideal for protecting electrical systems in industrial facilities, commercial buildings, marine vessels, power generation plants, and utility infrastructures. The breaker incorporates advanced arc interruption technology and robust mechanical construction, ensuring reliable performance even under demanding operating conditions.
The TERASAKI AR208S is designed for efficient operation, simplified maintenance, and long service life. Its compact footprint and proven reliability make it a preferred choice for switchgear manufacturers, electrical contractors, facility managers, and maintenance professionals requiring dependable low-voltage power protection solutions.
- Genuine TERASAKI TemPower2 AR208S Air Circuit Breaker
- Rated Current: 800A
- 3 Pole Configuration
- Advanced Low Voltage Circuit Protection Solution
- Reliable Overload, Short Circuit, and Ground Fault Protection
- Compact and High-Performance TemPower2 Design
- Excellent Electrical and Mechanical Durability
- Suitable for Main and Sub Distribution Applications
- Ideal for Industrial, Commercial, Marine, and Utility Installations
- Easy Maintenance and Service Accessibility
- Trusted TERASAKI Engineering and Global Quality Standards
