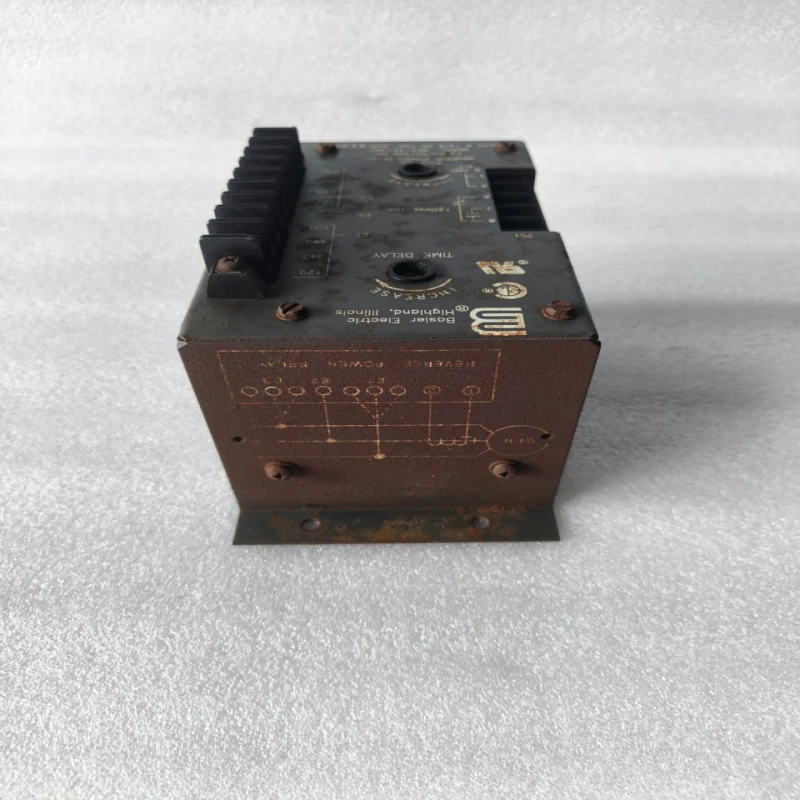

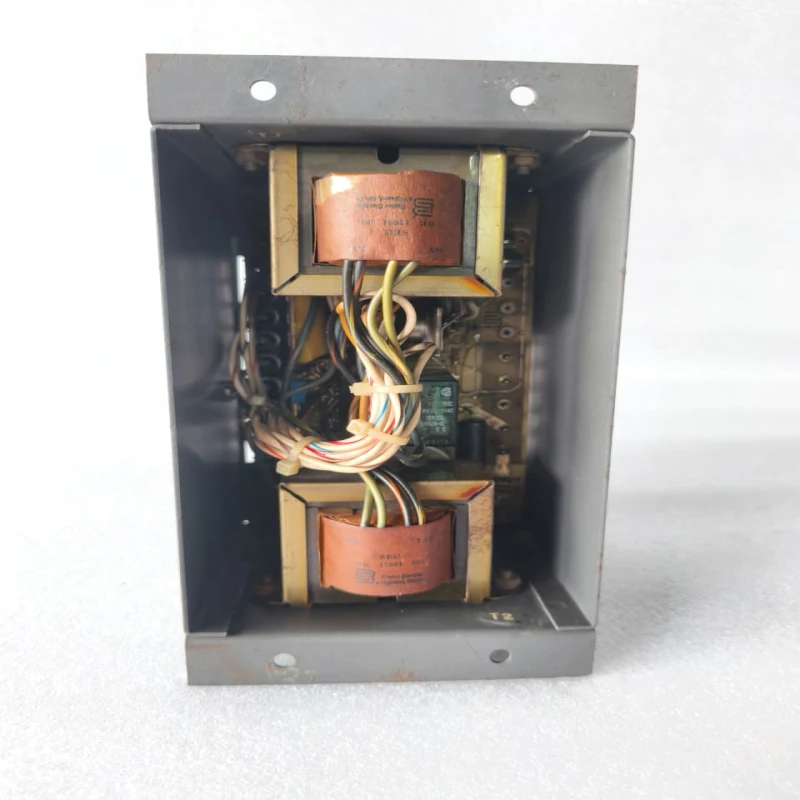

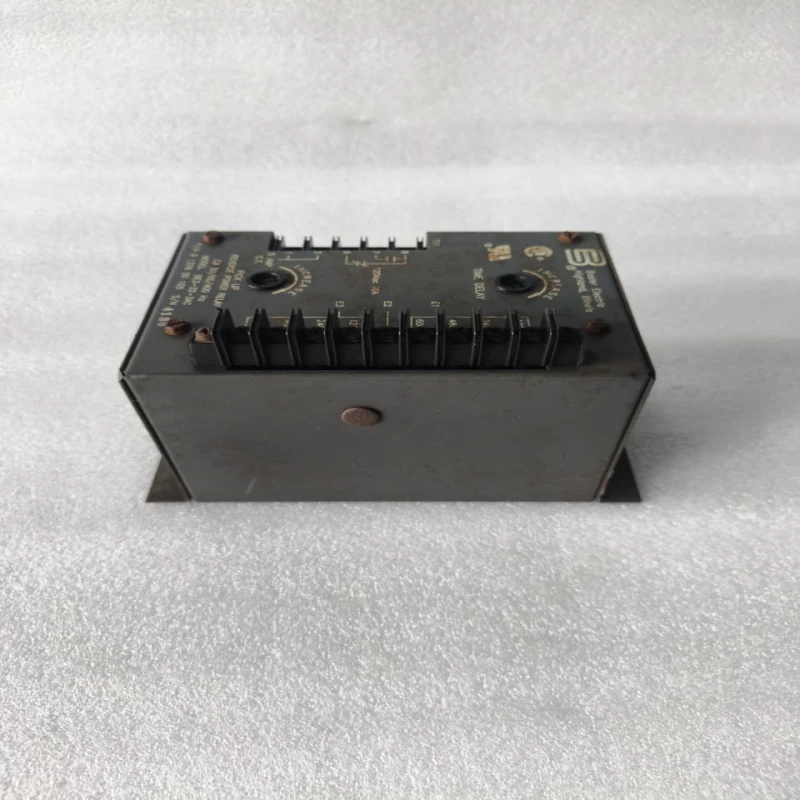

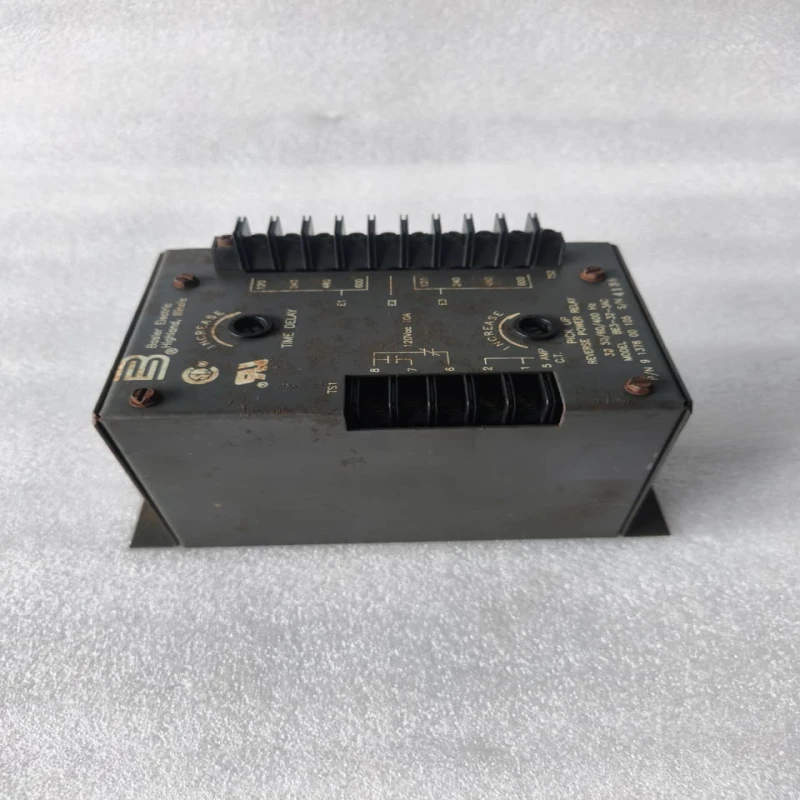

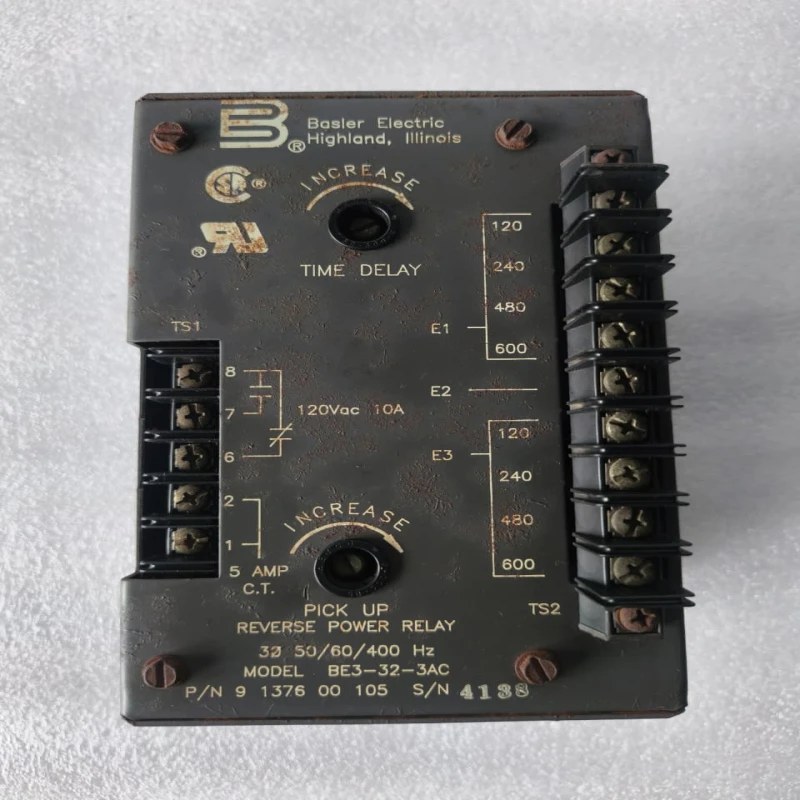

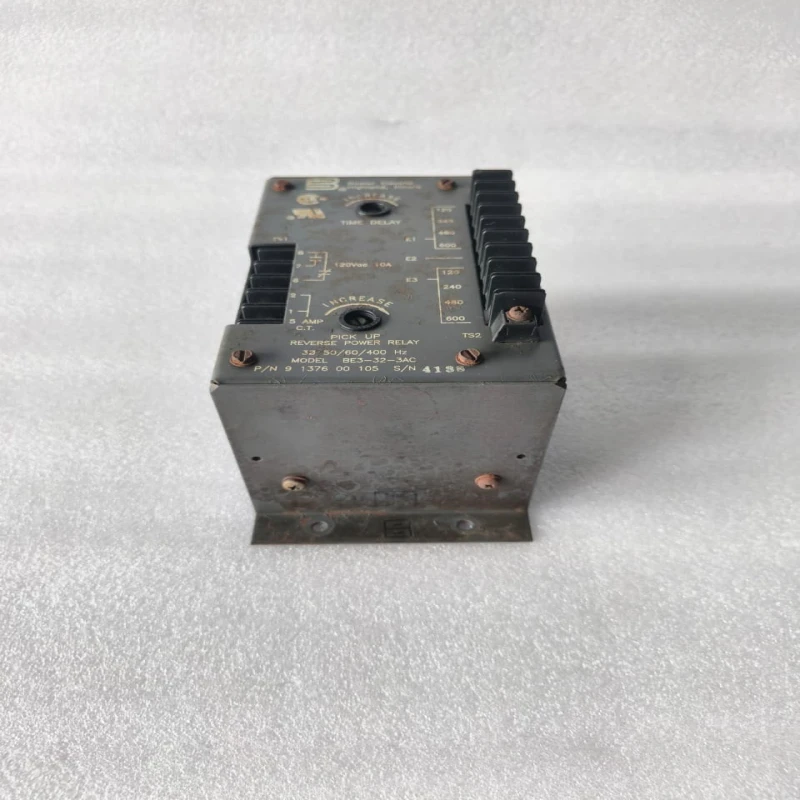

Basler Electric BE3-32-3AC Reverse Power Relay P/N 9137600105 | 3Ø 50/60Hz 400Hz Generator Protection Relay | 5A CT Input
Specification Details
Brand: Basler Electric
Model: BE3-32-3AC
Product Type: Reverse Power Relay
Part Number: 9137600105
Application: Generator Protection
Phase: 3 Phase
Frequency: 50/60/400 Hz
CT Input: 5 Amp CT
Voltage Selection: 120 / 240 / 480 / 600 VAC
Pickup Adjustment: Adjustable
Time Delay: Adjustable
Relay Contact Rating: 120 VAC, 10A
Mounting Type: Panel Mount
Terminal Type: Screw Terminal
Protection Function: Reverse Power Detection
Suitable For: Diesel Generator, Gas Generator, Marine Generator, Power Plant
Status: Used Excellent Working (As per photos)
Country Of Origin: Made In USA
Shipping: Fast & Safe Dispatch Across India & Worldwide Available.
| Brand | OTHER BRAND |
|---|---|
| Category | RELAY |
The Basler Electric BE3-32-3AC Reverse Power Relay (P/N 9137600105) is a high-performance generator protection relay engineered to detect reverse power flow in synchronous generators. This relay safeguards prime movers such as diesel engines, gas turbines, and steam turbines by disconnecting the generator when power begins flowing from the electrical system back into the generator.
Featuring adjustable Pick-Up and Time Delay controls, the BE3-32-3AC allows operators to customize protection settings according to specific generator requirements. Designed for 3-phase systems operating at 50Hz, 60Hz, or 400Hz, it accepts 5A CT inputs and supports selectable voltage ranges of 120V, 240V, 480V, and 600V AC.
Widely used in industrial plants, marine vessels, standby power systems, utility substations, and generator control panels, the Basler BE3-32-3AC delivers dependable generator protection with long-term operational reliability.
- Genuine Basler Electric BE3-32-3AC Reverse Power Relay
- Part Number: 9137600105
- Designed for generator reverse power protection
- Suitable for 3-Phase (3Ø) AC generator systems
- Supports 50Hz, 60Hz, and 400Hz applications
- Adjustable Pick-Up setting for precise reverse power detection
- Adjustable Time Delay control to minimize nuisance tripping
- Compatible with 5 Amp Current Transformer (CT)
- Voltage selectable for 120V / 240V / 480V / 600V AC
- Heavy-duty industrial design for power plants, marine, and industrial generators
- Reliable protection against generator motoring conditions
- Easy terminal wiring with clearly marked connections
