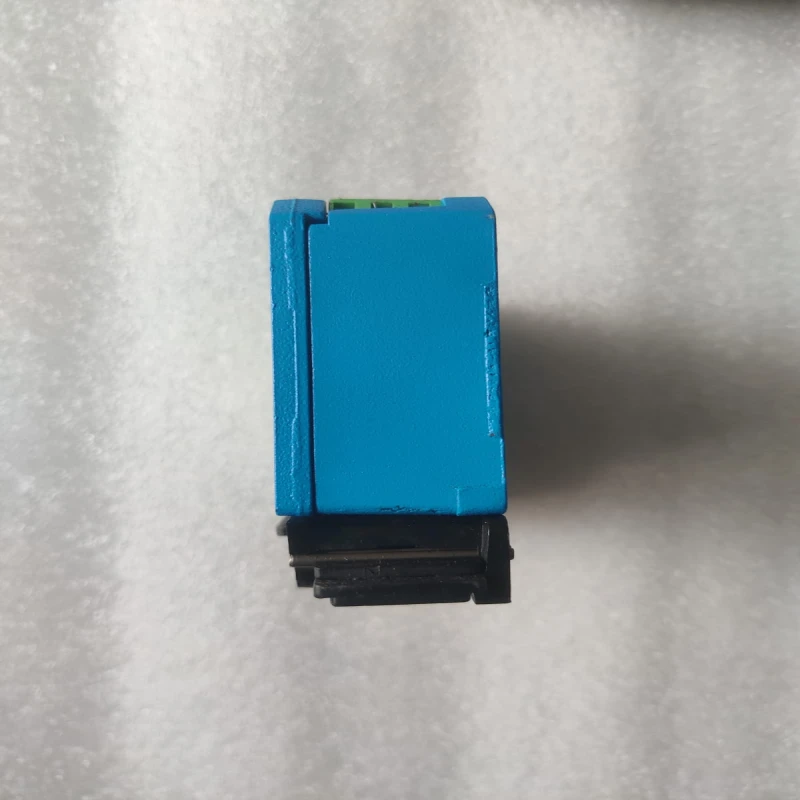

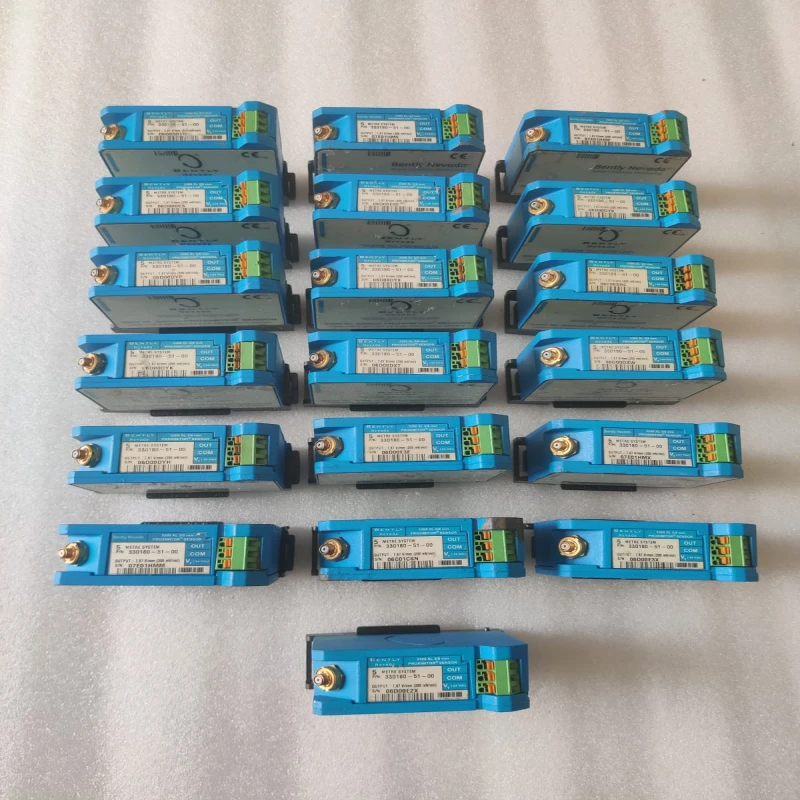

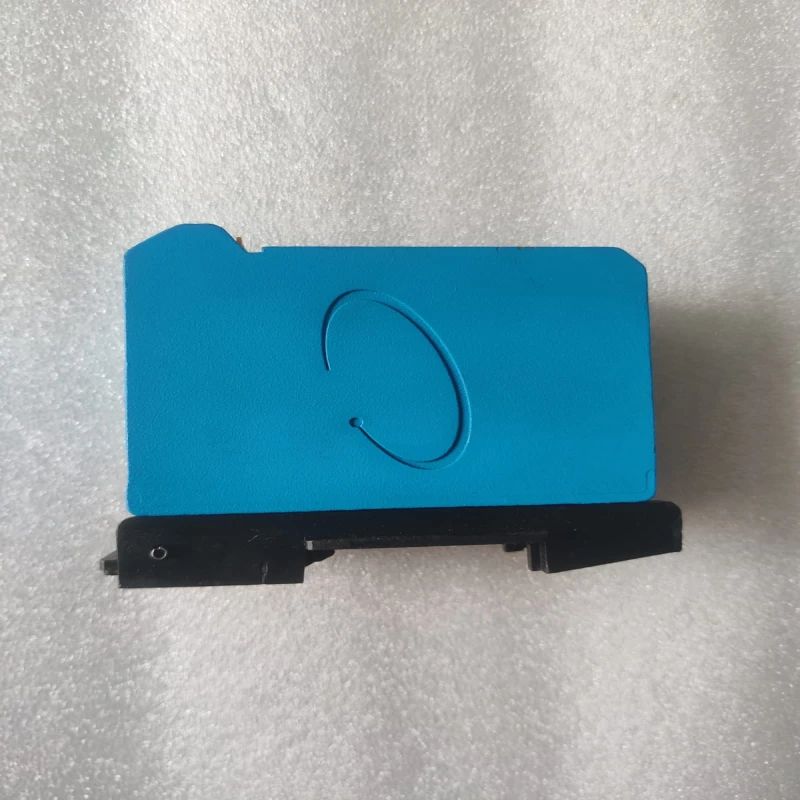

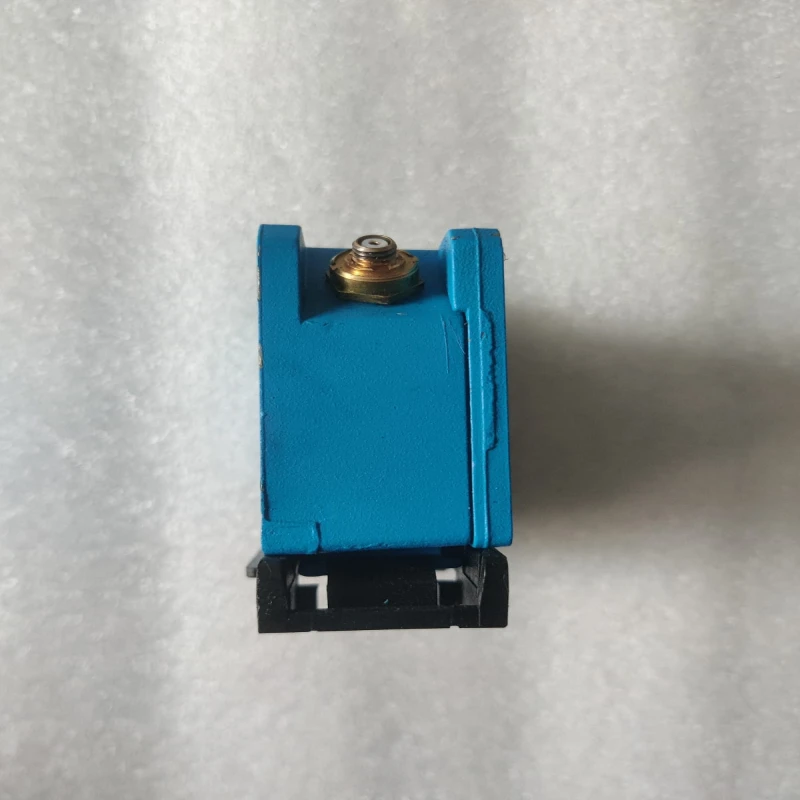

Bently Nevada 330180-51-00 3300 XL 5/8 mm Proximitor Sensor, 5 Metre System, DIN Mount, 24 VDC
Specification Details
Brand: Bently Nevada
Manufacturer: Bently Nevada / GE
Series: 3300 XL
Model: 330180-51-00
Product Type: Proximitor Sensor
Sensor Type: 5/8 mm Proximity System
System Length: 5.0 m / 16.4 ft
Mounting Type: DIN Mount
Output Sensitivity: 7.87 V/mm / 200 mV/mil
Supply Voltage: -24 VDC nominal
Application: Machinery Vibration & Position Monitoring
Compatible System: 3300 / 3300 XL Proximity Transducer System
Compatible Probe: 3300 Series 5 mm / 3300 XL 8 mm compatible systems
Installation: Industrial Control Panel / DIN Rail
Country Of Origin: Made In USA
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | OTHER BRAND |
|---|---|
| Category | OTHERS |
The Bently Nevada 330180-51-00 3300 XL 5/8 mm Proximitor Sensor is an industrial proximity signal-conditioning device designed for machinery condition monitoring and rotating equipment protection. It is part of the Bently Nevada 3300 XL Proximity Transducer System and is configured for a 5.0 metre (16.4 ft) system length with DIN mounting.
The Proximitor Sensor works with compatible 3300-series 5 mm and 3300 XL 8 mm proximity probes and extension cables to provide an output proportional to the distance between the probe and the monitored target. This makes it suitable for applications involving shaft vibration, shaft position and machine condition monitoring.
The 3300 XL design supports high-density DIN-rail installation and also offers compatibility with traditional panel-mount arrangements. Its integrated mounting base provides electrical isolation, while the design incorporates enhanced RFI/EMI immunity for demanding industrial environments.

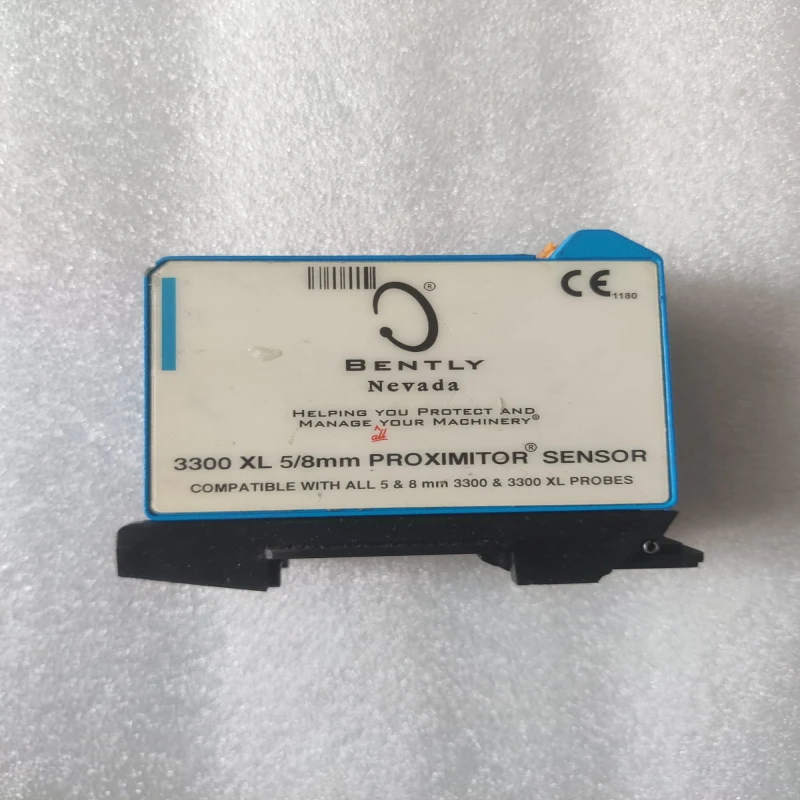

Important: The pictured unit is identified as P/N 330180-51-00. The label also indicates 5 METRE SYSTEM, 7.87 V/mm (200 mV/mil) output sensitivity and Vₜ (-24 Vdc). Please verify the exact probe, extension cable and system configuration required for your application before purchase.
- Brand: Bently Nevada
- Series: 3300 XL
- Part Number: 330180-51-00
- Product Type: 5/8 mm Proximitor Sensor
- System Length: 5.0 Metres / 16.4 Feet
- Mounting: DIN Rail Mount
- Output Sensitivity: 7.87 V/mm (200 mV/mil), as marked on the product
- Supply: -24 VDC nominal system supply
- Designed for non-contact vibration and shaft-position monitoring
- Compatible with 3300/3300 XL 5 mm and 8 mm proximity probe systems.
- Suitable for industrial machinery condition monitoring and rotating equipment applications
- Compact design suitable for high-density DIN-rail installations
- Improved resistance to RFI/EMI interference.
