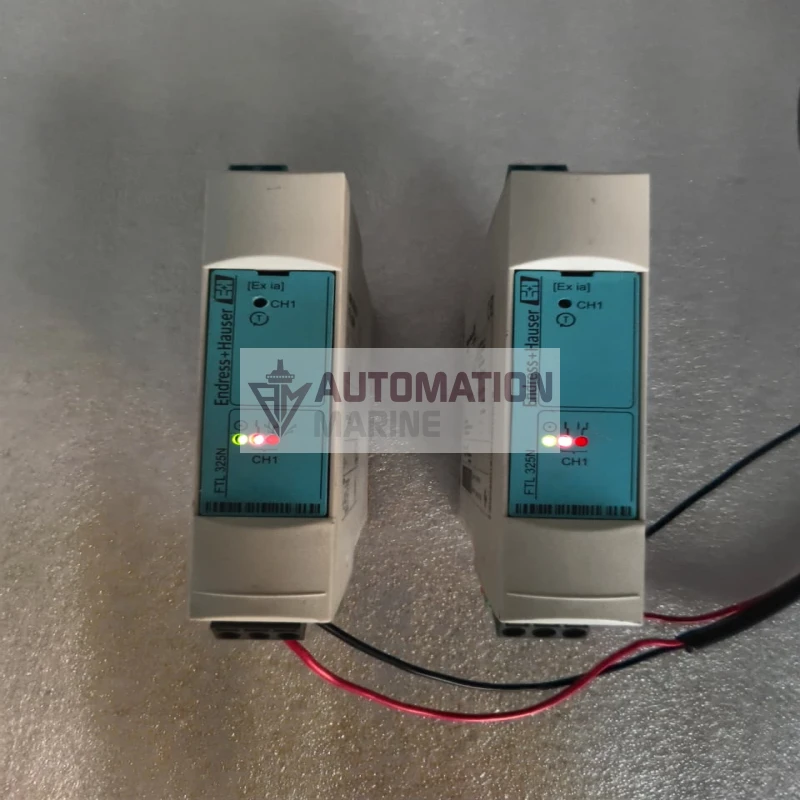

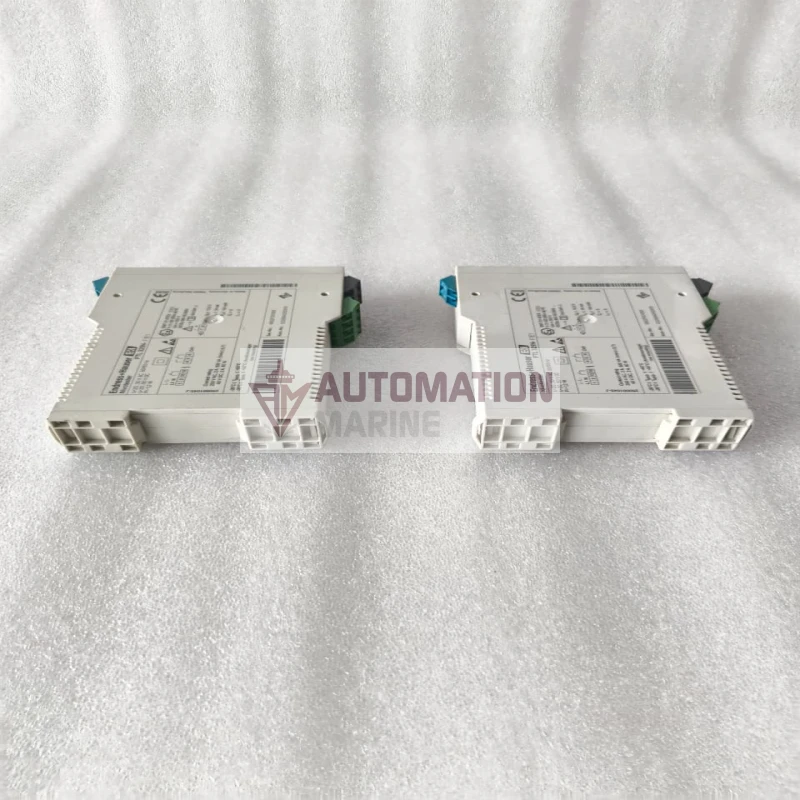

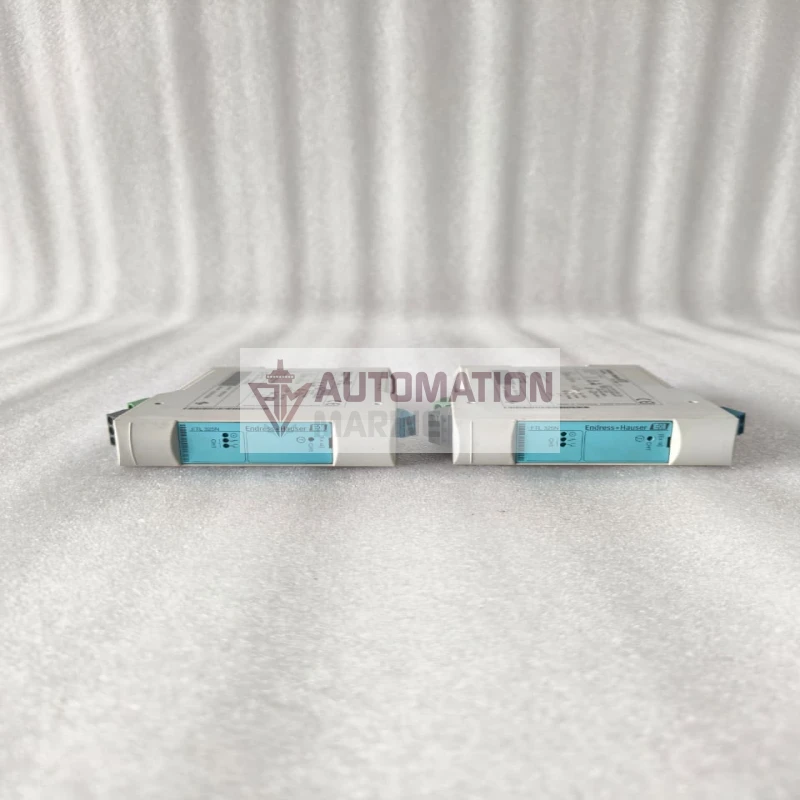

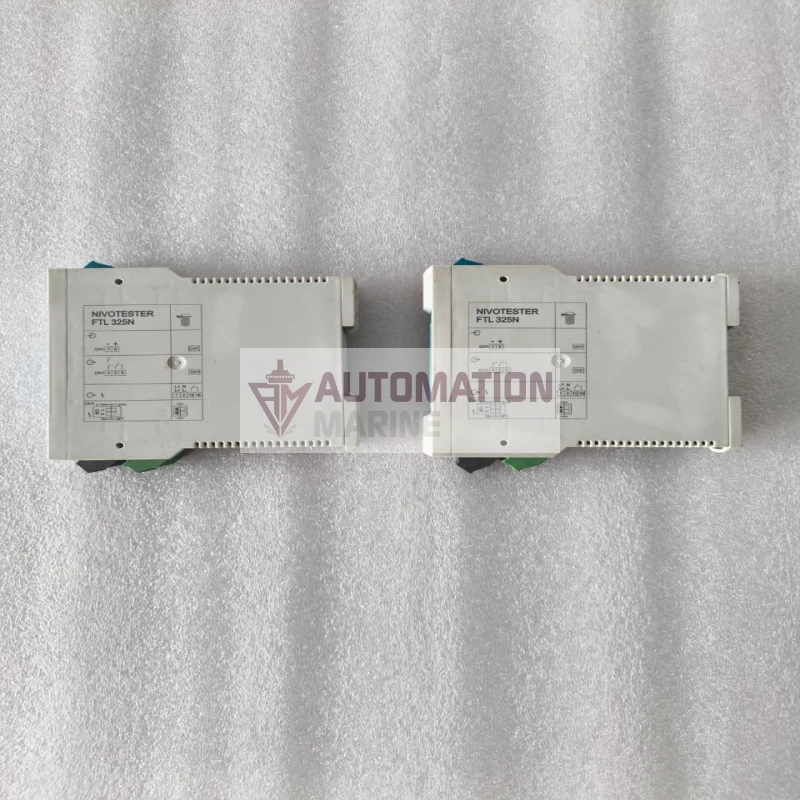

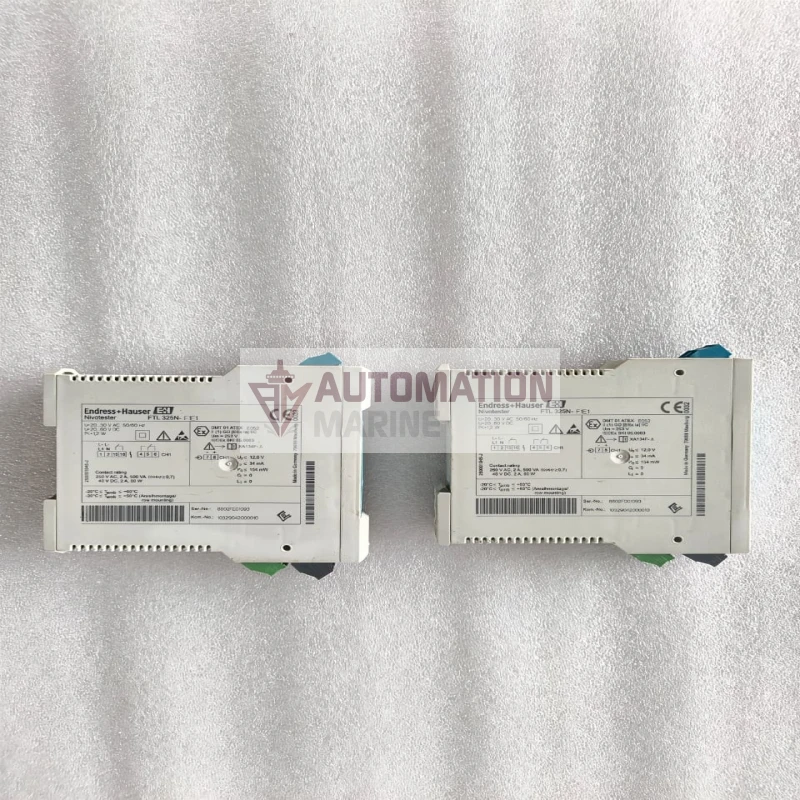

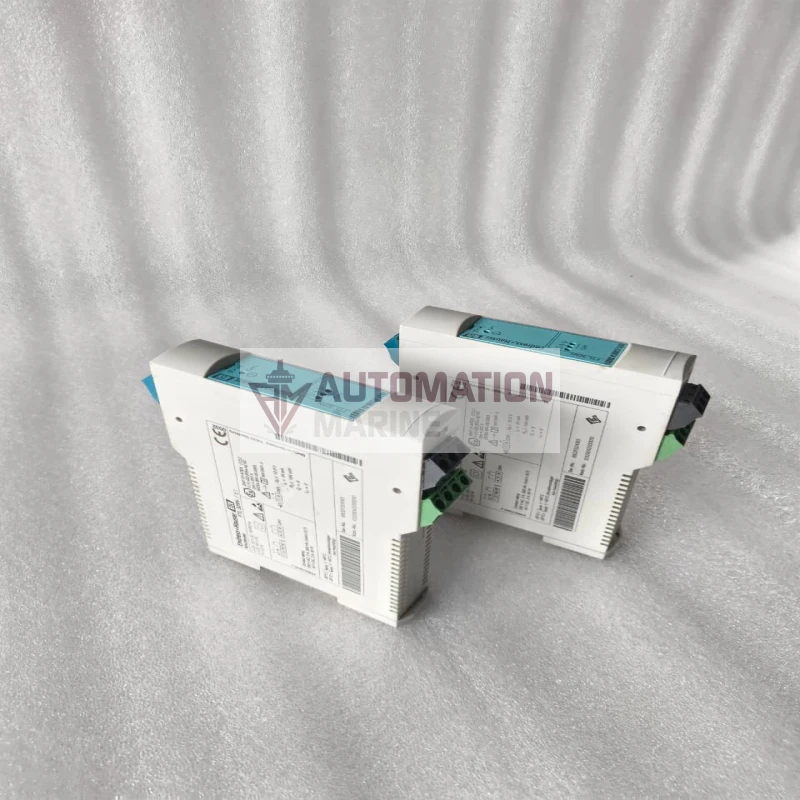

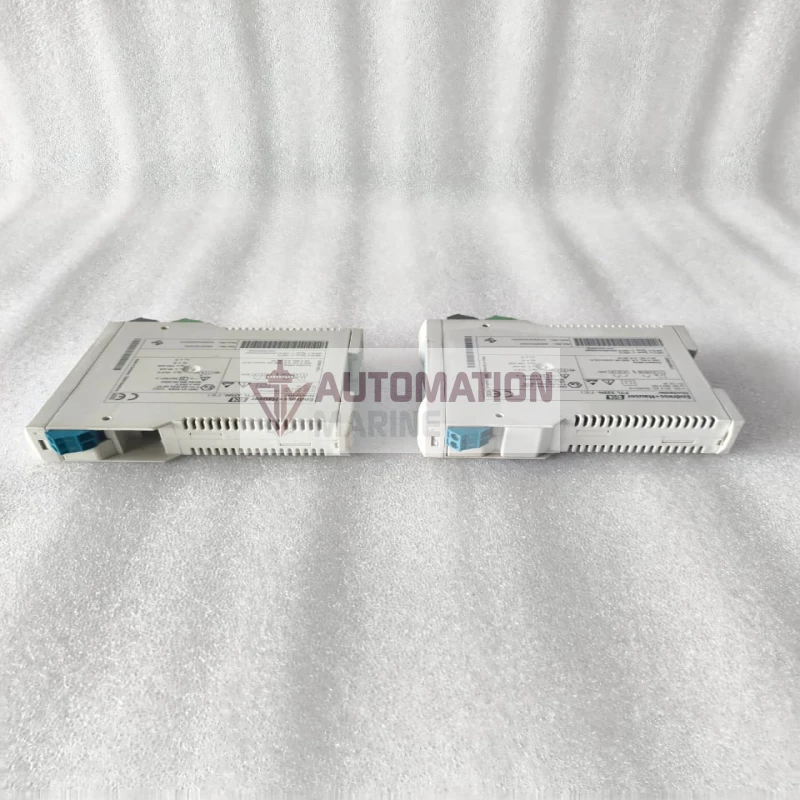

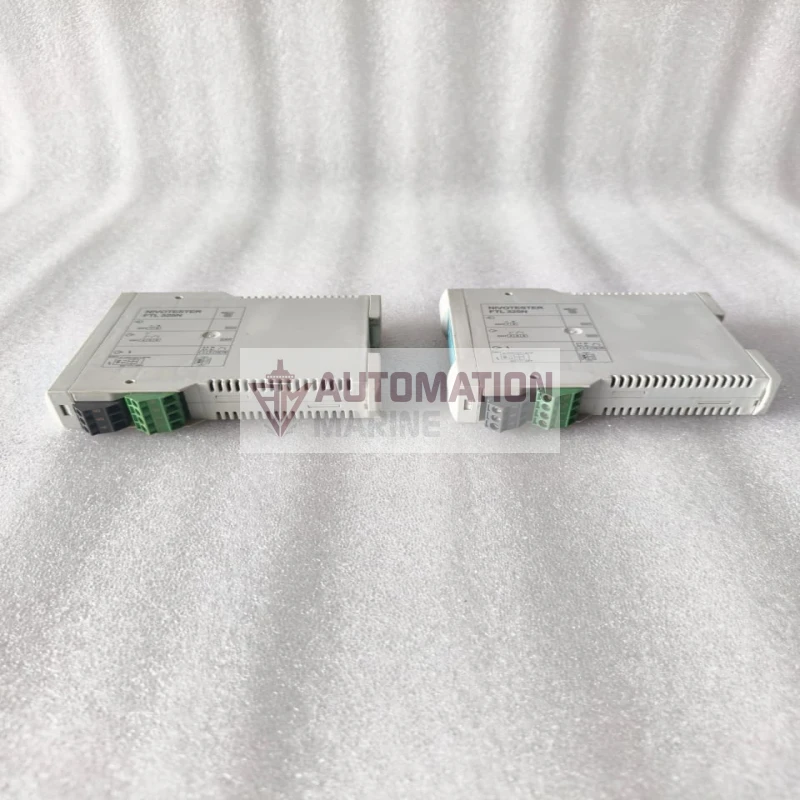

Endress+Hauser Nivotester FTL325N-F1E1 Vibronic Point Level Switch | Single-Channel NAMUR Isolating Amplifier
Specification Details
Brand: Endress+Hauser
Model Code: FTL325N-F1E1
Product Series: Nivotester FTL325N
Product Type: Vibronic Point Level Switch Interface / Isolating Amplifier
Channel: Single Channel
Signal Technology: NAMUR
Measurement Principle: Vibronic

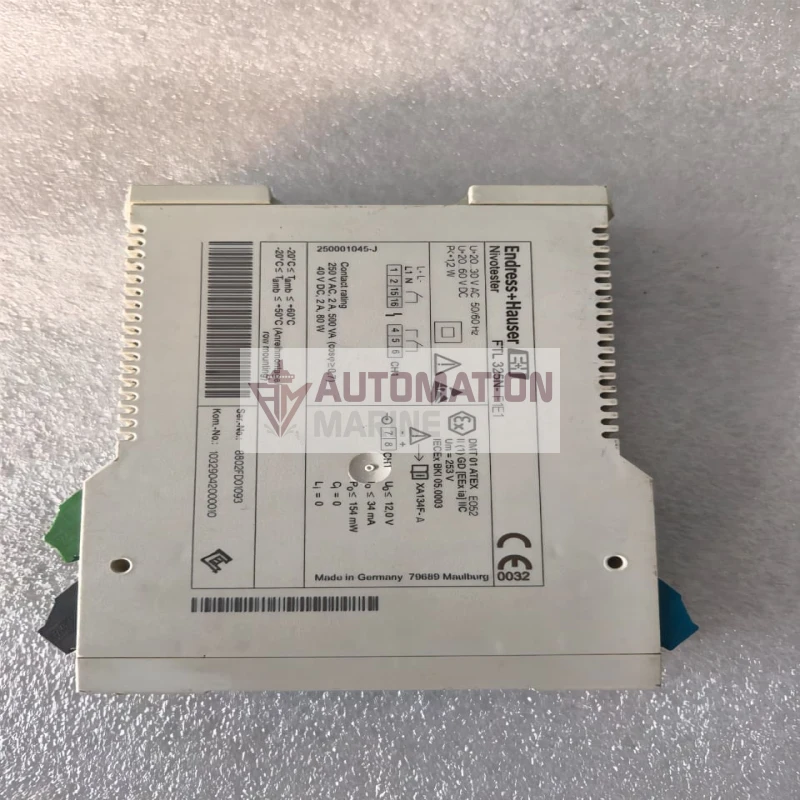

Input Parameters: U₀ ≤ 12.0 V, I₀ ≤ 34 mA, P₀ ≤ 154 mW
Relay Output Contacts: 1x SPDT Level Relay, 1x SPST Alarm/Fault Relay
Contact Rating: Max 250 V AC, 2 A, 500 VA / 40 V DC, 2 A, 80 WAmbient
Temperature Range: -20°C to +50°C
Compliance & Standards: CE, ATEX, IECEx, WHG Overfill Prevention
Sensor Compatibility: Compatible Endress+Hauser vibronic level sensors
Function: Sensor Signal Evaluation and Electrical Isolation
Output Function: Switching output for control and alarm applications
Installation: Control cabinet / DIN-rail type installation
Typical Applications: Point Level Detection, Level monitoring, overfill protection, dry-run protection, level alarms
Automation Integration: PLC, control system and process instrumentation
Model Family: Nivotester
Country Of Origin: Made In GERMANY
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | ENDRESS+HAUSER |
|---|---|
| Category | OTHERS |
The Endress+Hauser Nivotester FTL325N-F1E1 is a professional vibronic point level switching interface and single-channel NAMUR isolating amplifier designed for use with compatible Endress+Hauser point level sensors. It evaluates the sensor signal and provides a reliable switching output for integration into industrial control and automation systems.
The Nivotester FTL325N series is commonly used where dependable point level detection is required for liquids and bulk solids. By providing electrical isolation between the sensor circuit and the control-side circuitry, the unit helps simplify integration with PLCs, process controllers, alarms and industrial control panels.
The FTL325N-F1E1 is well suited for industrial applications involving tank level monitoring, overfill protection, dry-run protection, process control and level alarm systems, subject to the specifications of the connected sensor and system configuration.
Its compact industrial design makes the Nivotester a practical solution for process instrumentation, factory automation and level-control applications where reliable signal conditioning and isolation are required.
- Genuine Endress+Hauser Nivotester FTL325N-F1E1 level switching interface
- Designed for vibronic point level measurement applications
- Single-channel NAMUR isolating amplifier for reliable signal evaluation
- Interfaces with compatible Endress+Hauser vibronic level sensors
- Provides electrical isolation between the field sensor and control system
- Suitable for industrial level detection and process automation
- Supports reliable MIN/MAX point level switching applications when configured with a compatible sensor
- Compact DIN-rail style control-panel installation concept
- Ideal for use in PLC, control panel and industrial instrumentation systems
- Suitable for demanding industrial process environments
- Intrinsically Safe Design: Features integrated intrinsically safe Ex ia signal circuits certified for hazardous, explosion-prone areas.
- Universal NAMUR Input: Seamlessly connects with standard NAMUR sensors, including high-performance Endress+Hauser Liquiphant series point level detectors.
- Flexible Power Supply: Highly adaptable logic architecture running efficiently across 20...30 V AC / 20...60 V DC power systems.
- SIL2 Safety Compliant: Engineered for high-integrity process safety loops up to SIL2 in accordance with IEC 61508 / IEC 61511 protocols.
- Convenient DIN Rail Mounting: Built with a standard 22.5 mm width profile for rapid assembly inside electrical control panels.
