R. STAHL 9167/13-11-00 ISOLATING REPEATER – Loop-Powered Ex i Signal Isolator, 1-Channel, 25V, 99mA
Specification Details
Brand: R. STAHL
Series: ISpac 9167
Part Number: 9167/13-11-00
Product Type: Isolating Repeater
Function: Loop-Powered Signal Isolation
Number of Channels: 1
Power Supply: Loop Powered / No Auxiliary Power
Output Type: Intrinsically Safe Ex i
Uo – Output Voltage: 25 V
Io – Output Current: 99 mA
Po – Output Power: 613 mW
Maximum Load Resistance: 800 Ω
Communication: HART, bidirectional
Application: Control valves, I/P transmitters, analog displays, fire & gas detectors
Installation : DIN rail
Maximum Ambient Temperature: Up to +70°C*
Country of Origin: Made In Germany
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | OTHER BRAND |
|---|---|
| Category | OTHERS |
The R. STAHL 9167/13-11-00 Isolating Repeater is an industrial-grade, loop-powered signal isolation interface from the ISpac Series 9167, designed for reliable signal transmission in hazardous and intrinsically safe industrial environments.
This 1-channel Ex i isolating repeater operates without a separate auxiliary power supply, making it suitable for applications where space, wiring simplicity and intrinsic safety are important. The device provides galvanic isolation between the input and output circuits and can be used with applications such as control valves, I/P converters, analog indicators, and fire and gas detectors.
For the 9167/13-11-00, R. STAHL specifies an intrinsically safe output of 25 V, 99 mA and 613 mW, with a maximum load resistance of 800 Ω. The Series 9167 also supports transmission of superimposed HART communication signals in both directions, making it suitable for HART-compatible process instrumentation.

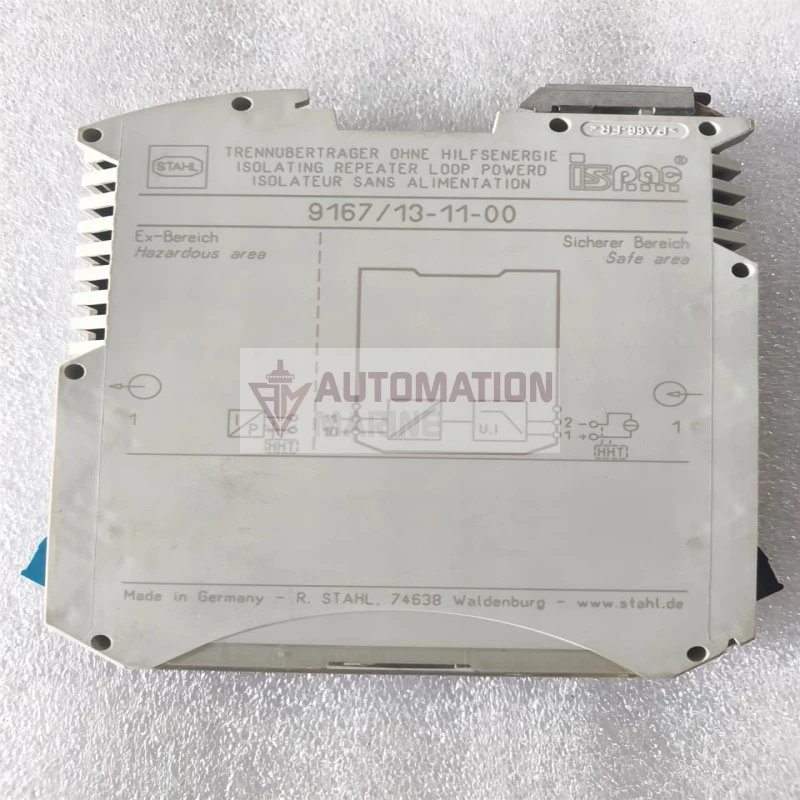

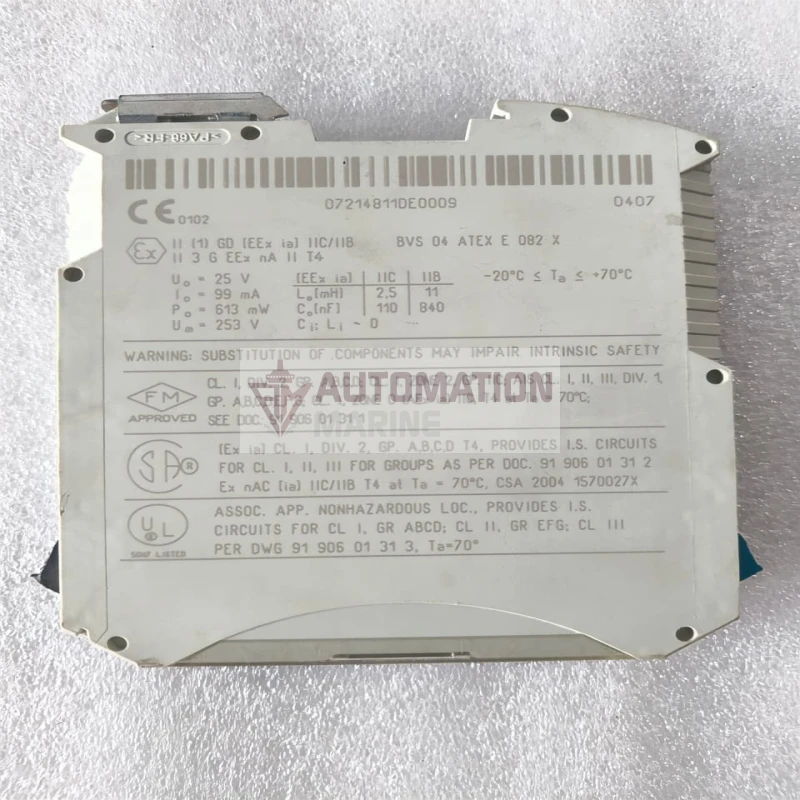

The unit shown is marked R. STAHL, Made in Germany, and is intended for professional industrial automation, process instrumentation and hazardous-area applications.
- Brand: R. STAHL
- Series: ISpac Series 9167
- Model: 9167/13-11-00
- Product Type: Loop-Powered Isolating Repeater
- Channel: 1 Channel
- Auxiliary Power: Not required – loop powered
- Intrinsically Safe Output: Ex i
- Output Voltage (Uo): 25 V
- Output Current (Io): 99 mA
- Output Power (Po): 613 mW
- Maximum Load Resistance: 800 Ω
- HART Communication: Bidirectional HART signal transmission
- Application: Intrinsically safe control valves, I/P transducers, analog indicators, fire & gas detectors
- Hazardous Area: Designed for hazardous-area/intrinsically safe applications
- Operating Temperature: Up to +70°C, depending on installation conditions
- Country of Manufacture: Germany
