R. STAHL ISpac 9170/20-10-11 Ex i Switching Repeater – 2-Channel Galvanic Isolation Switching Amplifier for Hazardous Areas

Name: R. STAHL ISpac 9170/20-10-11 Ex i Switching Repeater – 2-Channel Galvanic Isolation Switching Amplifier for Hazardous Areas
Brand: OTHER BRAND
SKU: 1126
Availability: InStock

Pricing

USED

Specification Details
Brand: R. STAHL
Series: ISpac Series 9170
Part Number: 9170/20-10-11
Number of Channels: 2 Channels
Rated Operating Voltage: 24 V DC (Operating Range: 18 to 31.2 V DC)
Input Compatibility: NAMUR Proximity Sensors (EN 60947-5-6) / Dry Mechanical Contacts
Output Type: Signal Relay Contacts

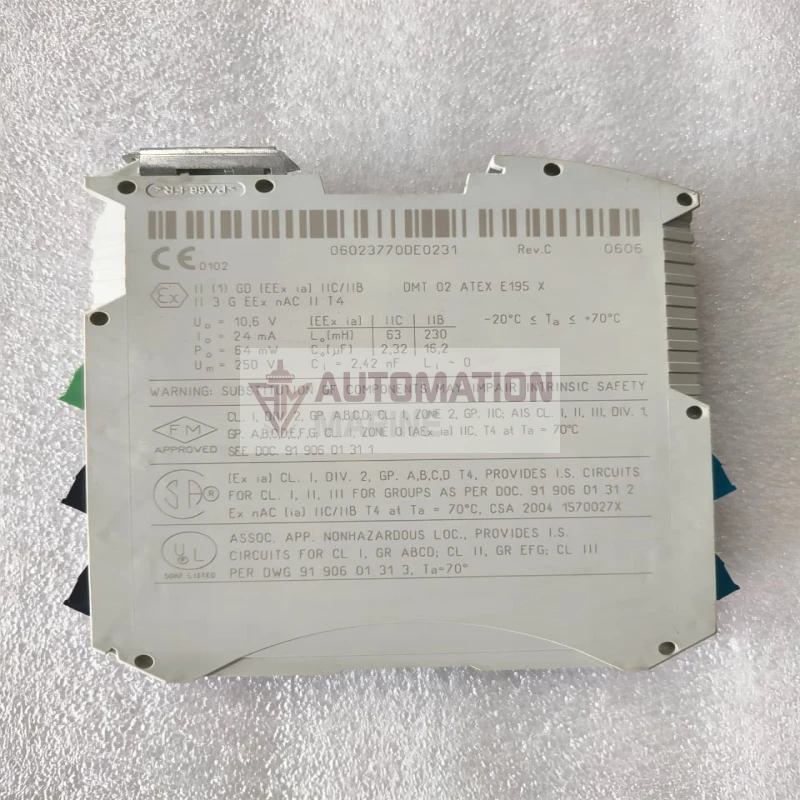

Safety & Ratings: Intrinsically Safe (Ex i) Input field circuits, capable of integration up to SIL 2 (IEC/EN 61508).
Mounting Style: Standard NS 35 DIN Rail
Commodity / HS Code: 85437090
Country of Origin: Made in Germany
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.

Brand	OTHER BRAND
Category	OTHERS

Get Quote Make Offer WhatsApp

Free Shipping

For Indian customers

Secure Payment

100% protected

Export Quality

Authentic & Certified

Fast Delivery

Worldwide shipping

The R. STAHL ISpac 9170/20-10-11 Switching Repeater serves as a vital component for process automation safety. This high-performance, 2-channel switching amplifier converts intrinsically safe discrete signals from hazardous field areas—such as NAMUR proximity sensors, optocouplers, or mechanical contacts—into standard non-intrinsically safe relay signals for safe-area control PLCs.

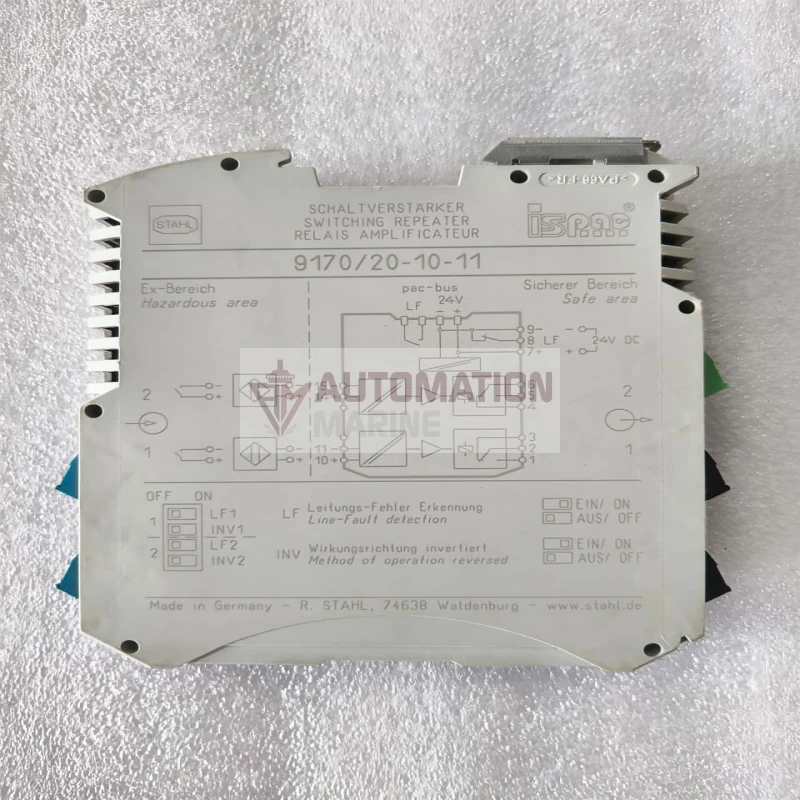

Engineered with three-way galvanic isolation between the inputs, outputs, and the 24V DC auxiliary power supply, it prevents high-voltage spikes from breaching explosive zones. The front control panel features intuitive DIP switches, enabling operators to seamlessly manage Line Fault Detection (LFD) and signal output inversion independently per channel. Its space-saving DIN rail mountable housing makes it ideal for dense control cabinets in oil, gas, chemical, and heavy industrial applications.

Dual-Channel Isolation: Dual-channel intrinsic safety (Ex i) configuration provides complete safety by galvanically separating field devices from the control system and power supply.
Intelligent Line Fault Detection (LFD): Front-facing DIP switches quickly toggle advanced monitoring for field-side wire breakages and short-circuit faults.
Configurable Signal Inversion: Front DIP switches invert the operation method (INV1 / INV2) to match system parameters instantly.

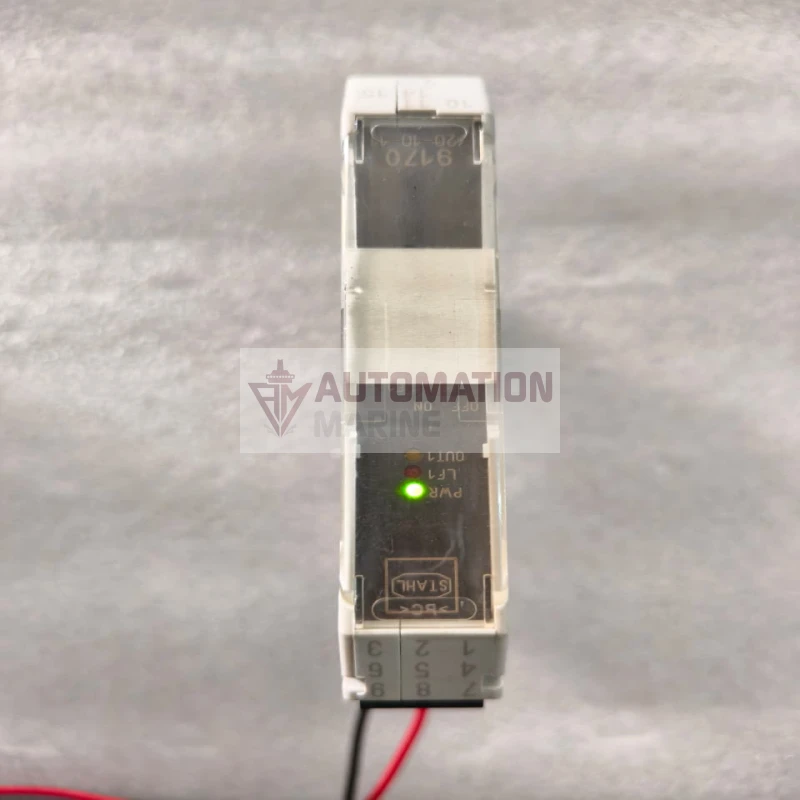

Comprehensive Diagnostic LEDs: Features dedicated LED indicators for power input (PWR), line faults (LF1, LF2), and live output statuses (OUT1, OUT2).
Robust German Engineering: Manufactured in Germany by R. STAHL, engineered to withstand challenging industrial processing environments up to SIL 2 safety levels.
