System Sensor PF24V ExitPoint Directional Sounder with Voice Messaging, 24V DC Fire Alarm Evacuation Sounder
Specification Details
Brand: System Sensor
Product Family: ExitPoint
Model Number: PF24V
Product Type: Directional Sounder with Voice Messaging
Application: Fire Alarm / Emergency Evacuation
Input Voltage: Regulated 24V DC
Operating Voltage: 16–33V DC
Power Setting: Low / Med-Low / Medium / Med-High / High
Sound Speed: Slow / Med-Slow / Med-Fast / Fast
Speaker Size: 4 in (101 mm)
Grille Size: 4-7/8 in (127 mm)
Frequency Range: 707 Hz–11,314 Hz
Input Terminals: 12–24 AWG
Operating Temperature: 0°C–49°C
Operating Humidity: 10%–93% RH, non-condensing
Voice/Language Selection: Multiple selectable configurations
Directional Messages: Exit Here / Upstairs / Downstairs / Area of Refuge
Mounting: Indoor fire alarm notification installation
Listings: UL 464, ULC S524
Approval: FM Approved
Maximum Current: Up to approximately 185 mA RMS depending on configuration

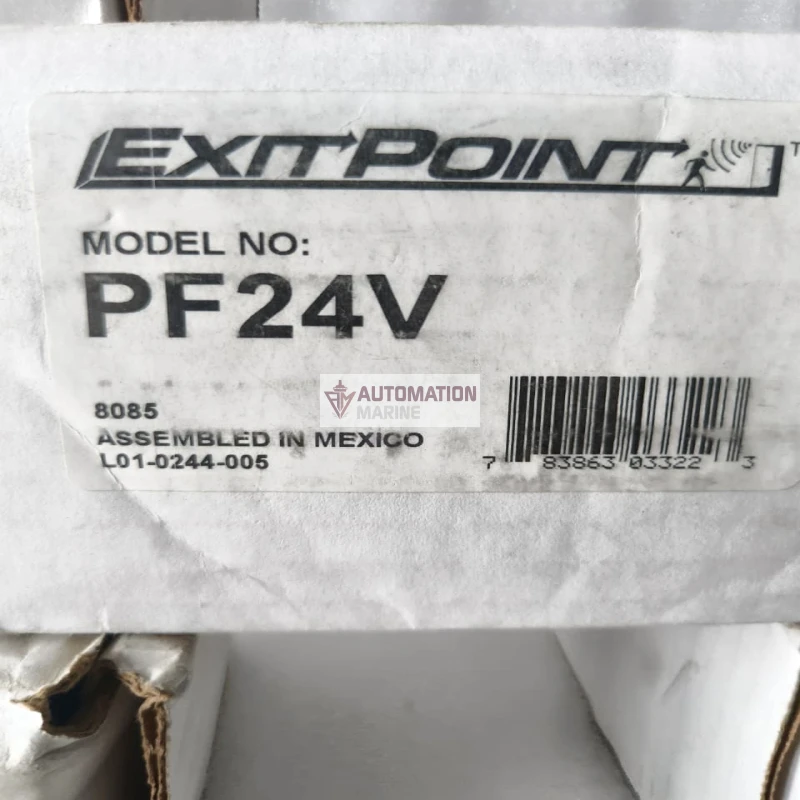

Unit Identification: PF24V
UPC: 783863033223
Country Of Origin: Made In MEXICO
Condition: New Open Box (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | OTHER BRAND |
|---|---|
| Category | OTHERS |
The System Sensor PF24V ExitPoint Directional Sounder with Voice Messaging is a 24V DC fire alarm notification appliance designed to provide audible directional guidance during emergency evacuation. It combines a directional sounder with selectable voice messaging to help occupants identify the appropriate evacuation route in areas such as corridors, stairways, open spaces and other locations where clear directional instructions are required.
The PF24V operates from a regulated 24V DC supply and supports an operating range of 16–33V DC. Its field-selectable power settings allow the sound output to be adjusted for different installation requirements. The unit also provides selectable sound speeds and directional messages, making it suitable for emergency egress and supplemental fire alarm notification applications.

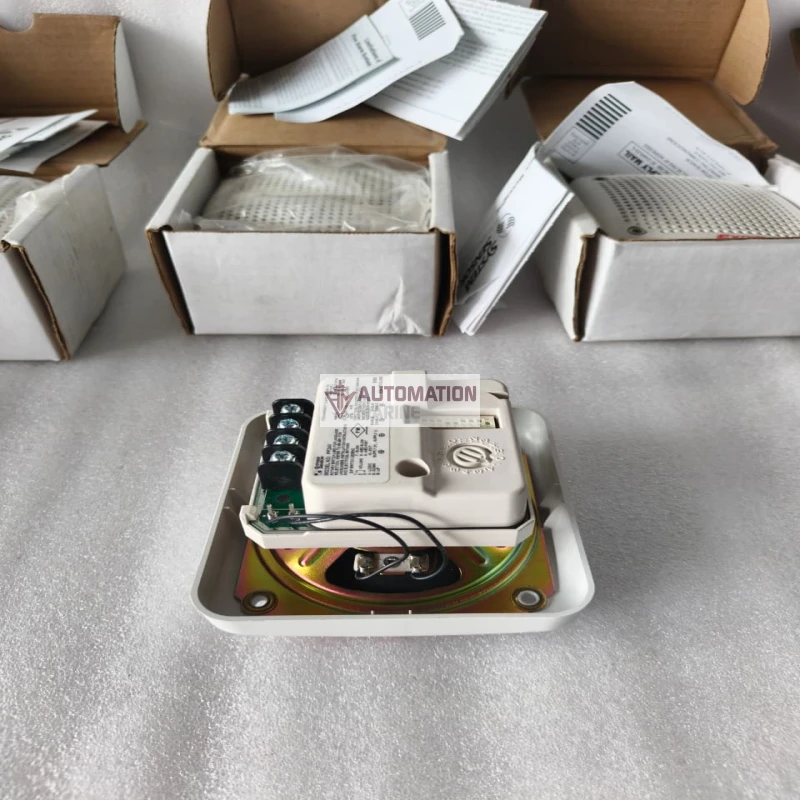

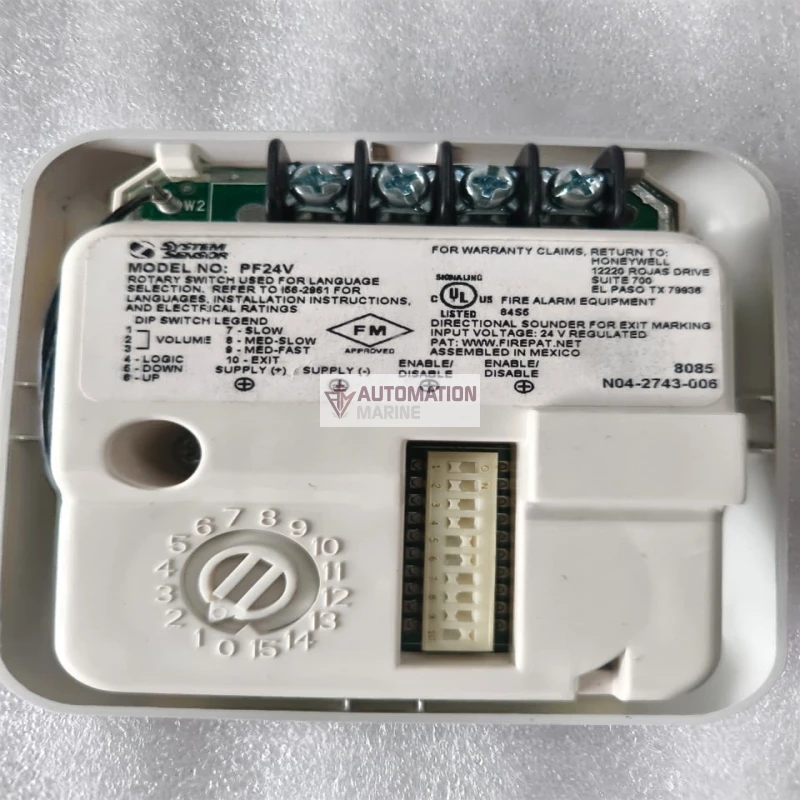

The rotary selector and DIP-switch configuration shown on the product allow selection of language/message and sound characteristics. The available messaging configurations include options such as Exit Here, Upstairs, Downstairs and Area of Refuge, with multiple language selections depending on configuration.
The PF24V is listed as a UL 464 directional sounder and supplemental notification appliance. It is intended to supplement, rather than replace, the audible/visible notification appliances required by the applicable fire alarm system and authority having jurisdiction.
- Brand: System Sensor
- Model: PF24V
- Product Type: ExitPoint Directional Sounder with Voice Messaging
- Application: Fire alarm evacuation and directional emergency notification
- Input Voltage: Regulated 24V DC
- Operating Voltage Range: 16–33V DC
- Power Levels: Selectable Low, Medium-Low, Medium, Medium-High and High
- Voice Messaging: Multiple selectable language/message options
- Directional Guidance: Supports Exit Here, Upstairs, Downstairs and Area of Refuge messaging
- Sound Patterns: Slow, Medium-Slow, Medium-Fast and Fast
- Speaker Size: 4 inches / 101 mm
- Grille Size: 4-7/8 inches / 127 mm
- Input Terminals: 12–24 AWG
- Operating Temperature: 0°C to 49°C (32°F to 120°F)
- Humidity: 10%–93% RH, non-condensing
- Approvals/Listings: UL 464, ULC S524, FM Approved
- Country Marking on Supplied Unit: Assembled in Mexico
