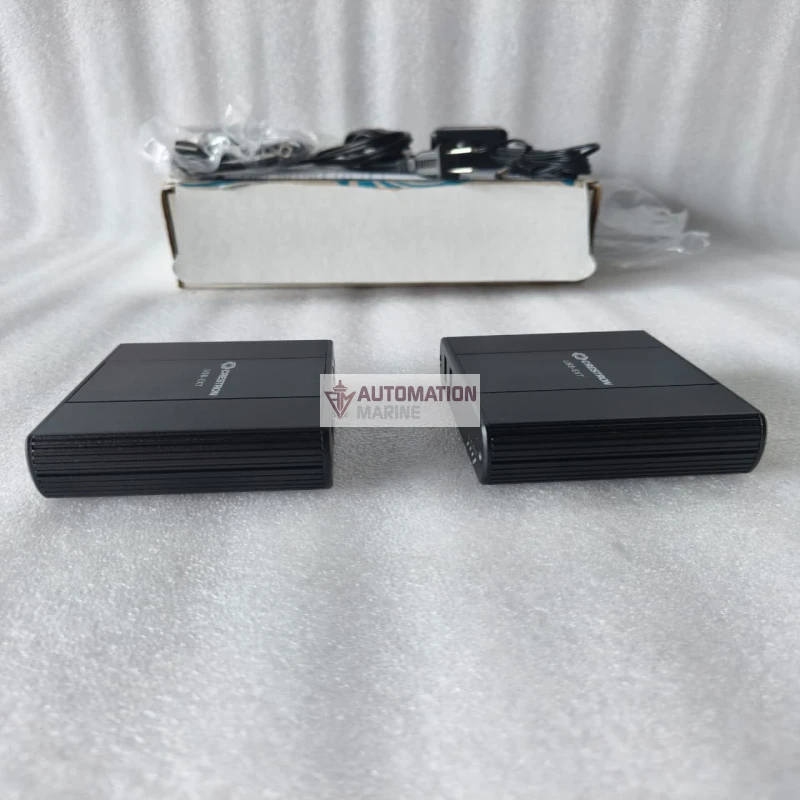

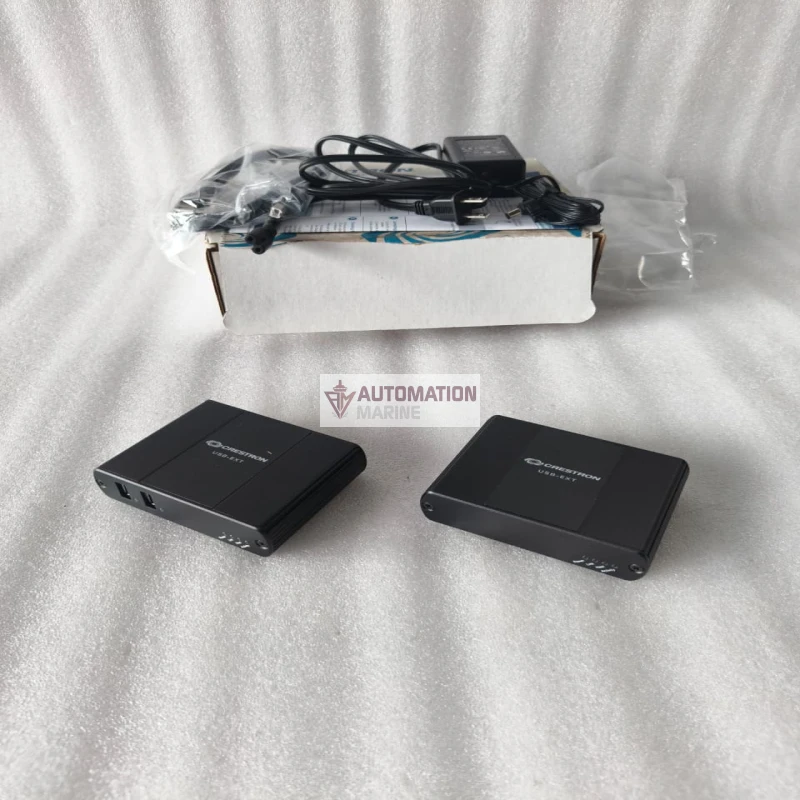

Crestron USB-EXT 6505317 USB Over Twisted Pair Extender – USB 1.1/2.0, 100m CAT5/CAT5e/CAT6 Extension
Specification Details
Brand: Crestron
Model: USB-EXT
Product Type: USB Over Twisted Pair Extender
Model/Part Identification: 6505317
USB Compatibility: USB 1.1 / USB 2.0
Maximum USB Extension: Up to 100 m / 330 ft
Maximum USB Speed: Up to 480 Mbps
Extension Cable: CAT5, CAT5e, CAT6 or better twisted-pair cable
Cable Type: UTP or STP
Local USB Connector: USB Type-B Female
Remote USB Connectors: 2 × USB Type-A Female
Link Connector: 8-pin RJ45 Female
USB Hub Support: Up to 3 USB hubs plus one USB-EXT
Maximum USB Devices: Up to 14 devices, depending on configuration
Host Support: EHCI USB 2.0 and OHCI/UHCI USB 1.1
Remote USB Power: Up to 500 mA @ 5 VDC per port
Power Input: 24 VDC @ 1 A
Operating Temperature: 0°C to 50°C
Operating Humidity: 20% to 80% RH, non-condensing
Enclosure: Metal
Finish: Black
Mounting: Surface/installation mounting provisions
Application: Commercial AV, education, conferencing, control rooms and residential systems
Status Indication: Power, Link, Host and Activity LEDs
Operating System Compatibility: Windows and macOS
Country Of Origin: Made In CANADA
Condition: New Open Box (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | OTHER BRAND |
|---|---|
| Category | OTHERS |
The Crestron USB-EXT 6505317 USB Over Twisted Pair Extender is a professional USB extension solution designed to transmit USB signals over long distances using standard twisted-pair cabling. It enables USB connectivity over distances of up to 100 m (330 ft), making it suitable for commercial AV installations, conference rooms, classrooms, boardrooms, command centers and residential applications.
The USB-EXT supports both USB 1.1 and USB 2.0, including low-speed, full-speed and high-speed USB devices. The system uses a Local Extender connected to the computer or USB host and a Remote Extender positioned where USB peripherals are required. The two units communicate through a single CAT5 or better twisted-pair cable.
The Remote Extender provides two USB Type-A ports for connecting peripherals such as keyboards, mice, cameras, game controllers, printers, memory devices and other compatible USB equipment. The system is designed for straightforward plug-and-play operation without requiring additional drivers or programming for supported operating systems.
The Crestron USB-EXT is an excellent choice for extending USB connectivity where the host computer and USB peripherals need to be physically separated over a substantial cable distance.
- Genuine Crestron USB-EXT USB over Twisted Pair Extender.

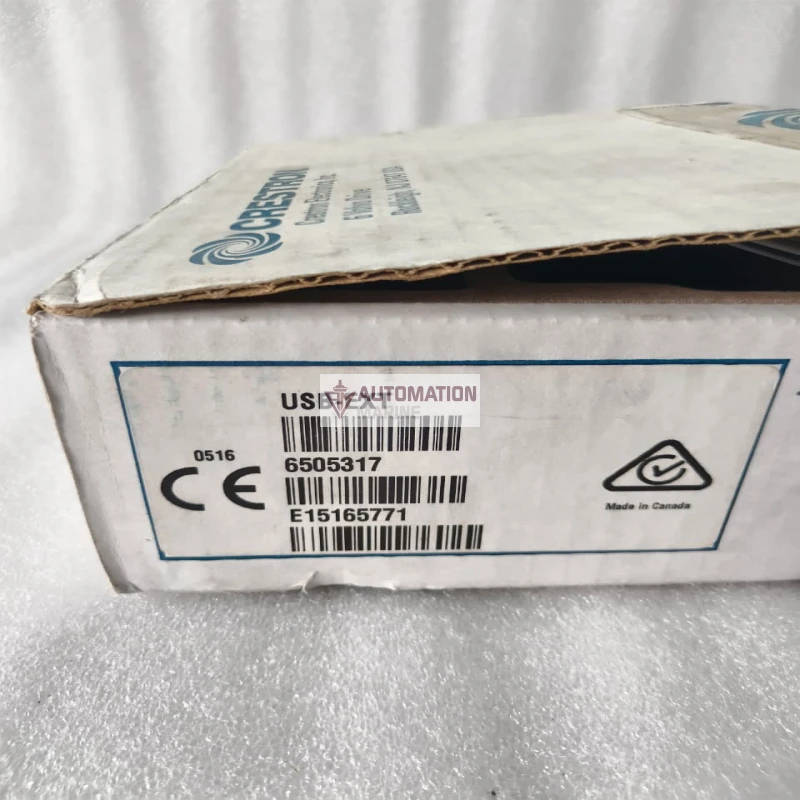

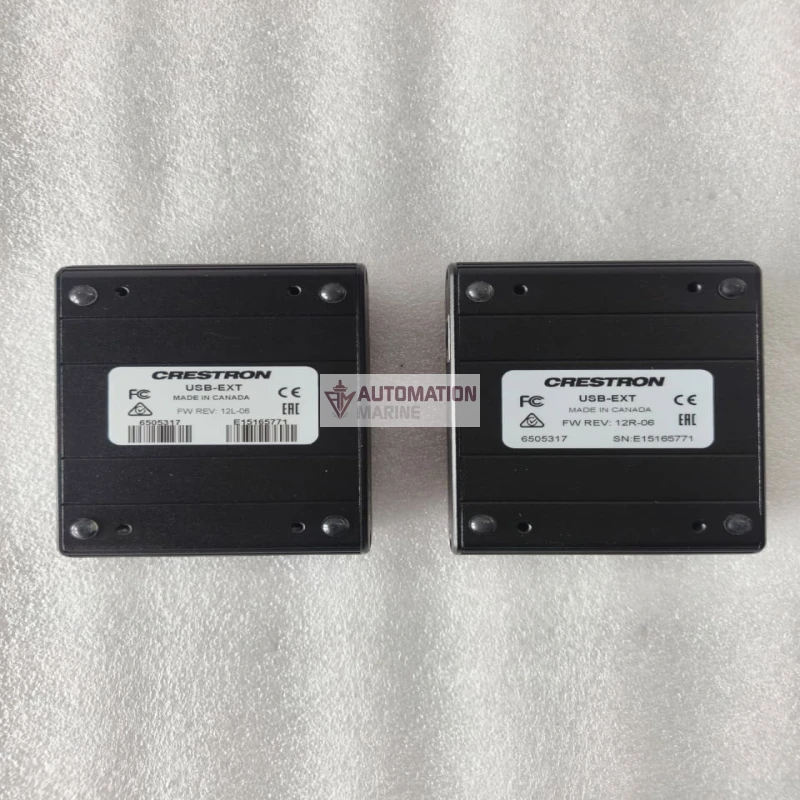

- Crestron model identification visible in the product image: 6505317.
- Extends USB signals up to 100 meters (330 feet) over a single CAT5, CAT5e, CAT6 or better twisted-pair cable.
- Supports USB 1.1 and High-Speed USB 2.0 devices.
- USB data rates supported up to 480 Mbps for USB 2.0 high-speed devices.
- Plug-and-play operation with no special programming or configuration required.
- Compatible with common USB peripherals including keyboards, mice, cameras, game controllers, printers, mobile devices, memory devices and USB hubs.

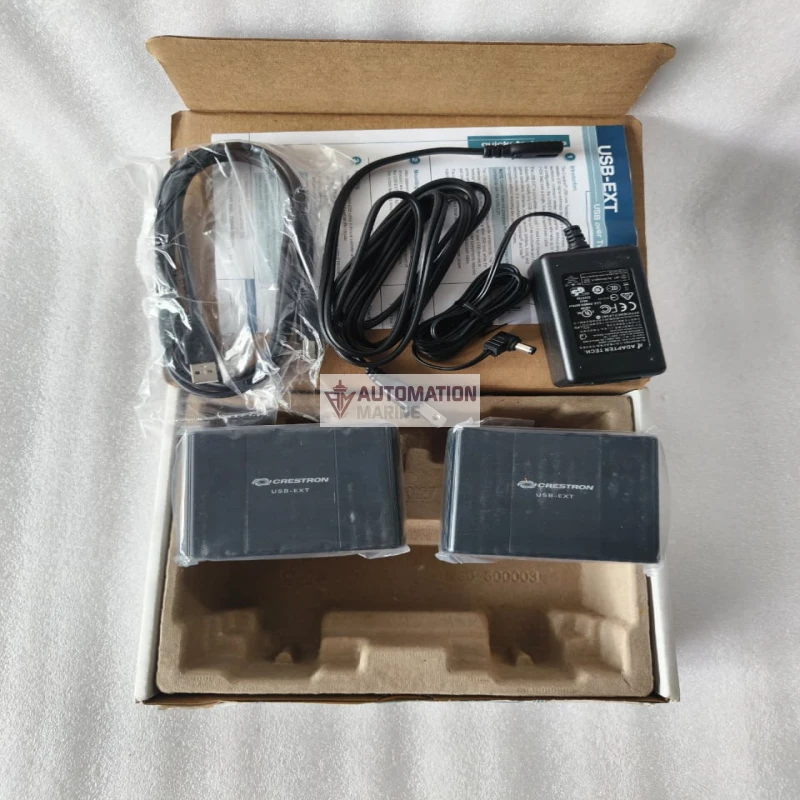

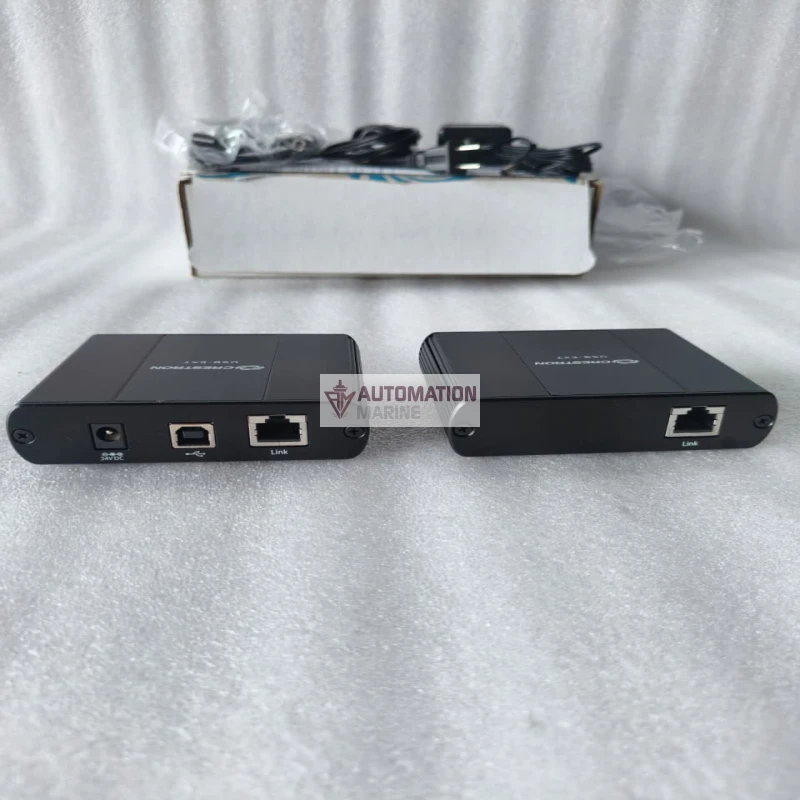

- System consists of a Local Extender and Remote Extender for long-distance USB connectivity.

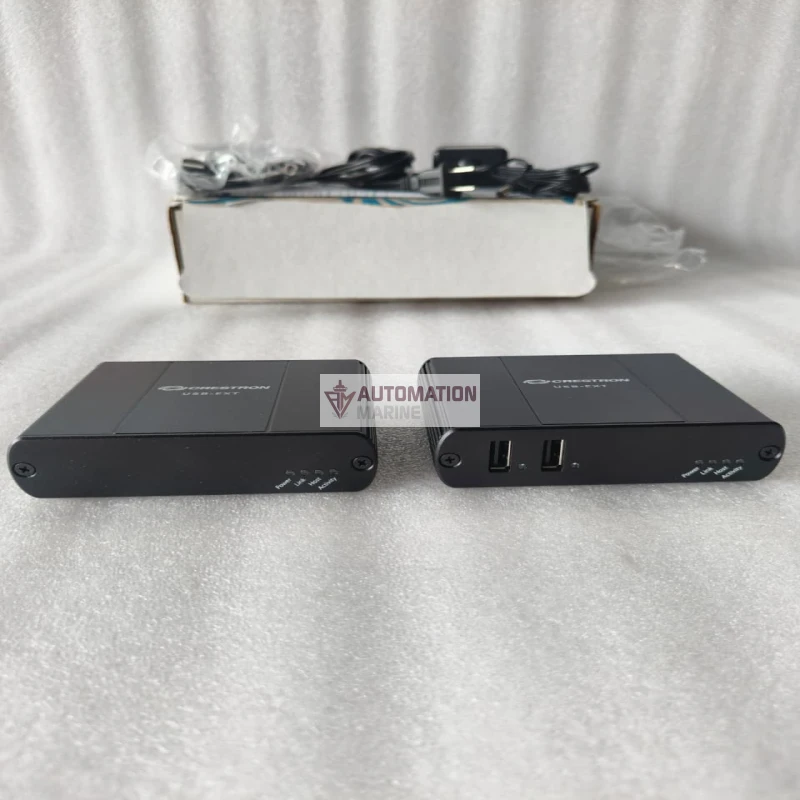

- Remote extender provides 2 USB Type-A ports for USB peripherals.
- Local extender provides a USB Type-B connection to the USB host.
- Supports up to 3 USB hubs plus one USB-EXT in the signal chain.
- Supports up to 14 USB devices, depending on hub configuration.

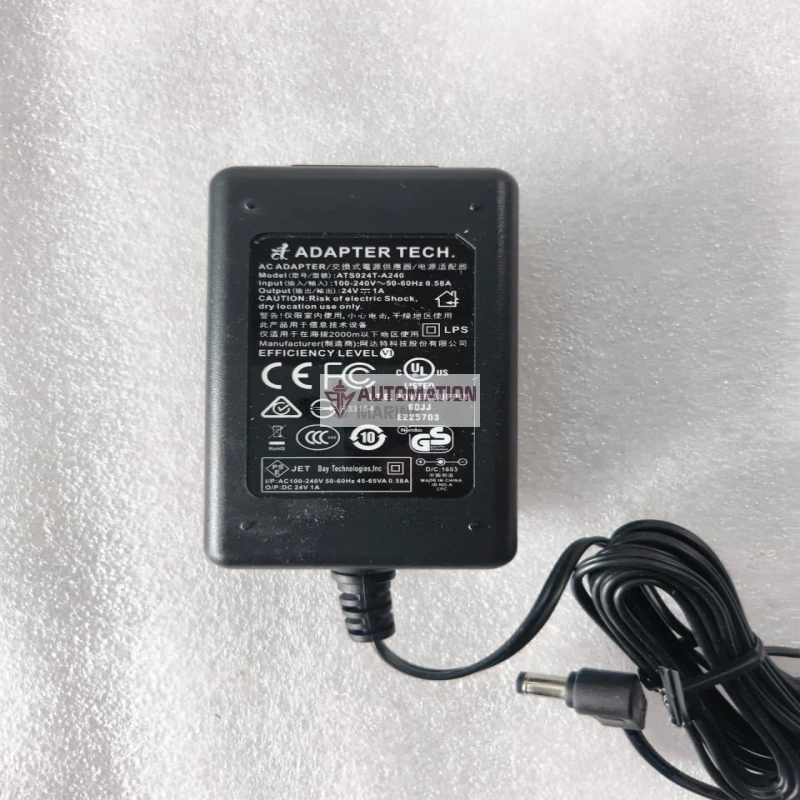

- Includes 24 VDC power requirement/power pack configuration for the extender system.

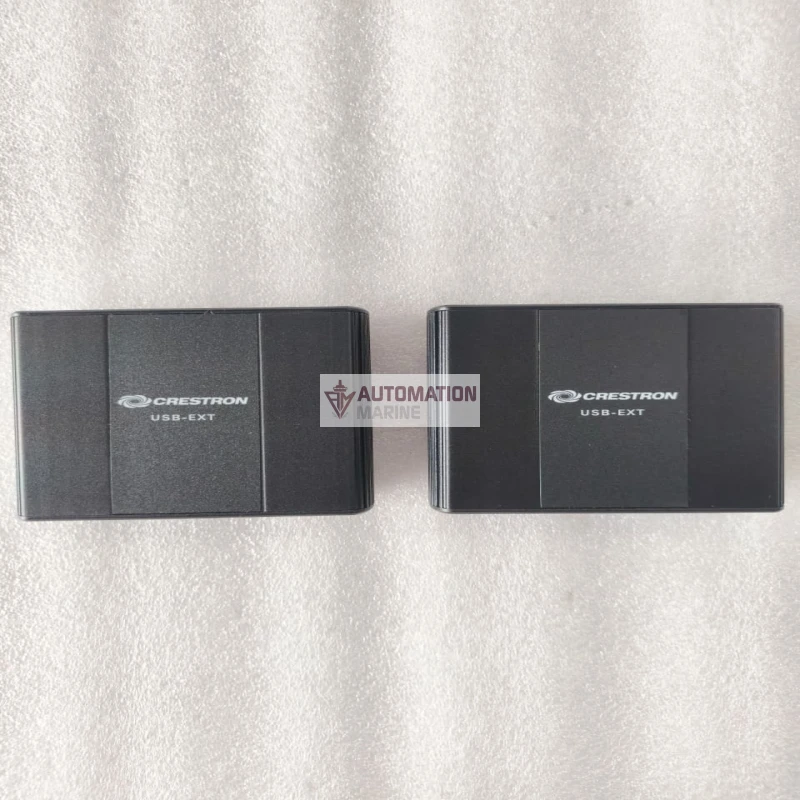

- Metal enclosure with black finish for professional commercial and residential installations.
- Suitable for conference rooms, classrooms, boardrooms, control rooms, command centers and AV integration applications.
