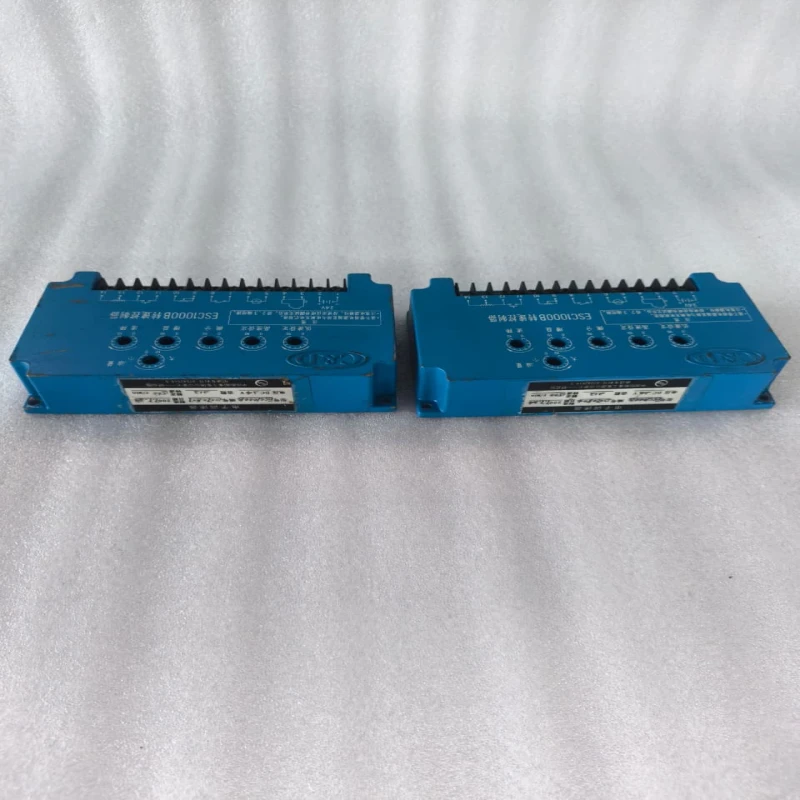

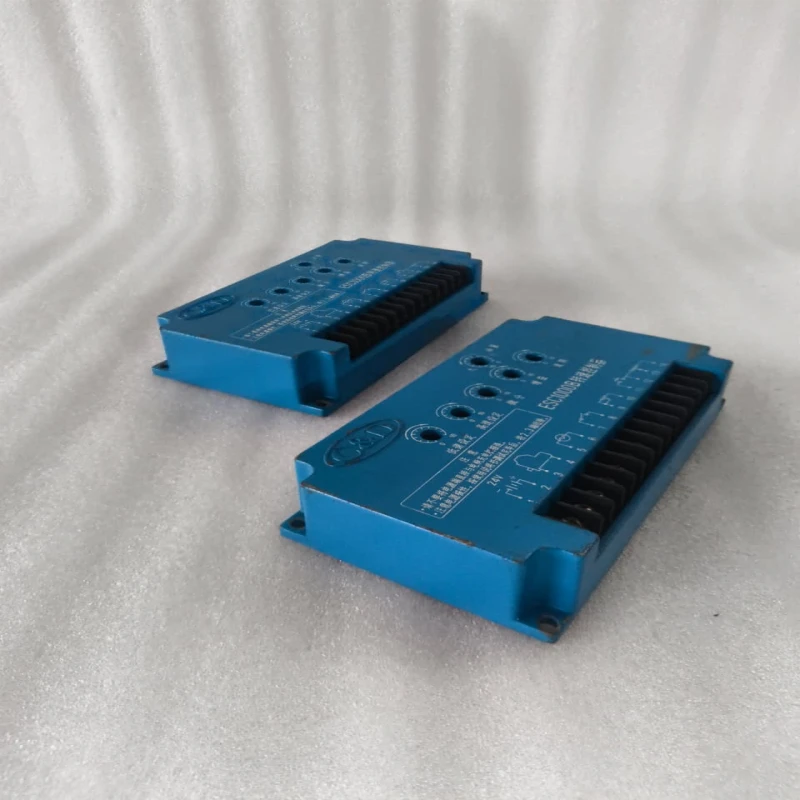

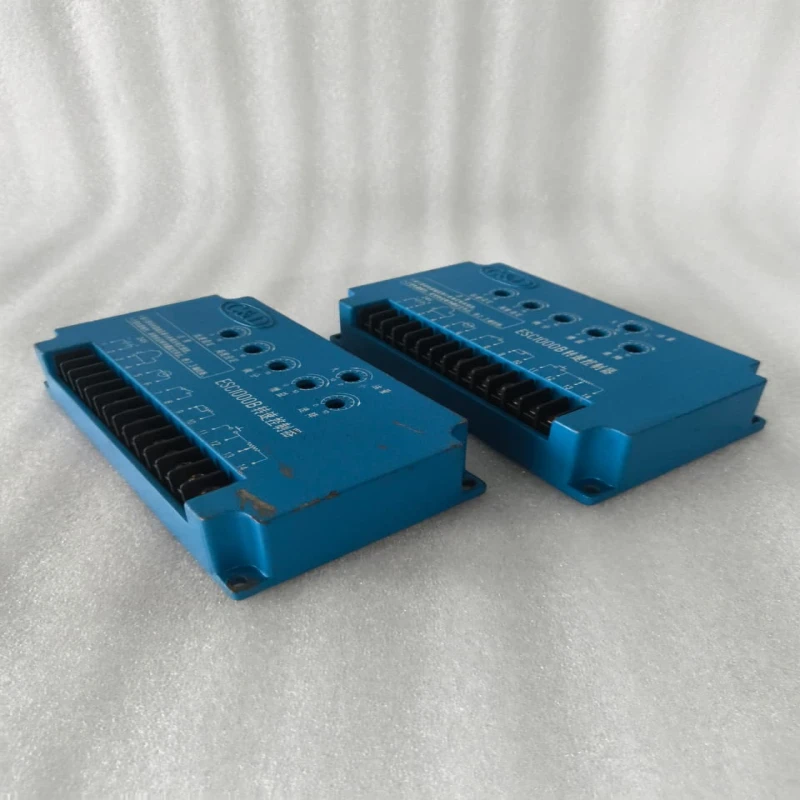

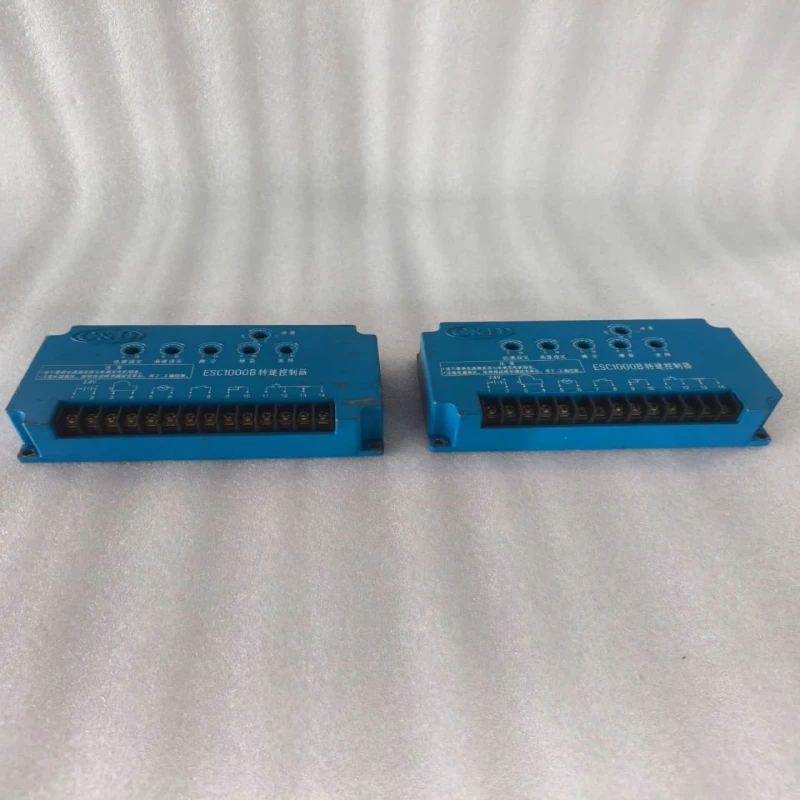

ESC1000B Speed Governor Control Unit 24V Diesel Generator Engine Speed Controller
Specification Details
Brand: ESC
Product Type: Electronic Speed Governor / Speed Control Unit
Model: ESC1000B
Application: Diesel Engine / Generator Set
Supply Voltage: 24V DC
Control Function: Engine Speed Regulation
Governor Type: Electronic Engine Governor
Adjustment Controls: Low Speed, High Speed, Gain, Stability, Fuel Quantity
Terminal Count: 14 Terminals
Terminal Marking: 1–14
Actuator Interface: Provided
Speed Sensing Interface: Provided
External Control Interface: Provided
Mounting: Panel / Control Cabinet Installation
Color: Blue
Suitable For: Diesel Generators, Gensets, Industrial Engines
Country Of Origin: Made In China
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | OTHER BRAND |
|---|---|
| Category | CONTROLLER |
The ESC1000B Speed Governor Control Unit is an electronic engine speed control module designed for use with diesel engines and generator sets. It regulates engine speed by processing the speed-sensing signal and controlling the connected actuator, helping maintain stable engine operation under varying operating conditions.
The unit features a 24V DC supply connection and clearly identified terminals for interfacing with the actuator, speed pickup and external control circuits. Its front panel includes adjustable controls for low-speed setting, high-speed setting, gain, stability and fuel quantity, allowing the governor system to be configured according to the requirements of the connected engine and generator application.
The ESC1000B is particularly suitable for diesel generator speed regulation, genset control panels, engine control systems, industrial generator maintenance and applications. Its compact construction and clearly marked terminal layout make it practical for installation, servicing and system troubleshooting.
The ESC1000B model is commercially listed as an engine/generator speed governor and speed control unit for diesel generator applications.
- Model: ESC1000B
- Product Type: Electronic Speed Governor / Engine Speed Control Unit

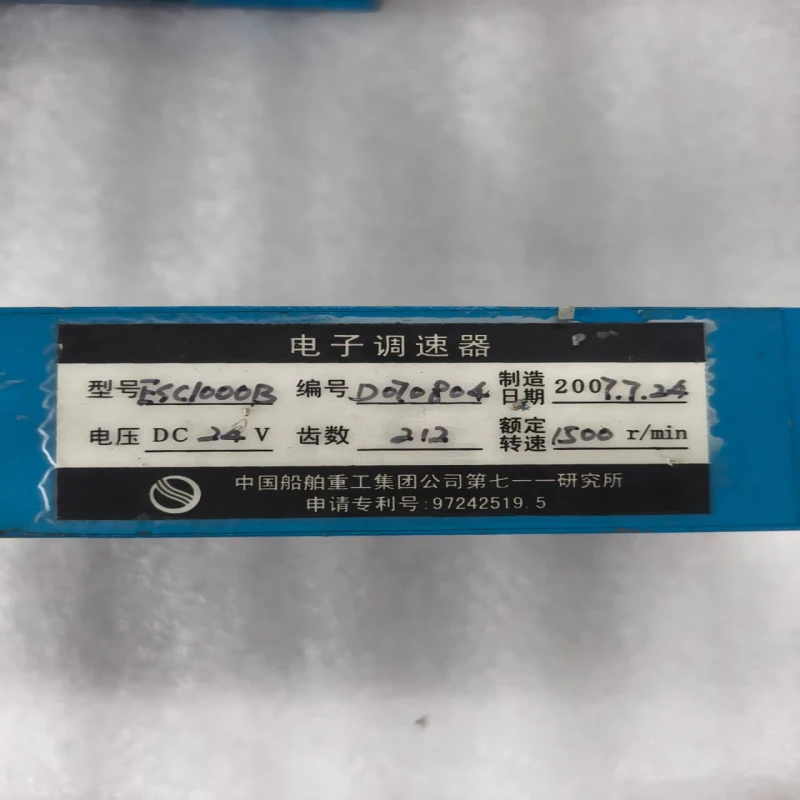

- Input Supply: 24V DC as indicated on the unit
- Designed for diesel engine and generator speed control applications
- Provides adjustable engine-speed control for generator and industrial engine systems

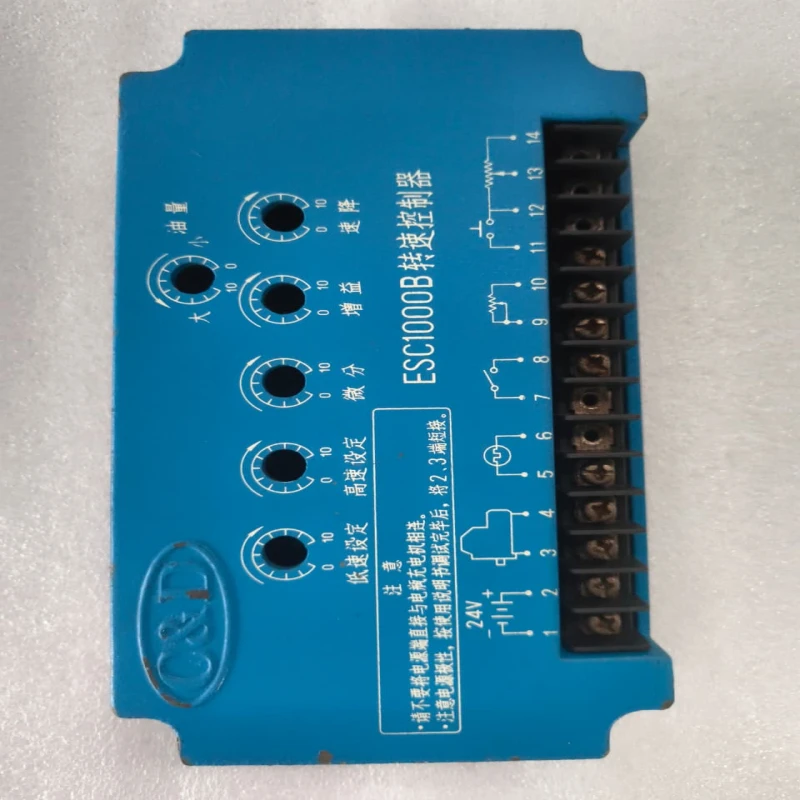

- Front-panel adjustment controls for low-speed setting, high-speed setting, gain, stability and fuel quantity
- Multiple screw-terminal connections for power, actuator, speed sensing and control interfaces
- Suitable for integration with diesel generator sets, engine governors and industrial engine control systems
- Compact panel-mount electronic governor design
- Model-specific option for ESC1000B speed control systems
- Useful for generator maintenance, retrofit and industrial automation applications
- Clearly marked terminal numbering from 1 to 14 for convenient wiring identification
