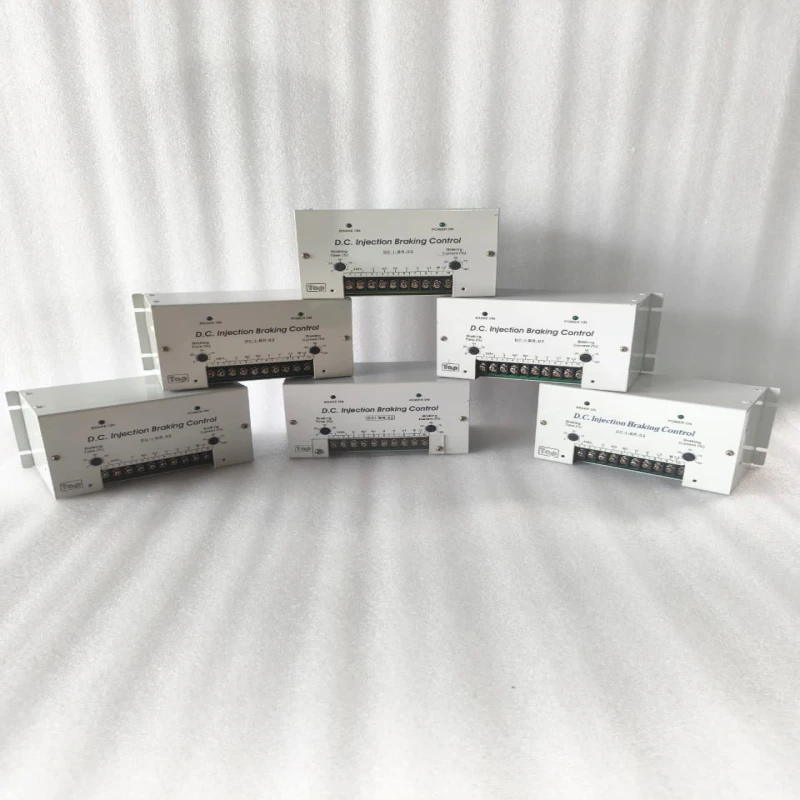

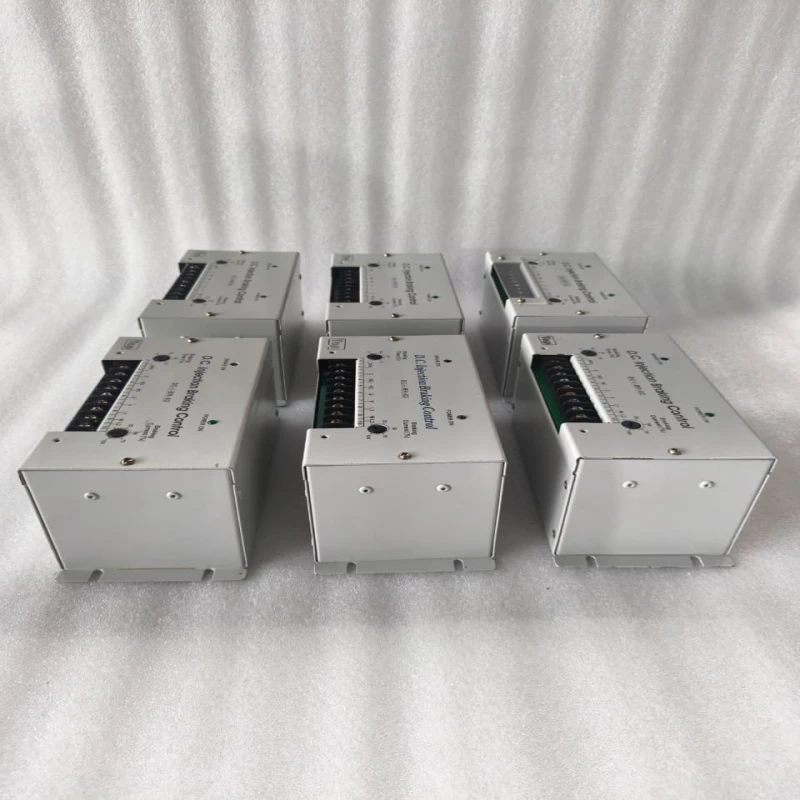

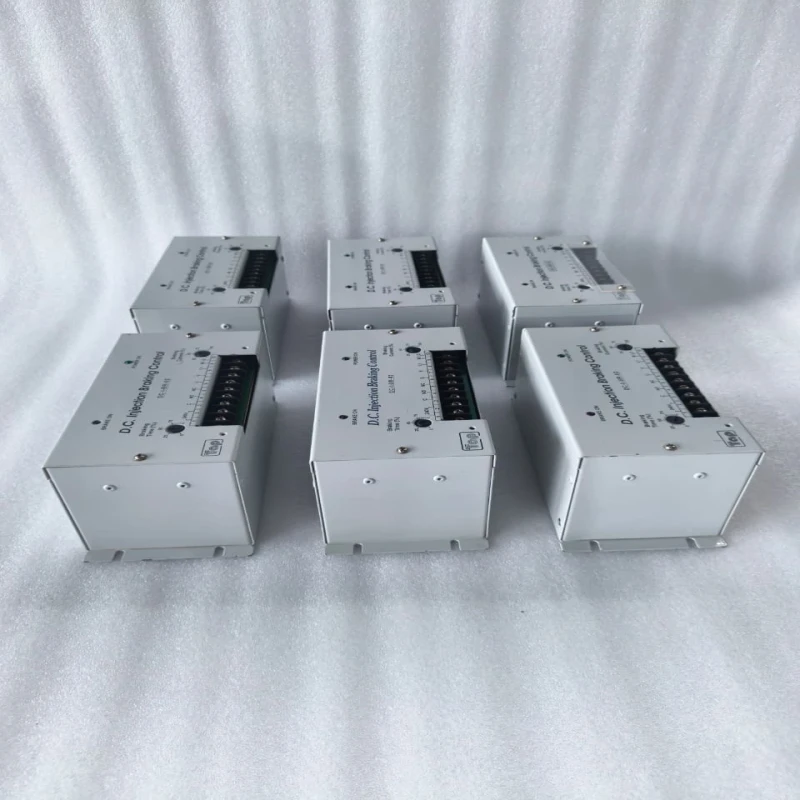

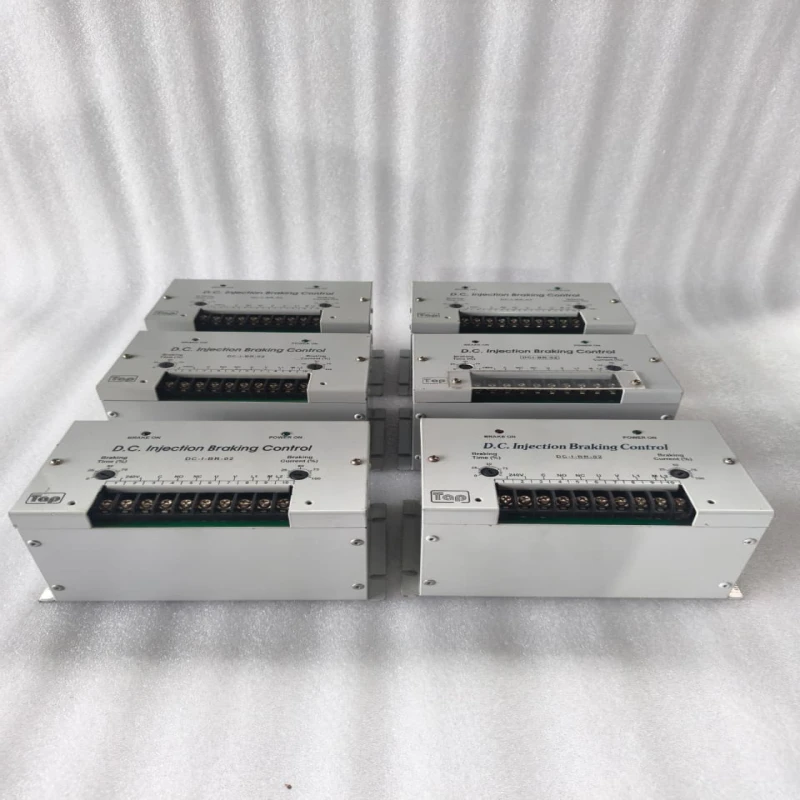

TGP DC Injection Braking Control DC-I-BR-02 | Adjustable Braking Time & Braking Current Controller | 240V AC Input
Specification Details
Brand: TGP
Product Type: DC Injection Braking Control
Part Number: DC-I-BR-02
Braking Method: DC Injection Braking
Input / Supply Marking: 240V AC
Braking Current Adjustment: 25%–100%
Braking Time Adjustment: 0–100%
Indicators: POWER ON, BRAKE ON
Control Adjustment: Front Panel Rotary Controls
Terminal Type: Screw Terminals
Terminals Marked: 1–10
Terminal Markings: 240V, C, NO, NC, U, V, Y, L1, M, L2
Mounting: Industrial Control Panel / Enclosure
Application: AC Motor Braking & Industrial Motor Control
Model Number: DC-I-BR-02
Country Of Origin: Made In INDIA
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | OTHER BRAND |
|---|---|
| Category | CONTROLLER |
The DC-I-BR-02 DC Injection Braking Control is an industrial motor braking controller designed to provide controlled DC injection braking for AC motor applications. By applying controlled DC braking to the motor, the unit helps bring rotating machinery to a controlled stop.
The controller features front-panel adjustment knobs for Braking Current (%) and Braking Time (%), allowing users to configure the braking response according to the application requirements. The unit also incorporates POWER ON and BRAKE ON indication for convenient operating-status monitoring.

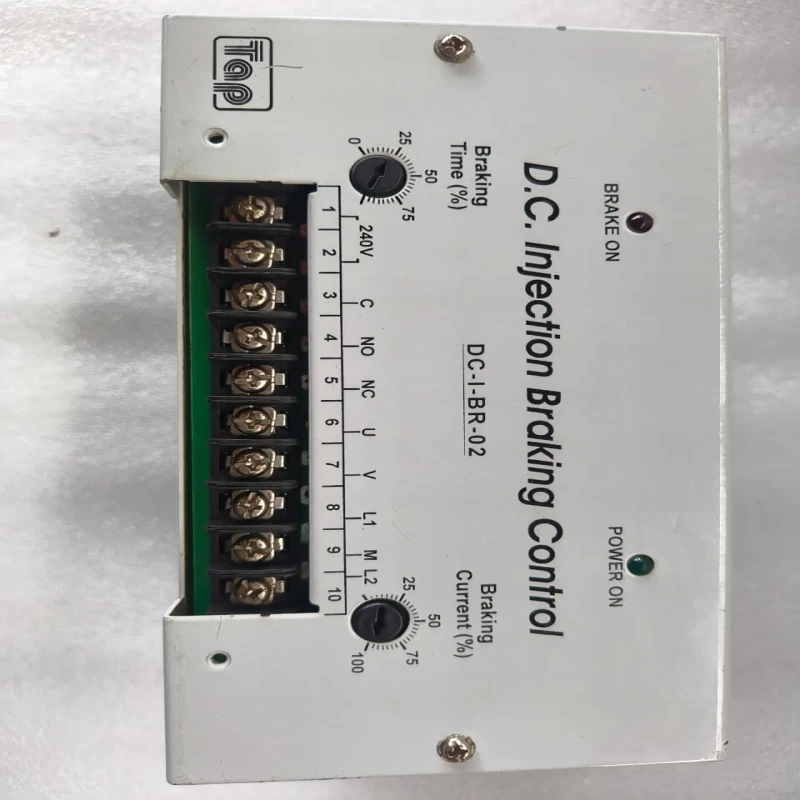

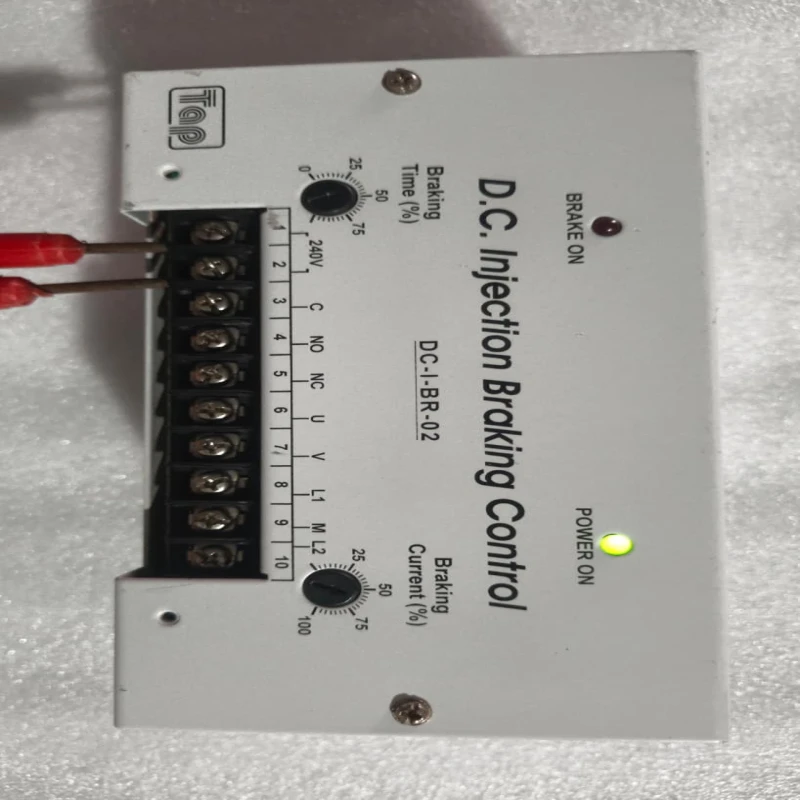

With clearly identified screw terminals, including 240V, C, NO, NC, U, V, Y, L1, M and L2 markings, the DC-I-BR-02 is designed for integration into industrial electrical control panels and motor-control systems.
This DC injection braking controller is suitable for applications involving machine tools, conveyors, fans, pumps, industrial machinery and other motor-driven equipment where controlled motor stopping is required.
- Model: DC-I-BR-02
- Product Type: DC Injection Braking Control
- Designed for DC injection braking of AC motors
- Adjustable Braking Current: 25%–100%
- Adjustable Braking Time: 0–100%
- 240V AC input indication shown on the unit
- Front-panel Power ON and Brake ON indicators
- Screw-terminal construction for industrial wiring
- Clearly marked terminals for motor/braking-control connections
- Compact industrial enclosure suitable for control-panel installation
- Suitable for industrial motor braking and automation applications
- Rugged control design for industrial environments
