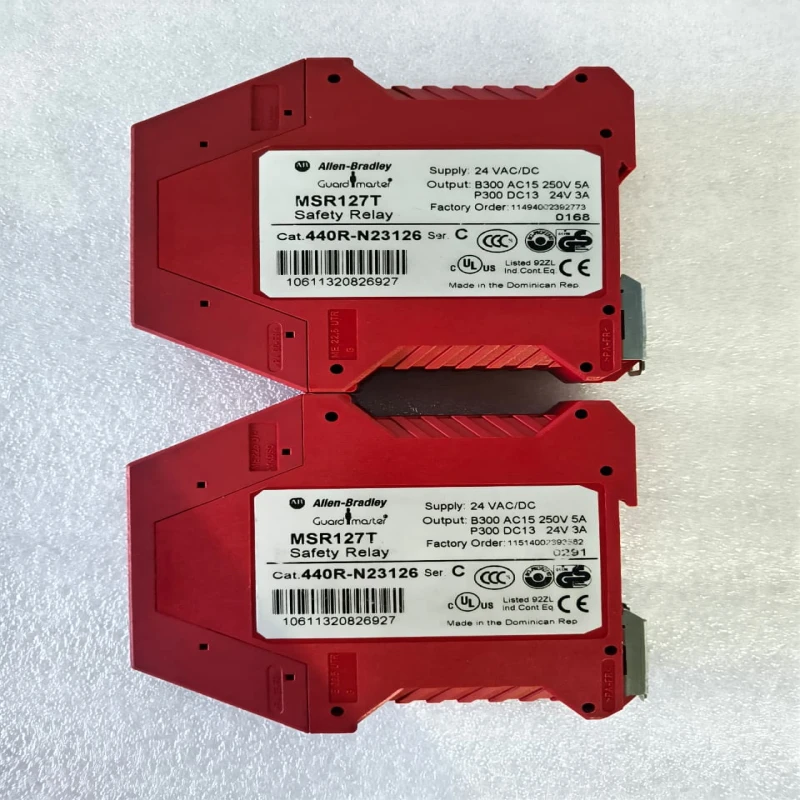

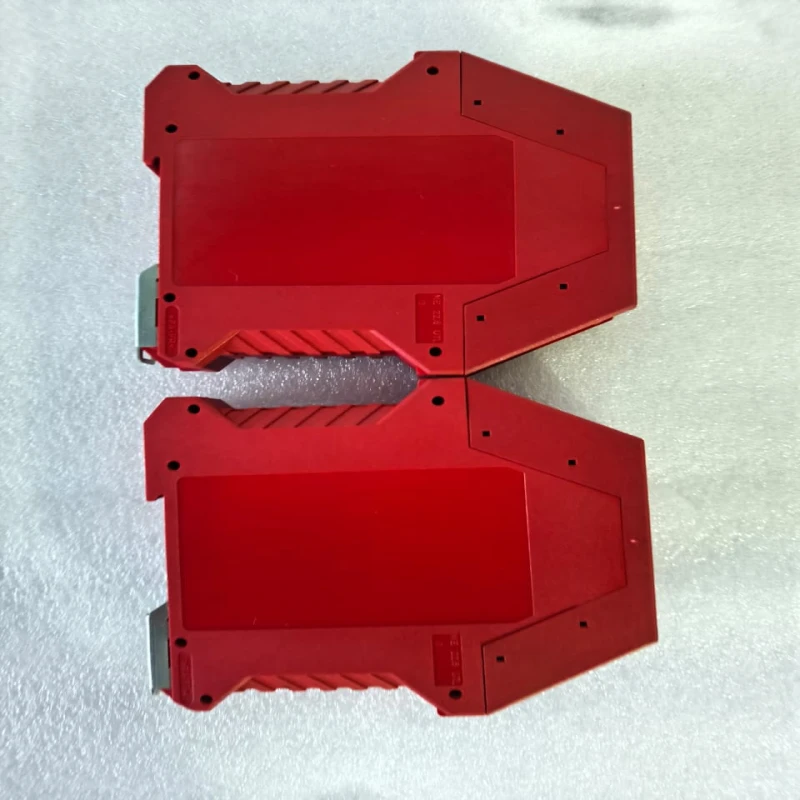

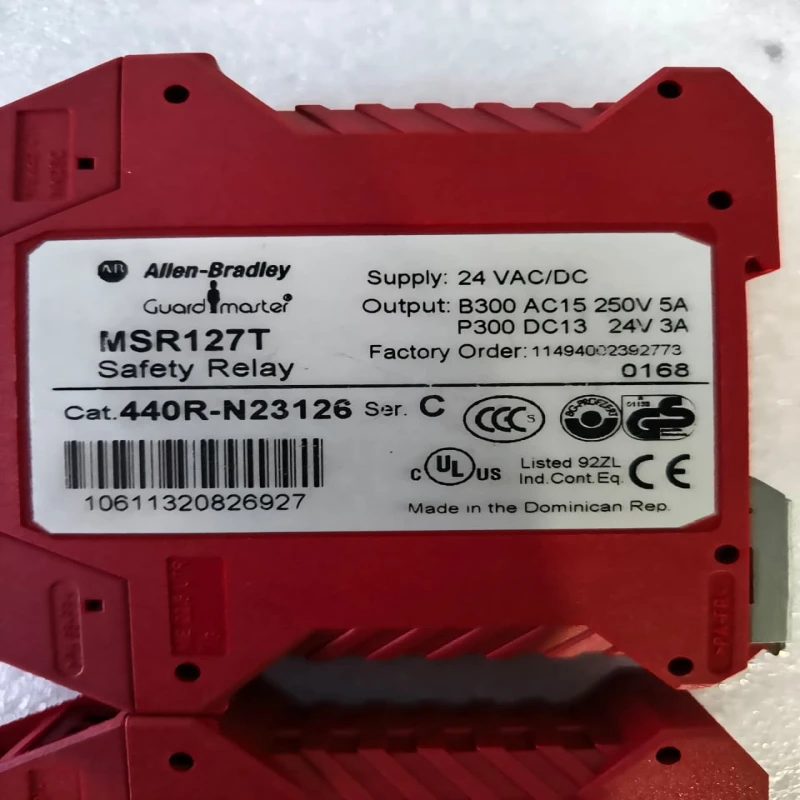

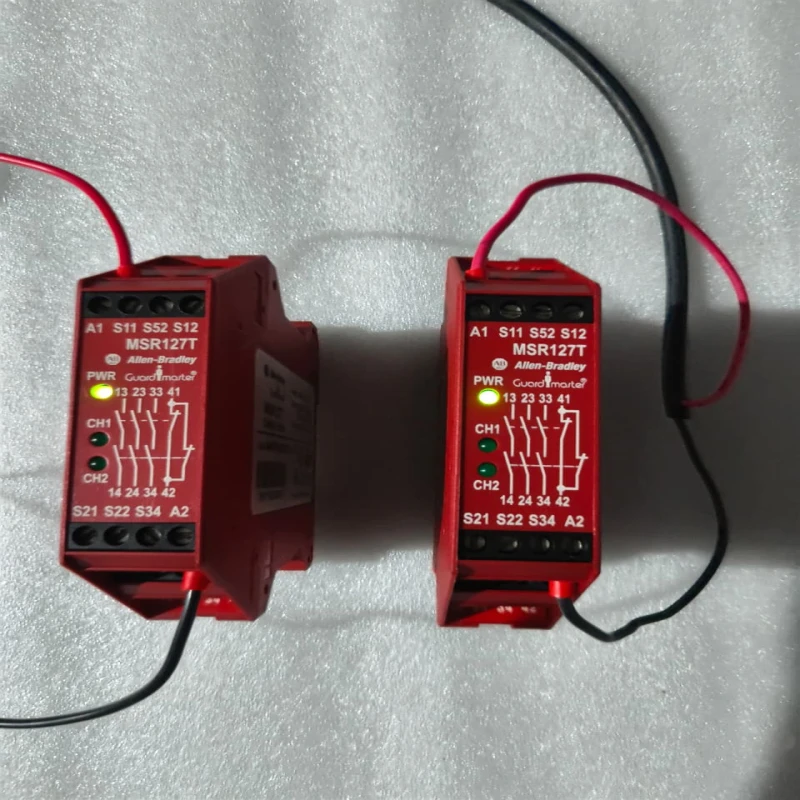

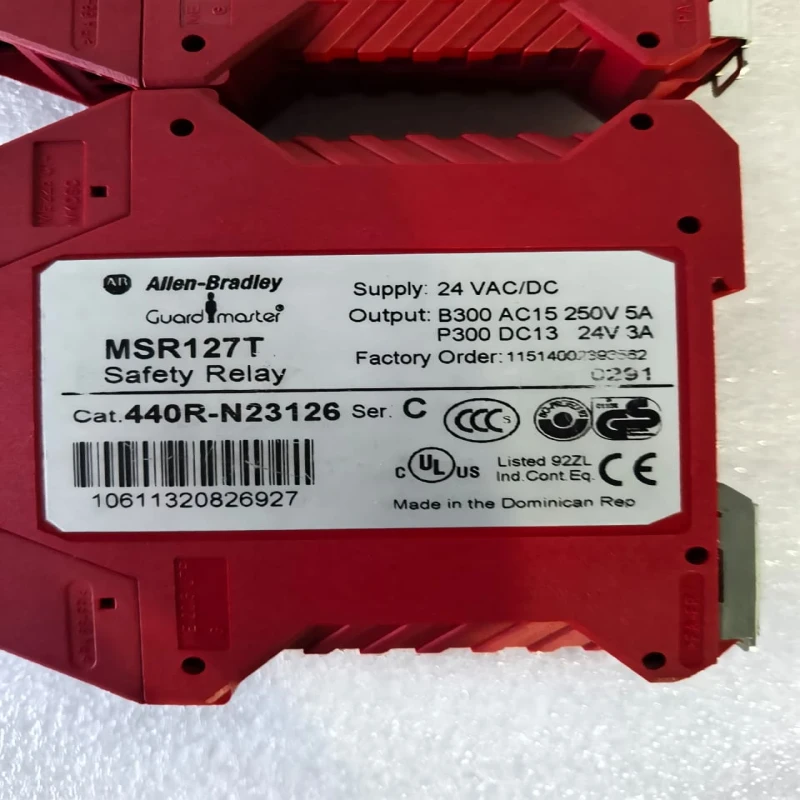

Allen-Bradley Guardmaster MSR127T 440R-N23126 Series C Safety Relay | 24V AC/DC | 3 NO Safety Outputs | Fixed Screw Terminals
Specification Details
Brand: Allen-Bradley
Manufacturer: Rockwell Automation
Product Series: Guardmaster
Model: MSR127T
Catalog No. : 440R-N23126
Series: C
Product Type: Monitoring Safety Relay
Supply Voltage: 24V AC/DC
Safety Outputs: 3 NO
Auxiliary Output: 1 NC
Input Configuration: 1 NC, 2 NC, OSSD
Reset Mode: Automatic / Manual
Terminals: Fixed Screw Terminals
Enclosure Width: 22.5 mm
Contact Rating: B300 AC-15 250V 5A / P300 DC-13 24V 3A
Safety Applications: E-Stop, guards, light curtains
Certifications/Markings: CE, cULus, CCC, BG
Country Of Origin: Made In Dominican Republic
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | ALLEN BRADLEY |
|---|---|
| Category | RELAY |
The Allen-Bradley Guardmaster MSR127T 440R-N23126 Series C Safety Relay is a compact industrial safety monitoring relay designed for machine safeguarding applications. It can be used with emergency-stop devices, safety gates/guards and compatible safety devices to help monitor safety circuits and provide a controlled safety shutdown.
This model operates from a 24V AC/DC power supply and provides three normally-open safety outputs plus one normally-closed auxiliary output. It supports automatic or manual reset and uses fixed screw terminals for industrial control-panel installation.
The MSR127T is housed in a compact approximately 22.5 mm wide enclosure, making it suitable for space-conscious DIN-rail control panels and machine automation systems. Rockwell Automation lists the 440R-N23126 as an active product.
Ideal for: industrial automation, machine safety systems, emergency-stop circuits, safety guard monitoring, light curtain applications, manufacturing machinery and control panels.
- Brand: Allen-Bradley / Rockwell Automation
- Series: Guardmaster MSR127T
- Catalog Number: 440R-N23126
- Series: C
- Relay Type: Monitoring Safety Relay
- Supply Voltage: 24V AC/DC
- Safety Outputs: 3 NO
- Auxiliary Output: 1 NC
- Safety Inputs: 1 NC, 2 NC, OSSD
- Reset: Automatic / Manual Reset
- Terminal Type: Fixed Screw Terminals
- Housing Width: Approx. 22.5 mm
- Applications: Emergency stops, safety guards, light curtains and machine safety circuits
- Contact Rating shown on unit: B300 AC-15, 250V, 5A; P300 DC-13, 24V, 3A
- Certifications/markings visible: CE, cULus, CCC and BG-related marking
- Country marked on product: Made in the Dominican Republic
