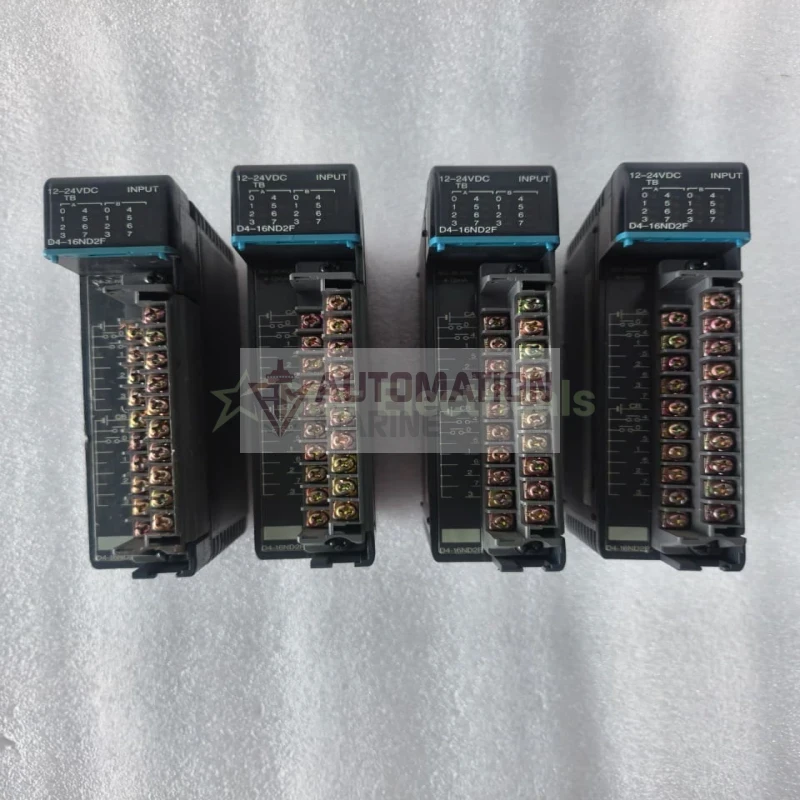

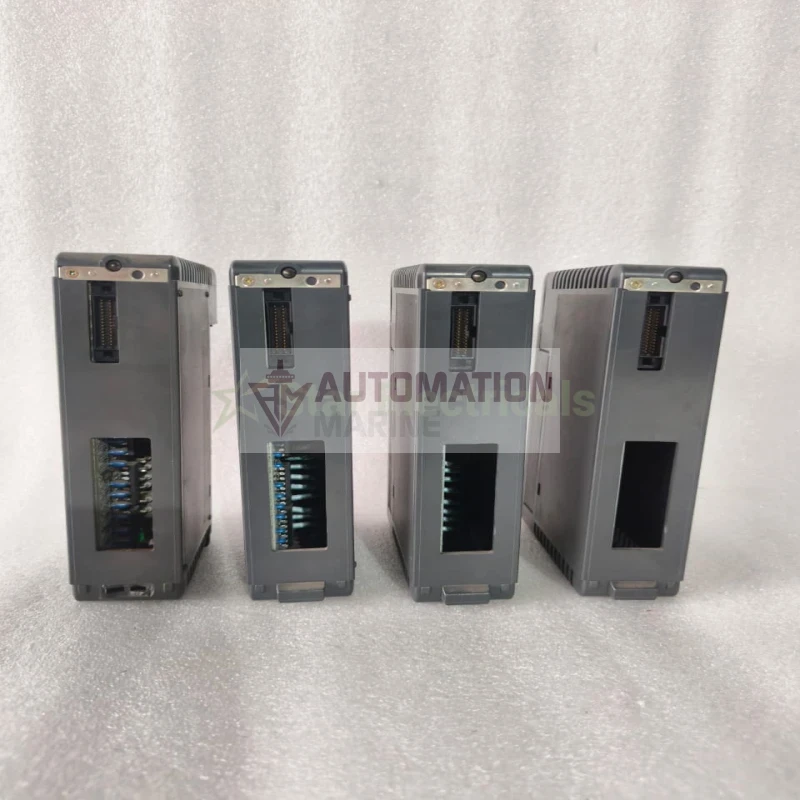

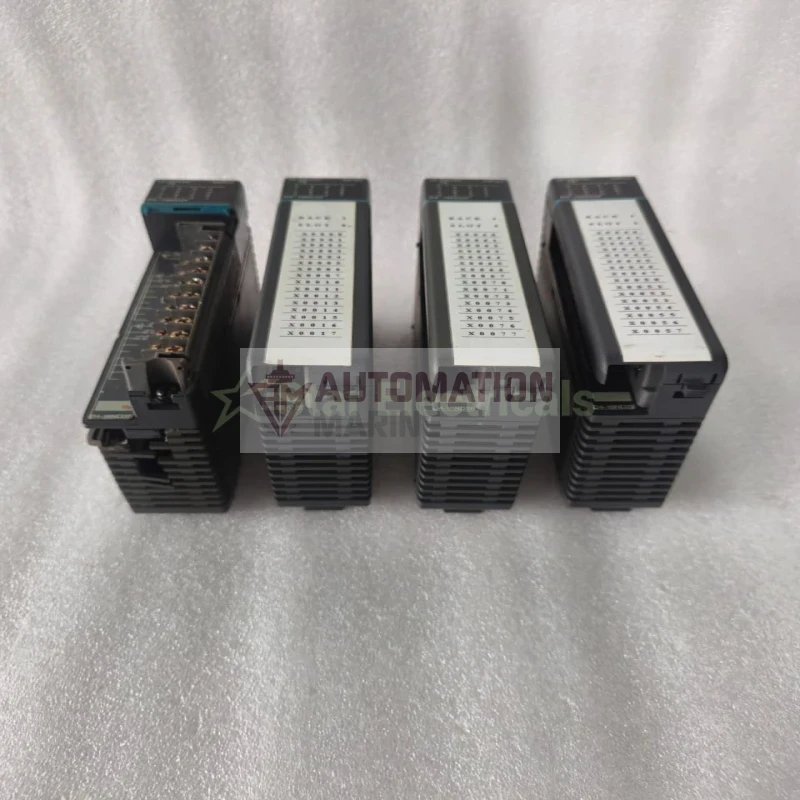

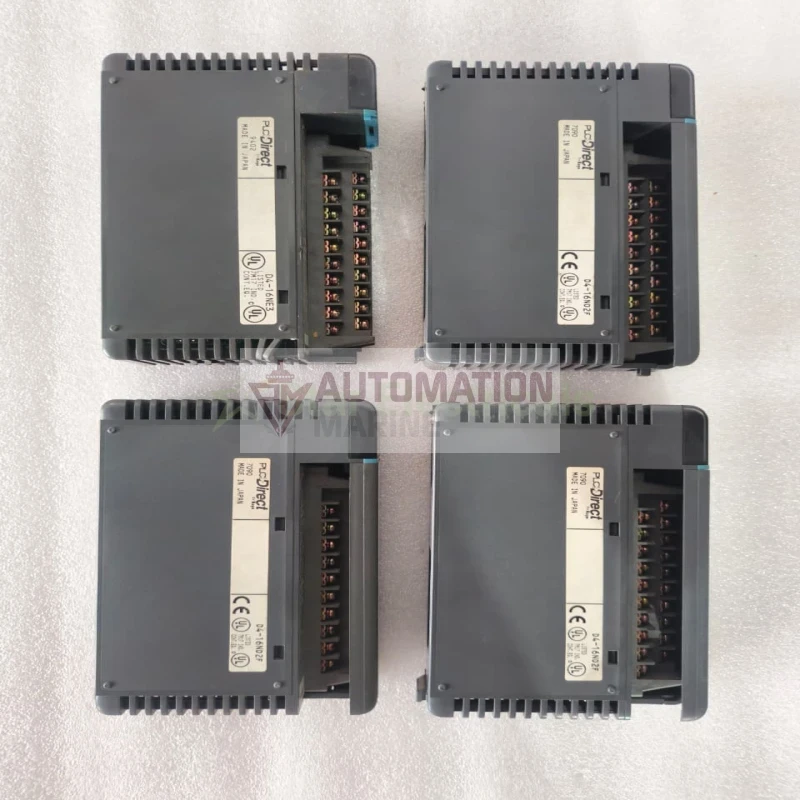

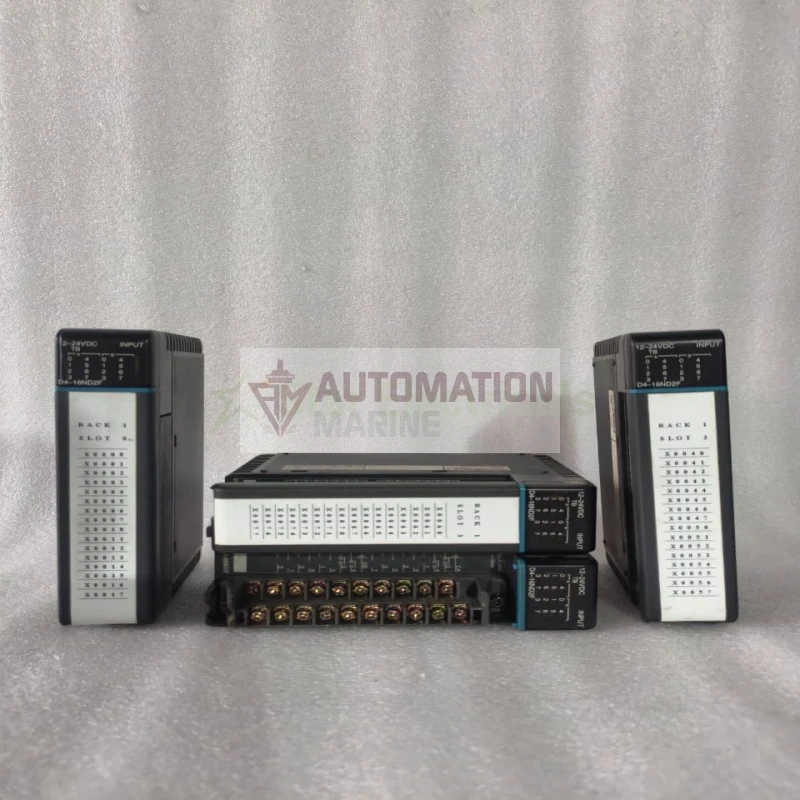

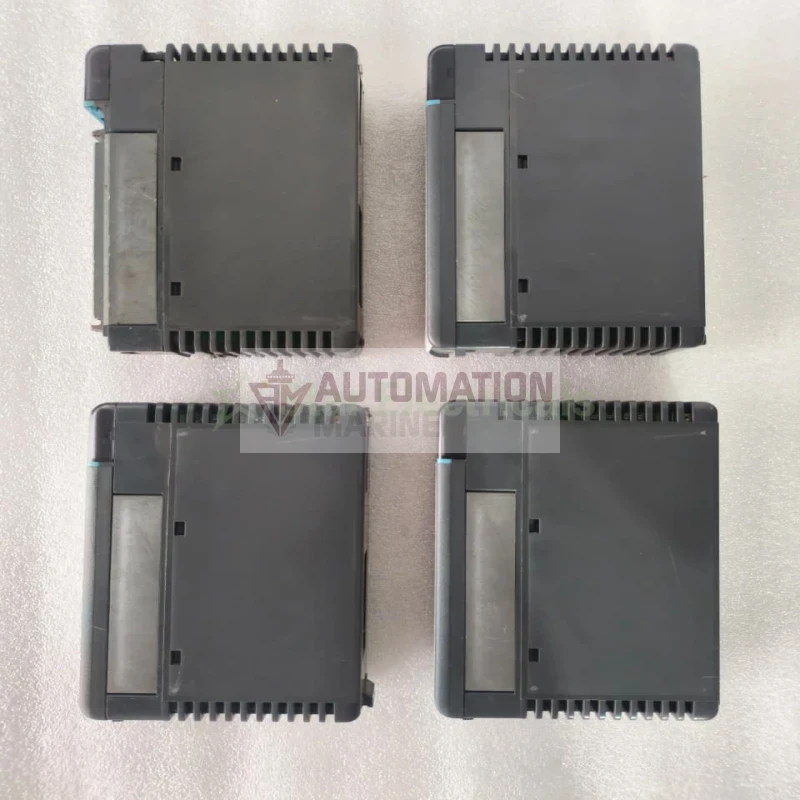

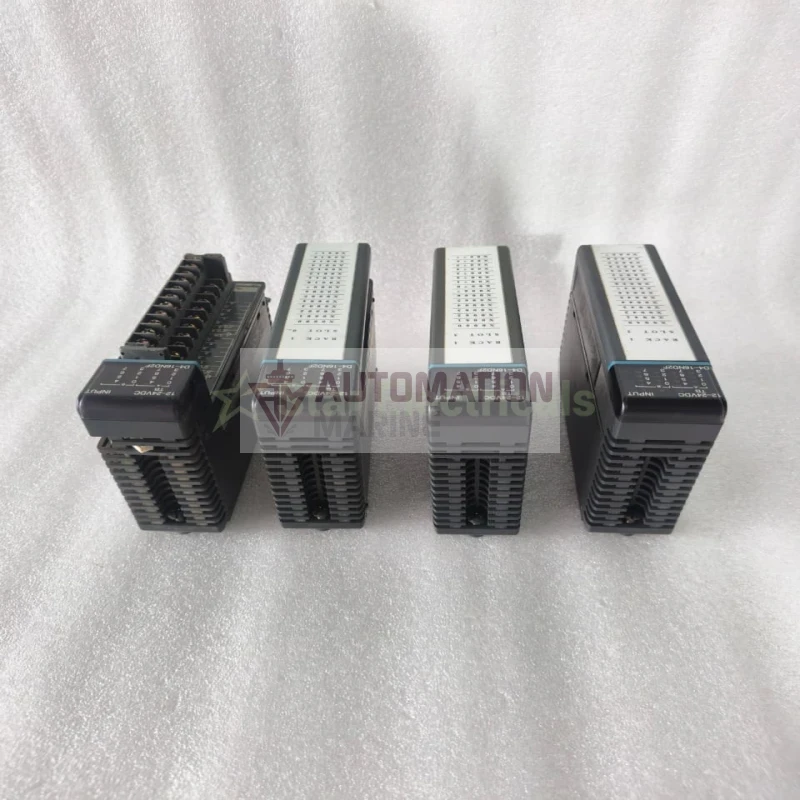

Koyo D4-16ND2F DirectLOGIC DL405 Fast Response DC Input Module
Pricing
Contact us for pricing & availability
USED
Specification Details
Brand: KOYO
Series: DirectLOGIC DL405 Series
Part Number: D4-16ND2F
Discrete Input Type: Sourcing / NPN-Compatible Field Devices
Input Impedance: 3.2 kΩ @ 12VDC / 2.9 kΩ @ 24VDC
Base Power Required: 5VDC, 150 mA Max
Net Weight: 250 grams (8.8 oz)
Agency Approvals: UL Listed
Status:- Used Excellent Working (As Per Photos)
Country of Origin:- Made In Japan
Shipping:- Fast & Safe Worldwide Shipping Available.
| Brand | OTHER |
|---|---|
| Category | MODULE |
Free Shipping
For Indian customers
Secure Payment
100% protected
Export Quality
Authentic & Certified
Fast Delivery
Worldwide shipping
The Koyo DirectLOGIC DL405 D4-16ND2F is a high-density, 16-point discrete input module engineered specifically for the robust DL405 Programmable Logic Controller (PLC) series. Built for heavy-duty industrial automation applications, this premium expansion module handles 12-24 VDC input signals using current-sourcing logic circuitry. [1, 2, 3]
What sets the D4-16ND2F apart from standard modules is its ultra-low 1 ms fast response speed, vital for tracking high-speed sensors, limits, or pulse mechanisms where accuracy is non-negotiable.
Featuring two separate isolated commons (each routing 8 input points), it prevents cross-talk and mitigates ground loops across distinct field devices. The integrated logic-side LED status display panel allows maintenance teams to run instant optical health checks directly on the module. Programmed easily via AutomationDirect DirectSOFT Programming Software, this modular component balances longevity with top-tier performance benchmarks.
- High-Speed Processing: Equipped with a 1 ms fast response time for both OFF-to-ON and ON-to-OFF transitions, minimizing signal delay in time-critical applications. [1]
- 16 Discrete Inputs: Features 16 current-sourcing discrete input points mapped directly into your DL405 PLC chassis. [1, 2]
- Flexible 12-24 VDC Range: Operates safely within an input range of 10.2 to 26.4 VDC, handling fluctuations effortlessly. [1]
- Dual Isolated Commons: Designed with 2 isolated commons (8 points per common) to safeguard your control loop and isolate electrical noise. [1, 2]
- Removable Terminal Block: Includes a 20-pin removable terminal block, allowing for seamless hot-swapping or wiring adjustments without resetting infrastructure.
