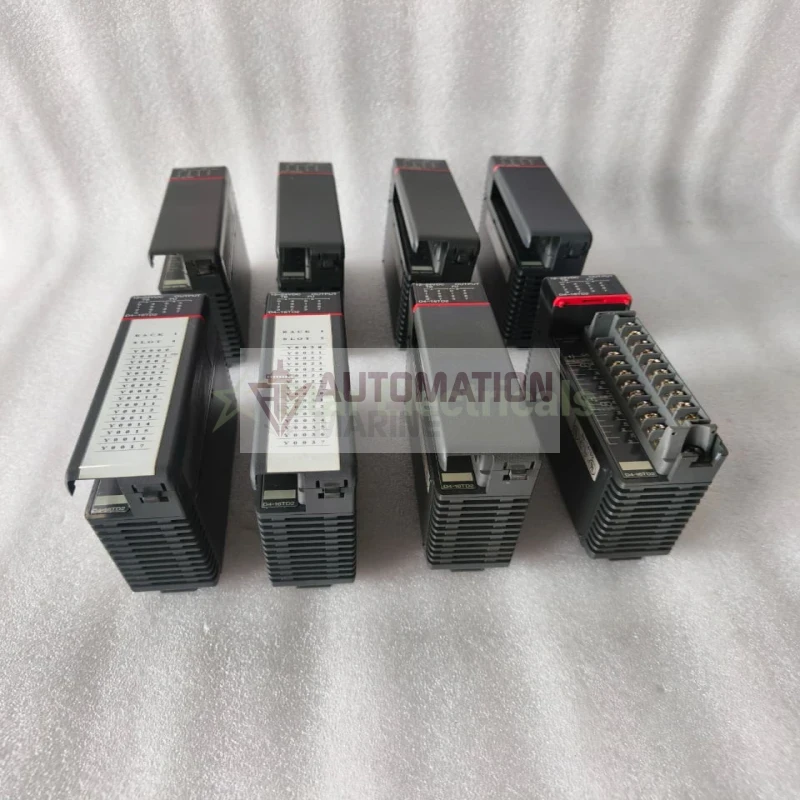

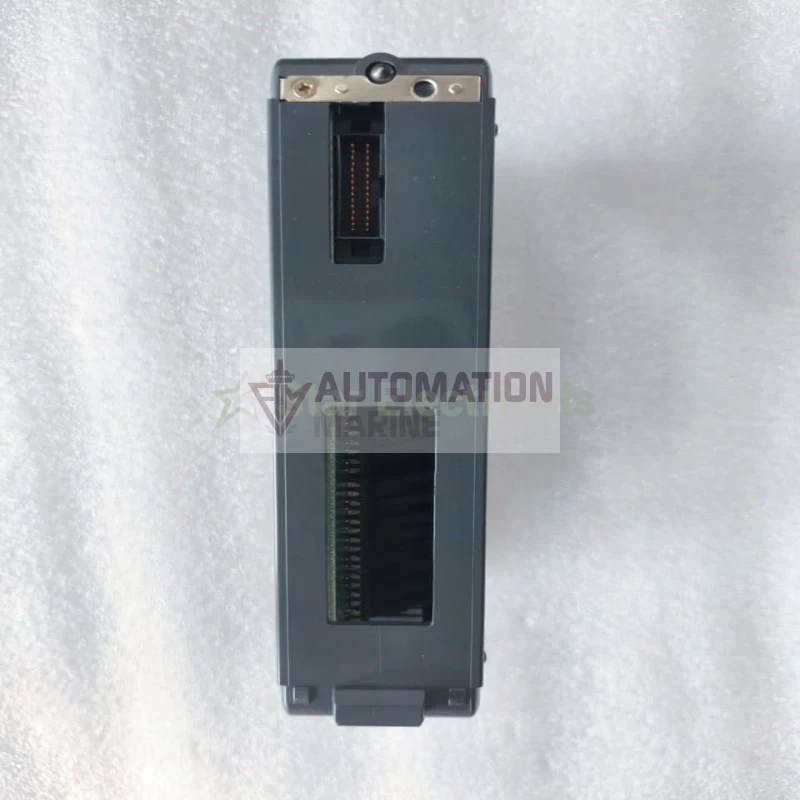

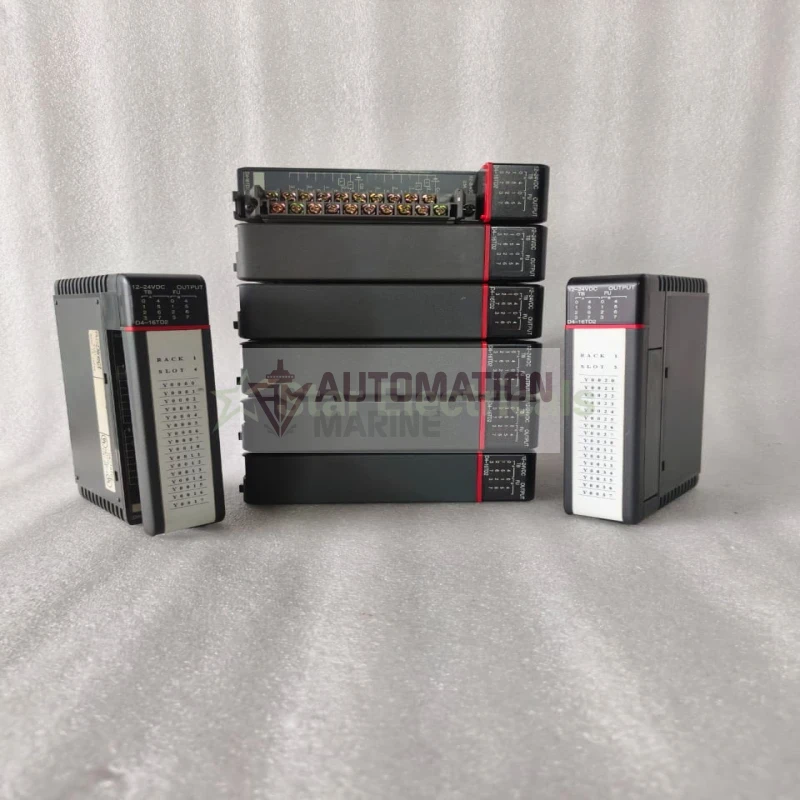

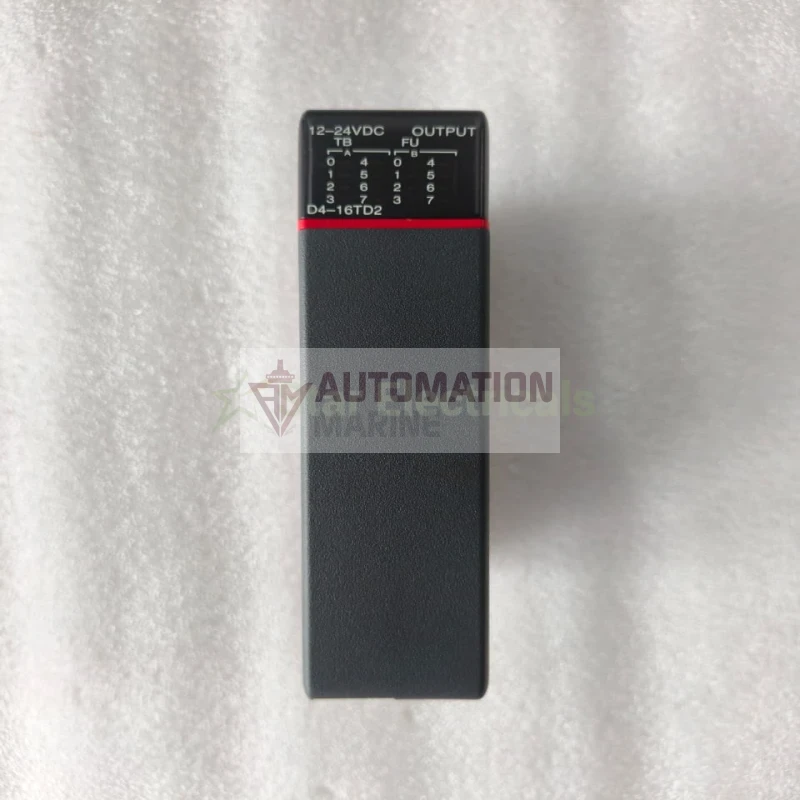

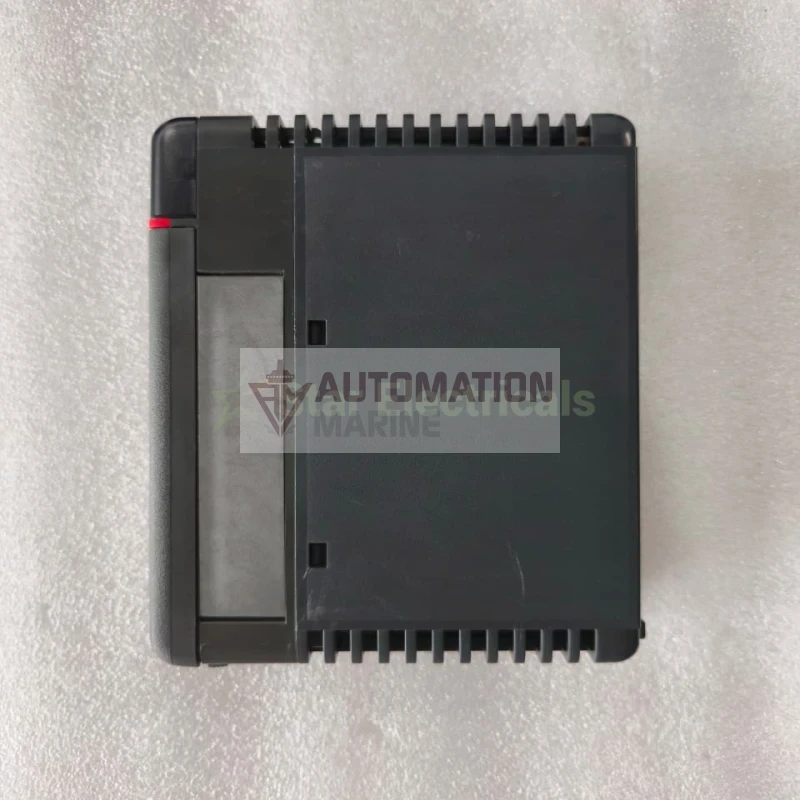

Koyo D4-16TD2 DirectLOGIC DL405 Discrete Output Module
Pricing
Contact us for pricing & availability
USED
Specification Details
Brand: Koyo
Part Number: D4-16TD2 / D416TD2
Output Specification: 16 Sourcing Outputs
Peak Output Voltage: 40 VDC
ON Voltage Drop: 1.5 VDC @ 0.5A
Maximum Current: 0.5A per point / 3.0A per common group
Response Speed: 1ms OFF-to-ON / 1ms ON-to-OFF
Base Power Required: 5V 400 mA max
Programming Framework: Compatible with DirectSOFT programming software v4.0
Status:- Used Excellent Working (As Per Photos)

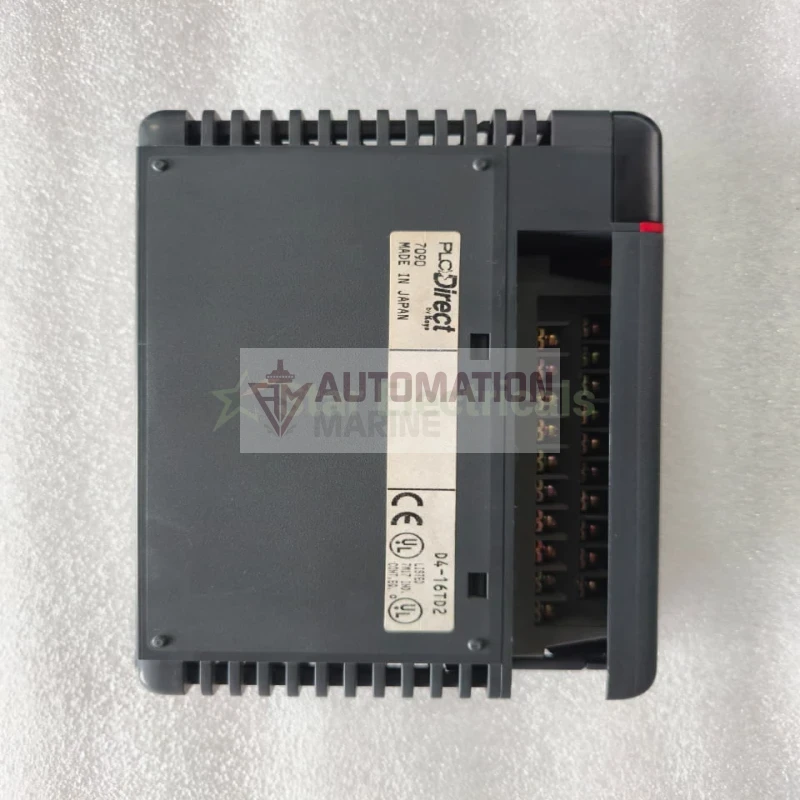

Country of Origin:- Made In Japan
Shipping:- Fast & Safe Worldwide Shipping Available.
| Brand | OTHER |
|---|---|
| Category | MODULE |
Free Shipping
For Indian customers
Secure Payment
100% protected
Export Quality
Authentic & Certified
Fast Delivery
Worldwide shipping
The PLCDirect by Koyo / Automation Direct D4-16TD2 is a professional-grade discrete DC output module built exclusively for the reliable DirectLOGIC DL405 PLC series. This high-efficiency module delivers 16 channels of precise current-sourcing automation control over a nominal voltage of 12-24 VDC.

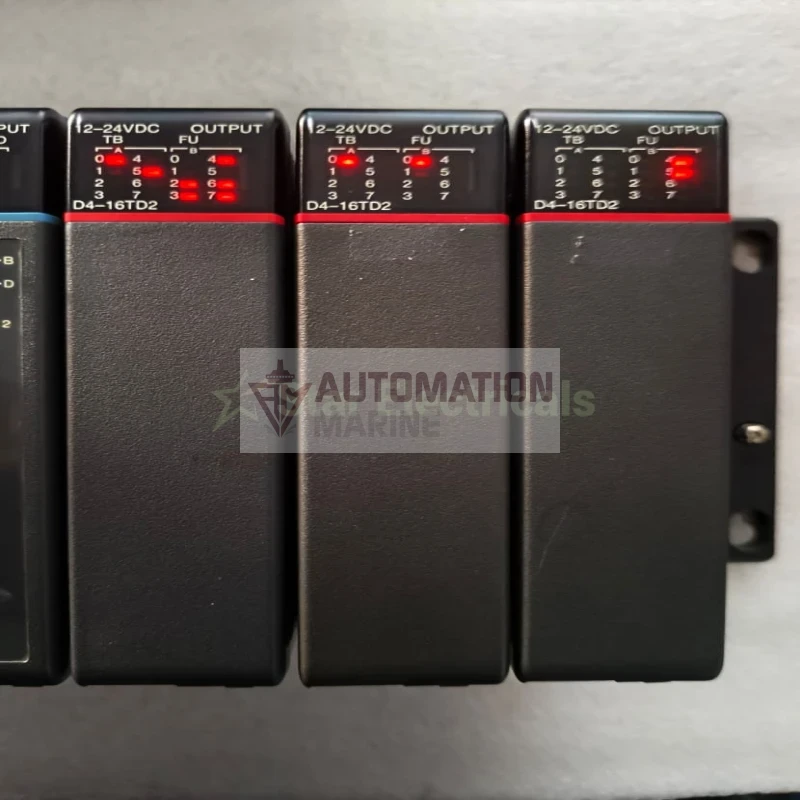

Utilizing a premium NPN Emitter Follower output configuration, it supplies up to 0.5A per standalone channel, maintaining consistent throughput for high-demand industrial actuators, solenoids, and indicators. Designed for modular versatility, its 2 isolated commons isolate output groups to manage electrical noise and crosstalk inside system control panels. To assure rapid installation and zero-hassle replacement, it features a logic-side diagnostic display alongside a standard removable field terminal interface block.
- High Density Configuration: 16-point current-sourcing outputs designed for robust industrial automation installations.
- Dual Isolated Commons: Equipped with 2 isolated output commons (8 points per common) to handle up to 3A per common group seamlessly.
- Industrial Voltage Tolerance: Engineered for steady operation within a 12–24 VDC operating range (10.2–26.4 VDC limit).

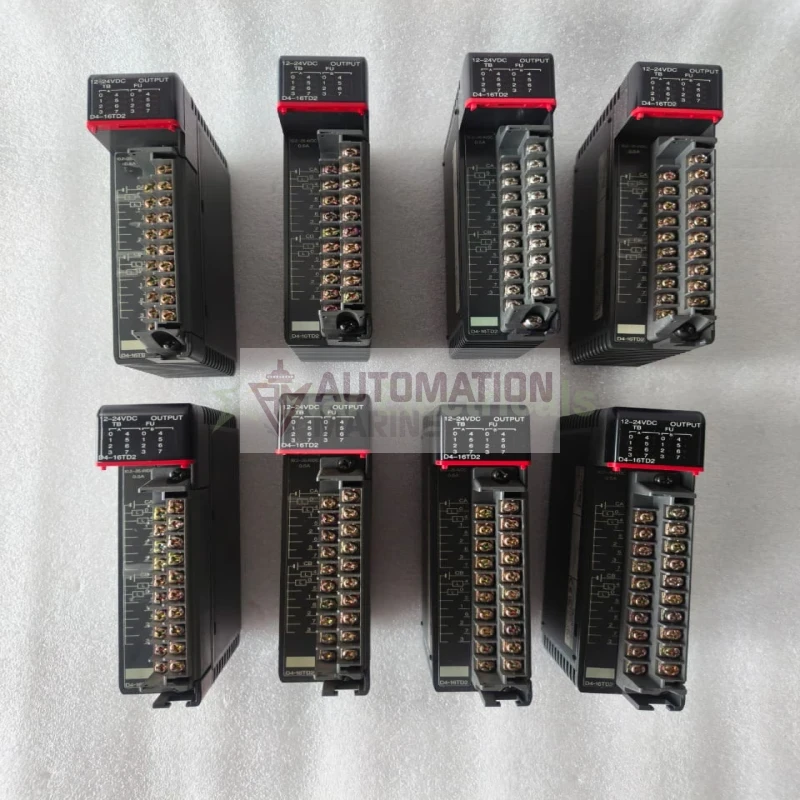

- Removable Terminal Block: Included removable wire terminal blocks allow fast, simplified field-wiring adjustments and fast unit swaps.
- Built-in Overcurrent Fuses: Built with 1 non-replaceable 5A protection fuse per common to safeguard sensitive electronics against overload faults.
