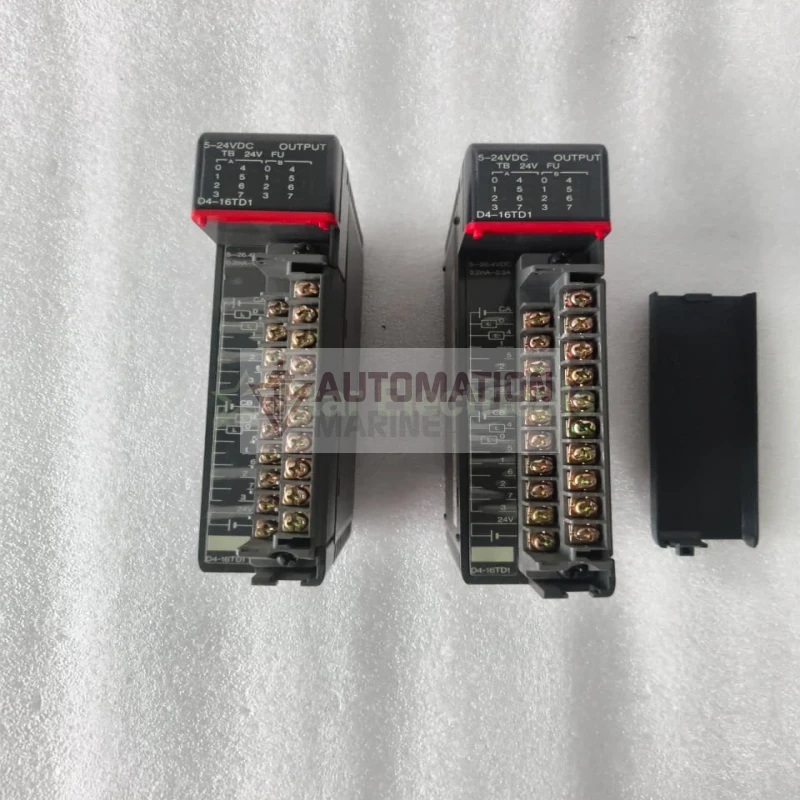

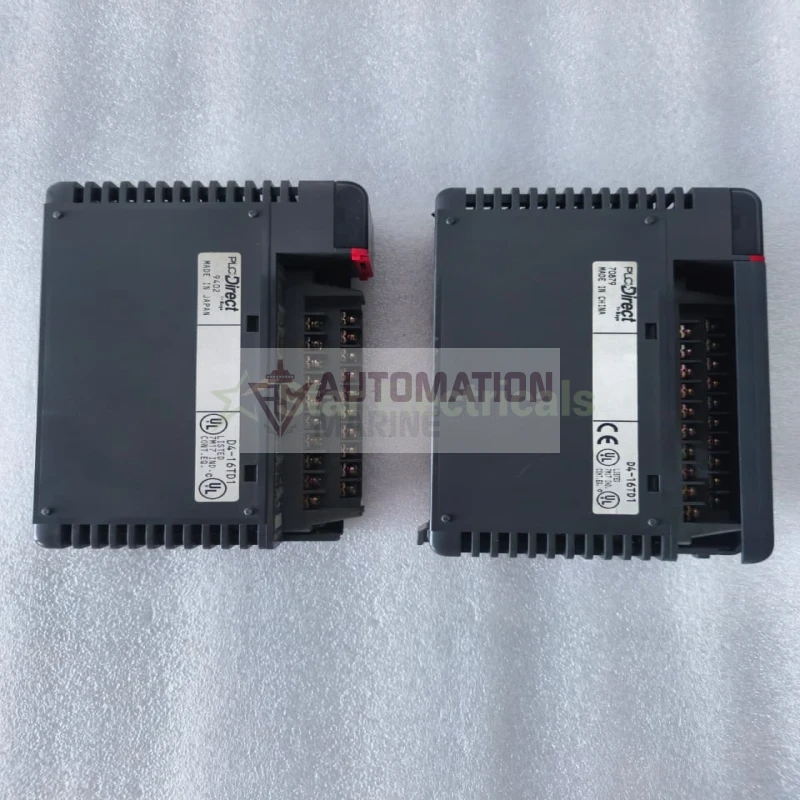

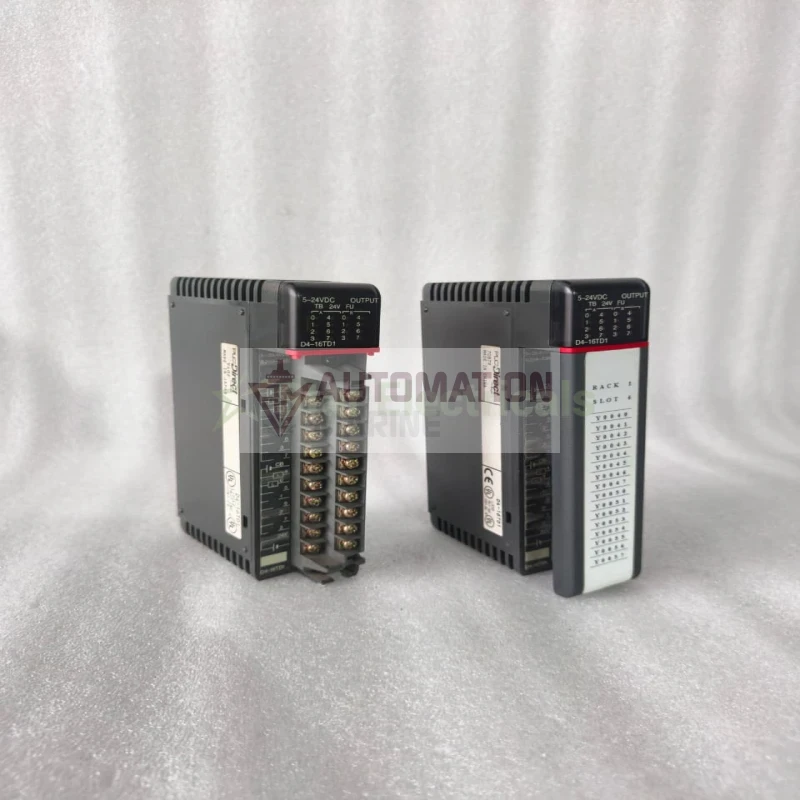

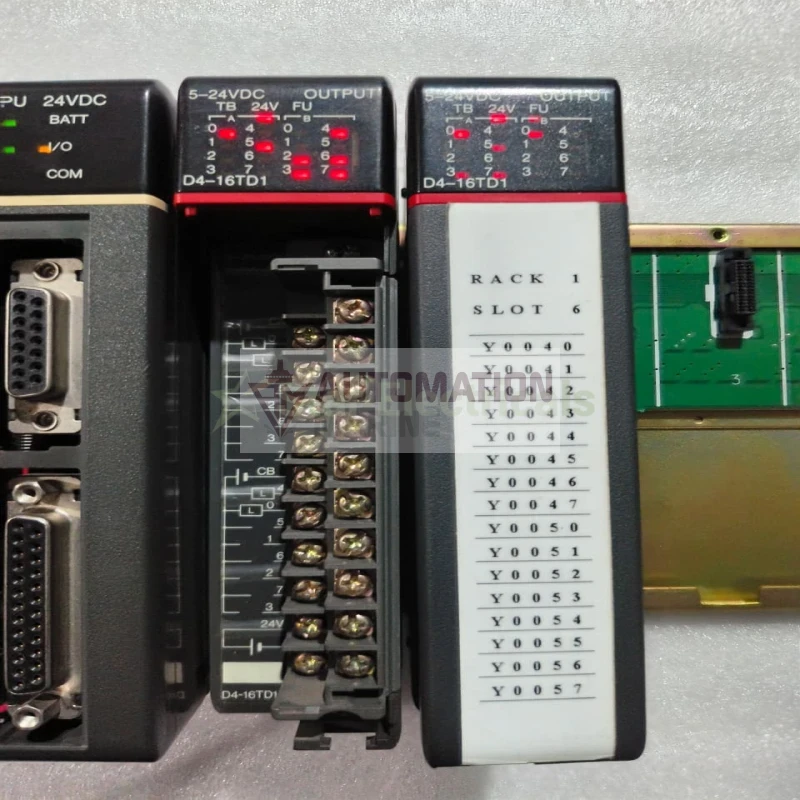

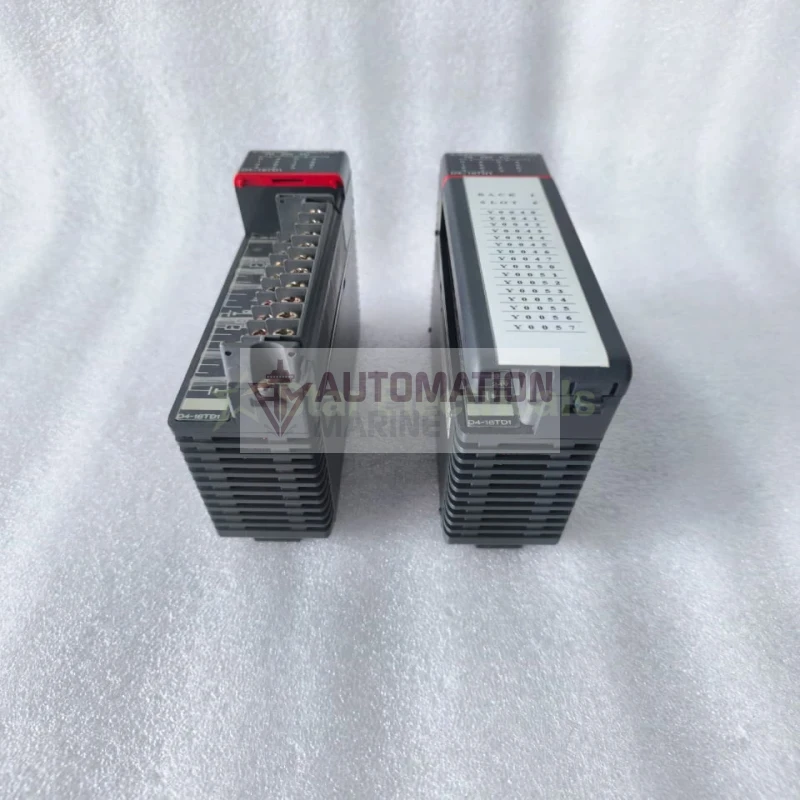

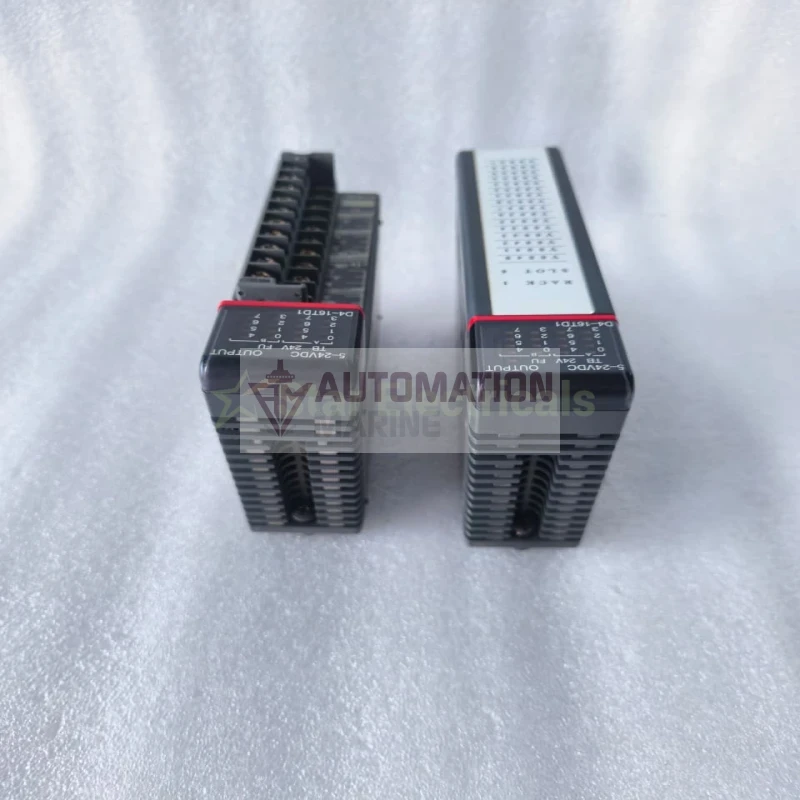

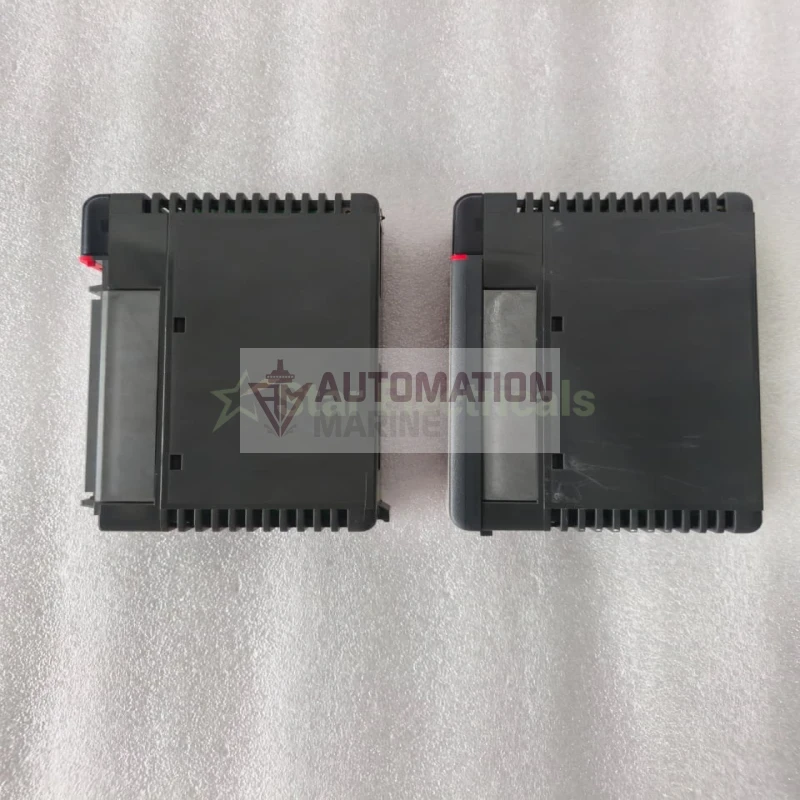

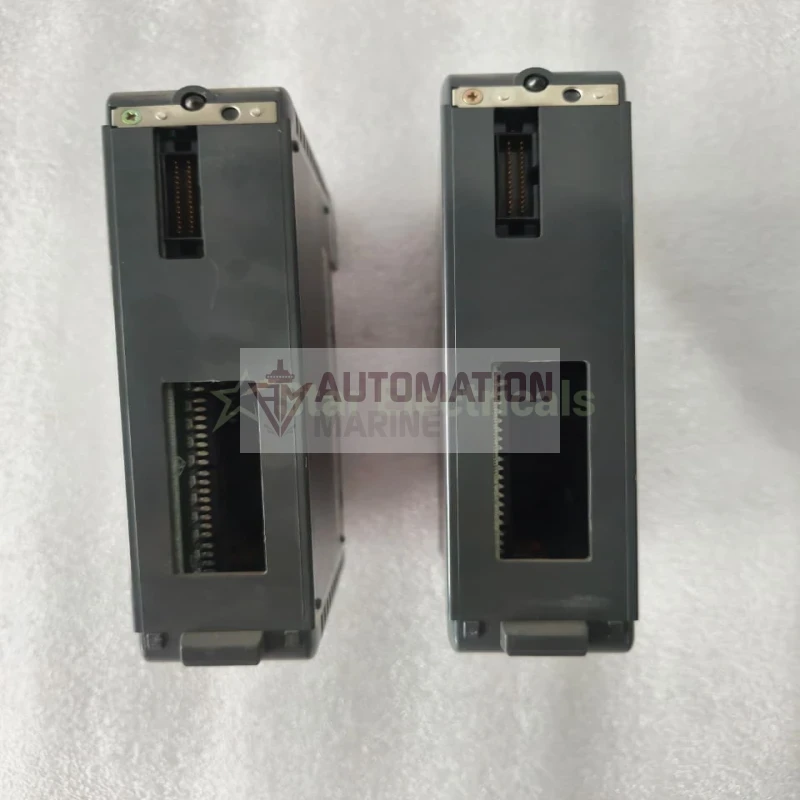

Koyo D4-16TD1 DirectLOGIC DL405 Sinking DC Output Module
Pricing
Contact us for pricing & availability
USED
Specification Details
Brand: Koyo
Part Number: D4-16TD1
PLC Compatibility: DirectLOGIC DL405 Series
Product Name: Sinking DC Output Module
Number of Outputs: 16 (Current Sinking)
Output Type: NPN Open Collector
Operating Voltage Range: 4.5–26.4 VDC (Nominal 5–24 VDC)
Max Current Capacity: 0.5A per point / 3.0A per common
Commons: 2 Internally Connected Commons
Fusing: 1 Built-In 5A Fuse Per Common (Non-replaceable)
Base Power: Required5VDC @ 200 mA maximum
Response Time: 0.5 ms (OFF to ON and ON to OFF)
Termination Type: Removable Screw Terminal Block
Status:- Used Excellent Working (As Per Photos)
Country of Origin:- Made In Japan
Shipping:- Fast & Safe Worldwide Shipping Available.
| Brand | OTHER |
|---|---|
| Category | MODULE |
Free Shipping
For Indian customers
Secure Payment
100% protected
Export Quality
Authentic & Certified
Fast Delivery
Worldwide shipping
The PLCDirect/AutomationDirect D4-16TD1 is a high-reliability discrete DC output module built specifically for the DirectLOGIC DL405 PLC series platform. Engineed to deliver robust performance in heavy-duty factory environments, this module offers 16 sinking outputs divided into two internally connected commons. Utilizing solid-state NPN open collector outputs, it drives small relays,
solenoids, pilot lamps, and electronic actuator signals smoothly without the rapid wear typical of mechanical relays.
Its modular form factor easily seats into any standard DL405 base rack slot, drawing up to 200mA of 5V base power. The module also comes equipped with a removable front terminal connector wiring assembly, allowing technicians to instantly replace or inspect units without complete rewire tasks.
- High-Density Output: Features 16 discrete current-sinking points optimized for small-to-medium-scale industrial automation.
- Wide Voltage Range: Operates efficiently on standard 5–24 VDC control circuits (4.5–26.4 VDC functional range).
- Robust NPN Open Collector Setup: Designed with an NPN Open Collector configuration, offering a sleek 0.5A per point and 3A per common capacity.
- Maintenance-Friendly Design: Equipped with a removable terminal block, speeding up wiring transitions and lowering troubleshooting downtime.
- Integrated Diagnostics: Built-in logic-side LED status indicators provide immediate visual tracking for each individual channel.
