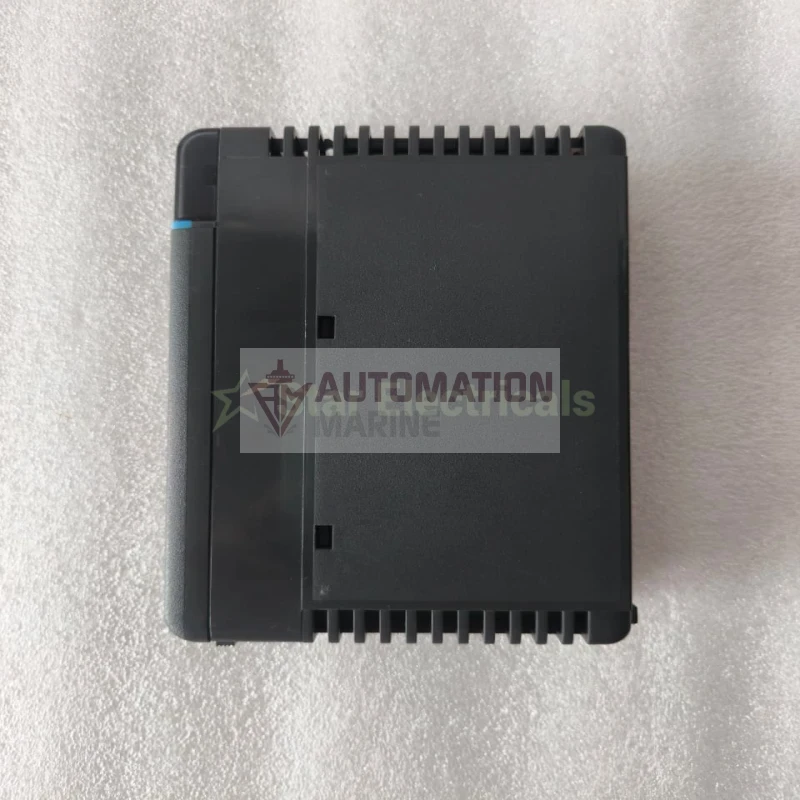

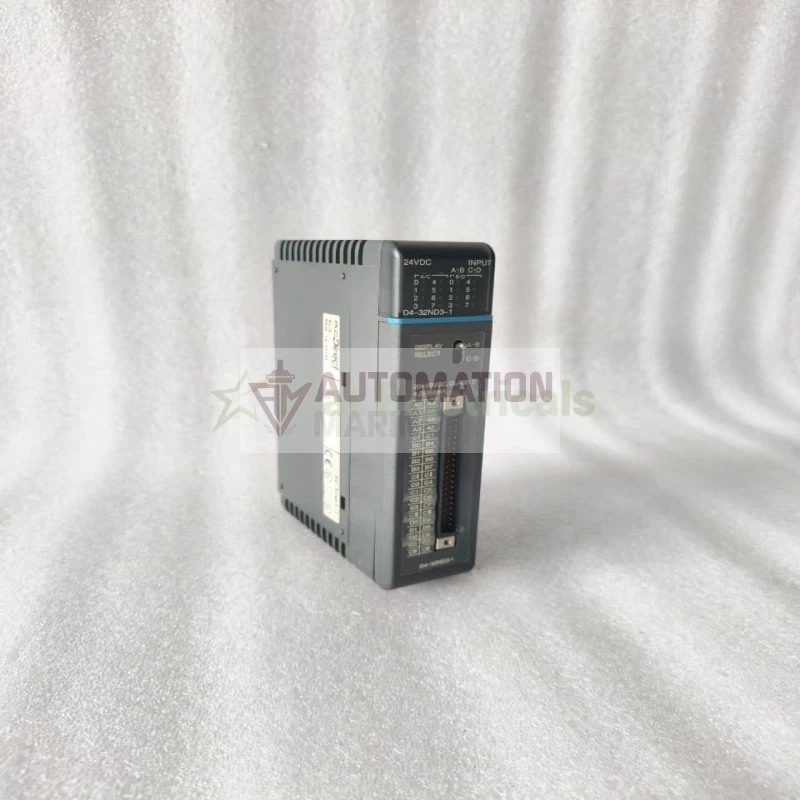

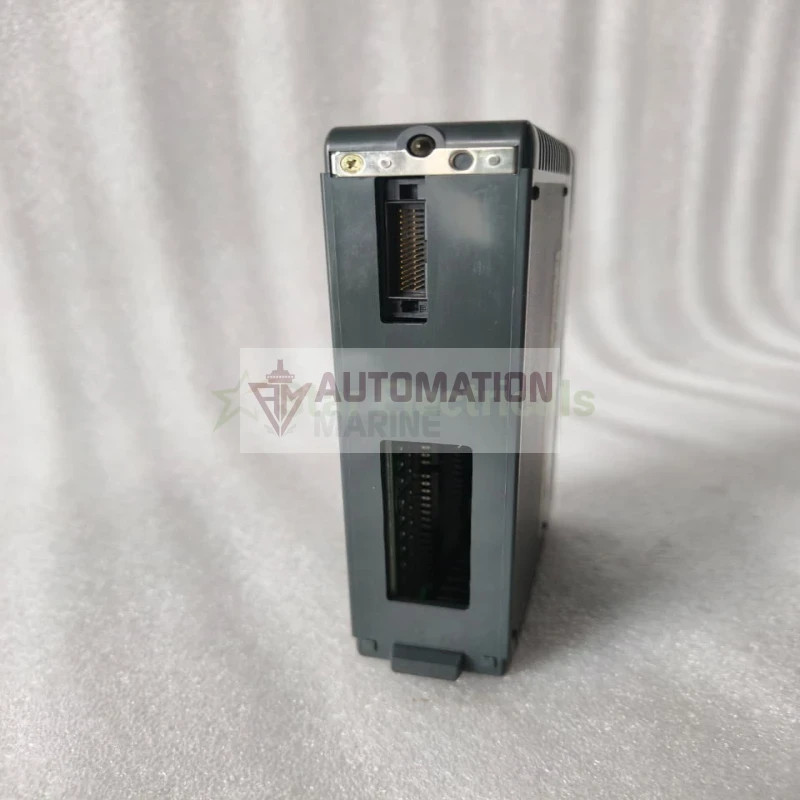

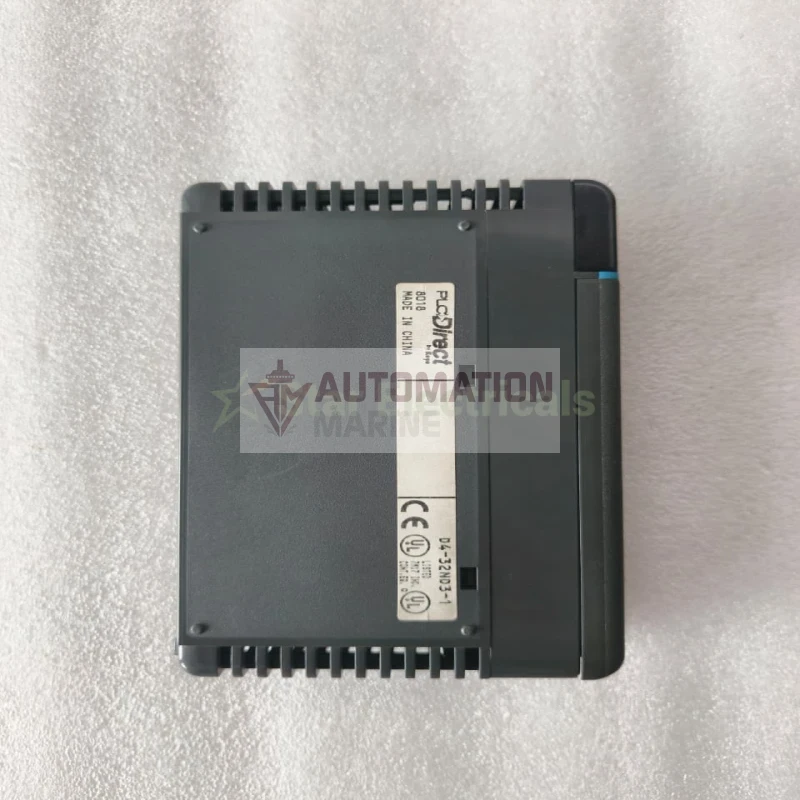

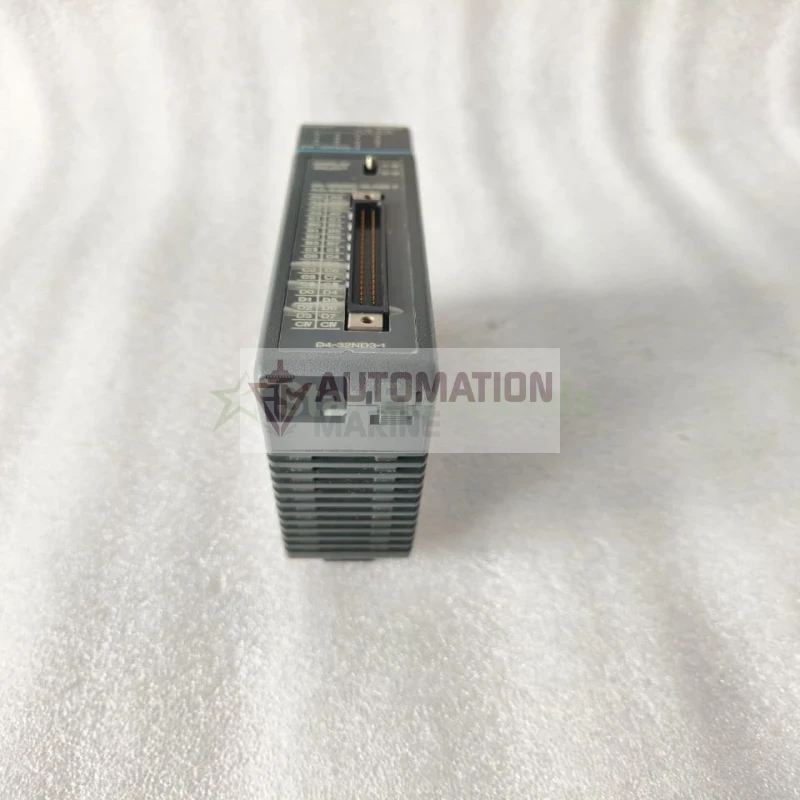

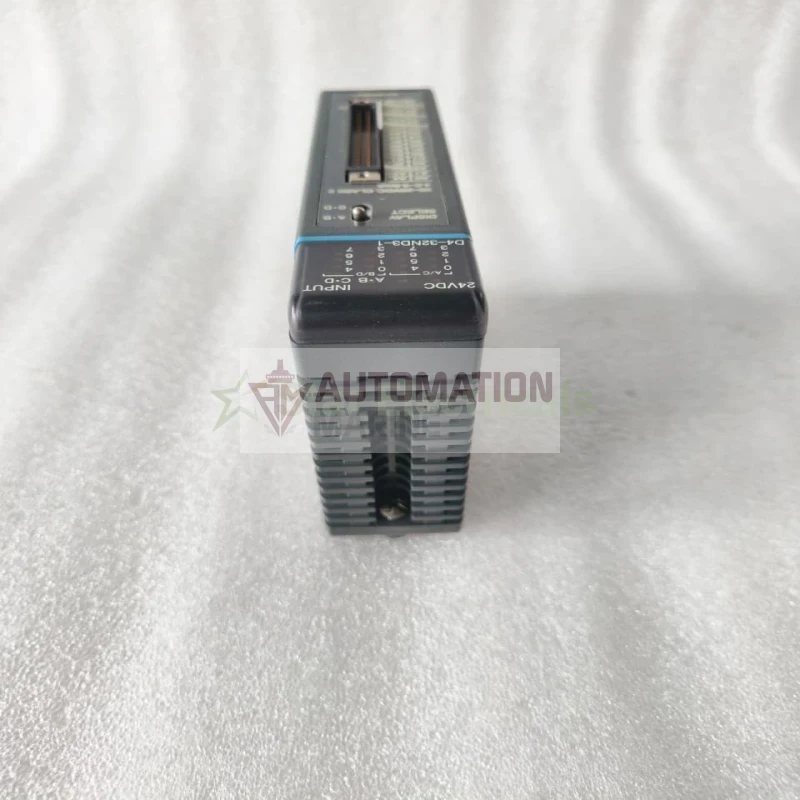

Koyo D4-32ND3-1 DL405 Series Discrete PLC Input Module
Pricing
Contact us for pricing & availability
USED
Specification Details
Brand: Koyo
Part Number: D4-32ND3-1
PLC Family: DirectLOGIC 405 (DL405)
Module Type: Discrete / Digital Input
Input Impedance: 4.8 kΩ
Input Current: 5 mA @ 24 VDC
ON / OFF Voltage Thresholds: ON > 19 VDC | OFF < 10 VDC
Signal Response Time: 2 to 10 ms (OFF to ON and ON to OFF transitions)
Power Budget Consumption: 150 mA maximum from the 5 VDC base
Required Accessories: Requires 1 external 40-pin wire connector
Status:- Used Excellent Working (As Per Photos)
Country of Origin:- Made In CHINA
Shipping:- Fast & Safe Worldwide Shipping Available.
| Brand | OTHER |
|---|---|
| Category | MODULE |
Free Shipping
For Indian customers
Secure Payment
100% protected
Export Quality
Authentic & Certified
Fast Delivery
Worldwide shipping
The PLCDirect by Koyo D4-32ND3-1 is a high-performance, high-density discrete input module engineered specifically for the legacy DirectLOGIC DL405 programmable logic controller (PLC) platform. Utilizing a standard 24 VDC nominal rating, this module allows industrial control lines to transmit telemetry effortlessly from field devices directly back to your central CPU rack.
With 32 channels that function seamlessly as current-sinking or current-sourcing circuits, this unit eliminates the requirement for separate, specialized hardware modules. The integrated 4 isolated commons provide crucial signal separation, ensuring that localized line anomalies do not corrupt the operational data of adjacent modules. Its robust plastic enclosure features standard top and bottom ventilation slats alongside front-facing select toggles, facilitating smooth integration into harsh automated industrial or maritime control layouts.
- High-Density I/O: Features 32 discrete input points to efficiently maximize control panel space within a single module slot.
- Flexible Sinking/Sourcing: Supports both PNP and NPN (sink/source) topologies for universal sensor and device compatibility.
- Isolated Commons: Designed with 4 isolated input commons (8 channels per common) to safeguard against electrical cross-talk and system damage.
- Optimal Operating Range: Built for standard industrial electrical systems, operating safely between 20 and 28 VDC with a peak voltage threshold of 30 VDC.

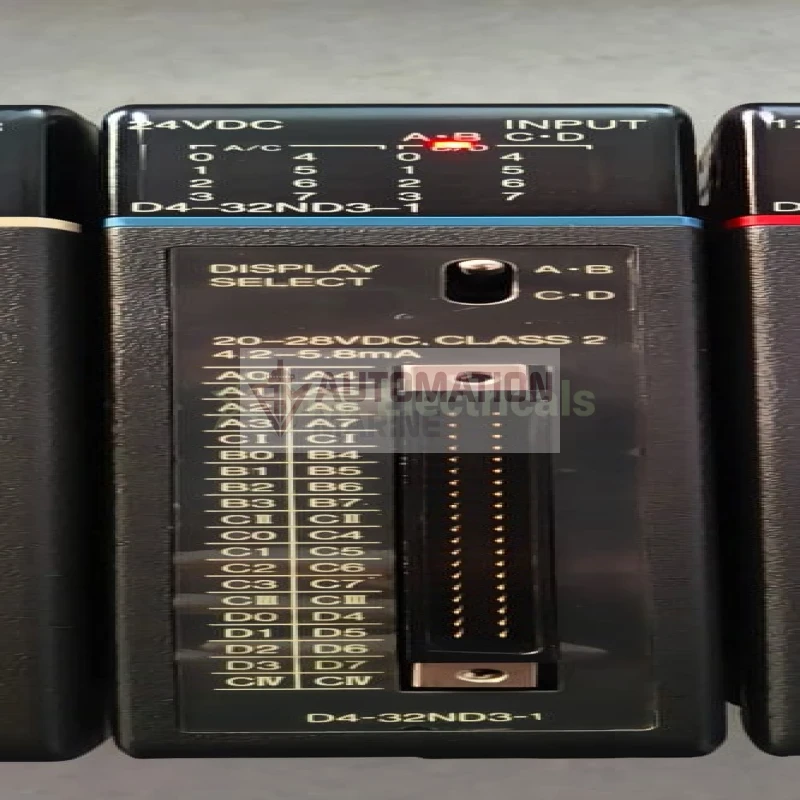

- Real-Time Troubleshooting: Equipped with high-visibility, logic-side LED status indicators for immediate, per-channel diagnostic monitoring.
